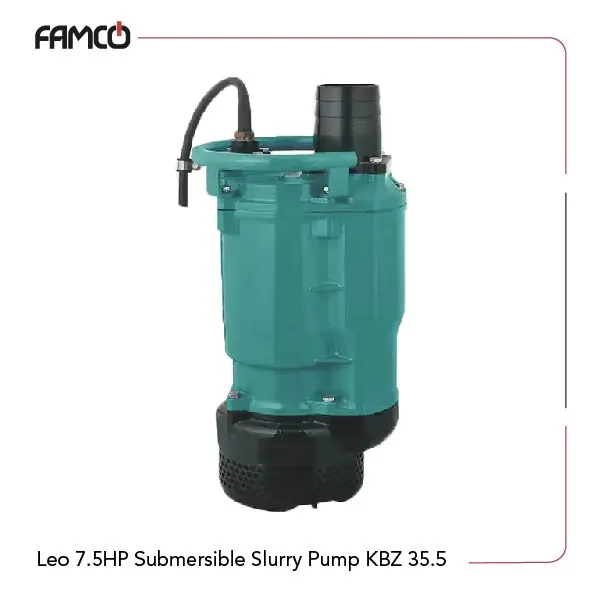

Leo KBZ 35.5 Submersible Slurry Pump Specifications
Leo 7.5HP submersible slurry pump KBZ 35.5 features a powerful construction with a cast iron hose coupling, upper cover, motor body, and pump body, ensuring durability and longevity. The mechanical seal is made of Sic-Sic/Sic-Sic to provide excellent sealing performance. The impeller and inlet plate are crafted from high chrome alloy to make this Leo submersible pump resistant to wear and corrosion. The rated maximum liquid temperature of +40℃ and a maximum immersion depth of 25 meters has turned this pump to an advanced choice for heavy-duty applications. It operates on a 5.5 kW motor, delivering a maximum head of 32 meters and a flow rate of 70 m³/h (1.17 m³/min). The impeller’s passage measured through its performance is 8.5 mm for efficient fluid movement. The winding is made of copper to reach optimal electrical performance, while the insulation class B and protection class IP68 guarantee safety and reliability in various environments.
| Specification | Value |
| Max. liquid temperature | +40℃ |
| Max. Immersion depth | 25 m |
| Insulation class | B |
| Protection class | IP68 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max head | 32 |
| Max Flow rate (m³ /h) | 70 |
| Max Flow rate (l /min) | 1170 |
| Impeller Passage (mm) | 8.5 |
Leo 7.5HP Submersible Slurry Pump KBZ 35.5 Materials
- Hose Coupling: Cast Iron
- Upper Cover: Cast Iron
- Handle: Steel
- Pump Body: Cast Iron
- Mechanical Seal: Sic-Sic/Carbon-Sic(≤ 2.2KW) Sic-Sic/Sic-Sic( ≥ 3.7KW )
- Impeller: High Chrome alloy
- Inlet Plate: Ductile Iron
- Winding: Copper

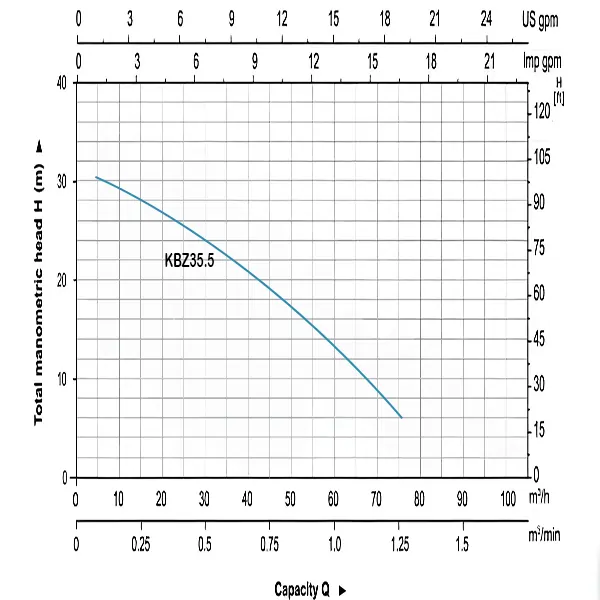

Leo 7.5HP Submersible Slurry Pump KBZ 35.5 Performance Curve
Leo 7.5HP Submersible Slurry Pump KBZ 35.5 Applications
- Industrial water transfer
- Agricultural irrigation systems
- Construction site dewatering
- Deep well pumping
Leo 7.5HP Submersible Slurry Pump KBZ 35.5 Benefits
- Durable cast iron construction for long-lasting use
- High flow rate for efficient water movement
- Suitable for deep immersion applications
- Reliable performance in harsh environments
Leo 7.5HP Submersible Slurry Pump KBZ 35.5 Price List
| No. | Name | Price |
| 1 | Leo KBZ 35.5 Submersible Slurry Pump Price | Contact us |
