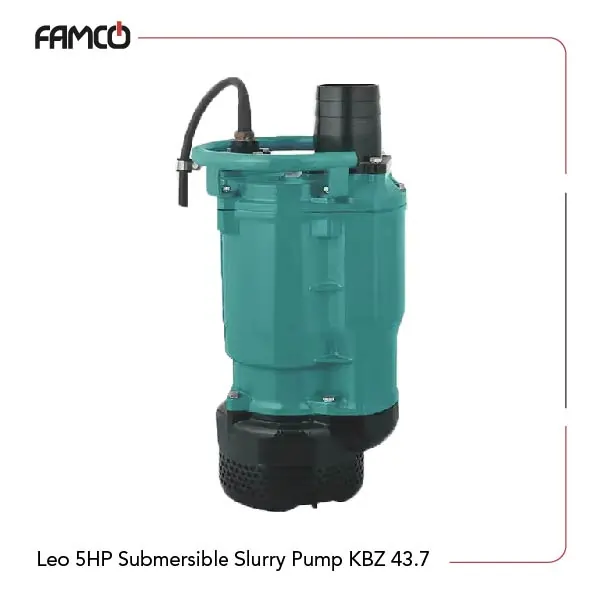

Leo 5HP Submersible Slurry Pump KBZ 43.7 Specifications
Leo 5HP submersible slurry pump KBZ 43.7 is designed with a strong cast iron construction for durability. The hose coupling, upper cover, motor body, and pump body are all made from cast iron to give off strength and longevity. This Leo submersible slurry pump has a mechanical seal that features Sic-Sic/Sic-Sic materials to enhance its sealing capabilities. The impeller and inlet plate are crafted from high chrome alloy for added resistance to wear and corrosion. It can handle a maximum liquid temperature of +40℃ and has an impressive maximum immersion depth of 25 meters. The winding is made of copper for an efficient performance. This leo submersible pump has an insulation class of B and a protection class of IP68, which is suitable for various challenging environments. It operates at a power of 5 kW (3.7 HP) and achieves a maximum head of 18 meters, with a flow rate of up to 90 m³/h (1.5 m³/min). The impeller implemented in its design has a passage measureing up to 8.5 mm for effective fluid movement.
| Specification | Value |
| Max. liquid temperature | +40℃ |
| Max. Immersion depth | 25 m |
| Winding | Copper |
| Insulation class | B |
| Protection class | IP68 |
| Power (kW) | 5 |
| Power (HP) | 3.7 |
| Max head | 18 |
| Max Flow rate (m³ /h) | 90 |
| Max Flow rate (l /min) | 1500 |
| Impeller Passage (mm) | 8.5 |
Leo 5HP Submersible Slurry Pump KBZ 43.7 Materials
- Hose Coupling: Cast Iron
- Upper Cover: Cast Iron
- Handle: Steel
- Mechanical Seal: Sic-Sic/Carbon-Sic(≤ 2.2KW) Sic-Sic/Sic-Sic( ≥ 3.7KW )
- Impeller: High Chrome alloy
- Inlet Plate: Ductile Iron
- Inlet Base: Cast Iron

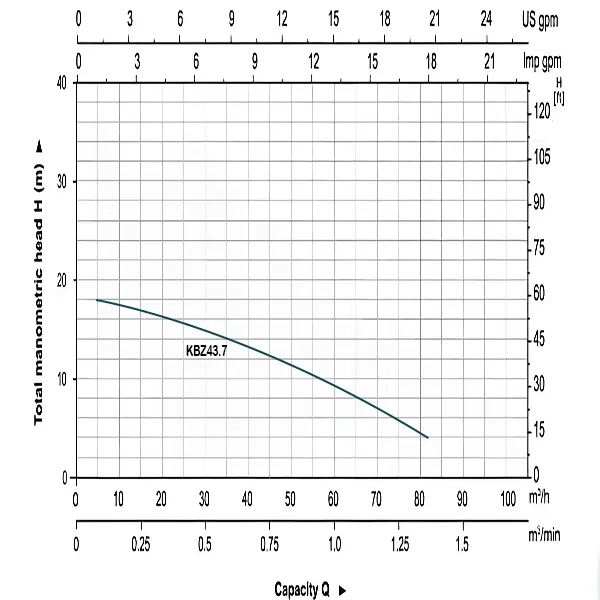

Leo 5HP Submersible Slurry Pump KBZ 43.7 Performance Curve
Leo 5HP Submersible Slurry Pump KBZ 43.7 Applications
- Industrial fluid transfer
- Agricultural irrigation systems
- Construction site dewatering
- Wastewater management
Leo 5HP Submersible Slurry Pump KBZ 43.7 Benefits
- Durable cast iron construction for long-lasting use
- High flow rate for efficient fluid movement
- Versatile applications across various industries
- Excellent sealing and protection against environmental factors
Leo 5HP Submersible Slurry Pump KBZ 43.7 Price List
| No. | Name | Price |
| 1 | Leo 5HP Submersible Slurry Pump KBZ 43.7 Price | Contact us |
