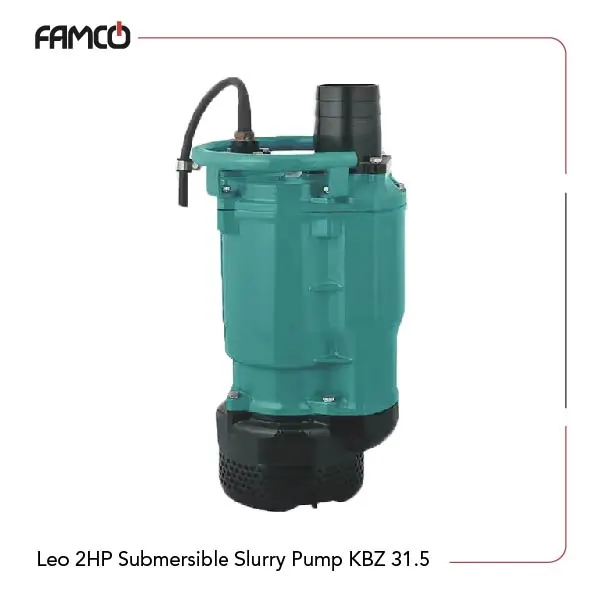

Leo 2HP Submersible Slurry Pump KBZ 31.5 Specifications
This pump features a powerful construction with a cast iron hose coupling, upper cover, motor body, and pump body, ensuring durability and longevity. The product’s handle is made of steel for added strength. The mechanical seal varies based on power, with Sic-Sic/Carbon-Sic for models up to 2.2KW and Sic-Sic/Sic-Sic for those 3.7KW and above. The impeller in this Leo submersible pump is crafted from high chrome alloy, providing excellent performance. The inlet plate is made from ductile iron to draw and add on the overall reliability. It can handle a maximum liquid temperature of +40℃ and has a maximum immersion depth of 25 meters. The winding is copper to guarantee an efficient operation all the way through, while the insulation class is rated B. This pump has a protection class of IP68, indicating that it is designed for wet environments. It operates at a power of 1.5 kW (2 HP), achieving a maximum head of 14.5 meters and a flow rate of 40 m³/h (0.67 m³/min). The impeller passage measures 8.5 mm, allowing for effective fluid movement.
| Specification | Value |
| Max. liquid temperature | +40℃ |
| Max. Immersion depth | 25 m |
| Insulation class | B |
| Protection class | IP68 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max head | 14.5 |
| Max flow (m³ /h) | 40 |
| Max flow (m³ /min) | 0.67 |
| Impeller passage (mm) | 8.5 |
Leo 2HP Submersible Slurry Pump KBZ 31.5 Materials
- Hose Coupling: Cast Iron
- Upper Cover: Cast Iron
- Handle: Steel
- Motor Body: Cast Iron
- Pump Body: Cast Iron
- Mechanical Seal: Sic-Sic/Carbon-Sic(≤ 2.2KW) Sic-Sic/Sic-Sic( ≥ 3.7KW )
- Impeller: High Chrome alloy
- Inlet Plate: Ductile Iron
- Winding: Copper

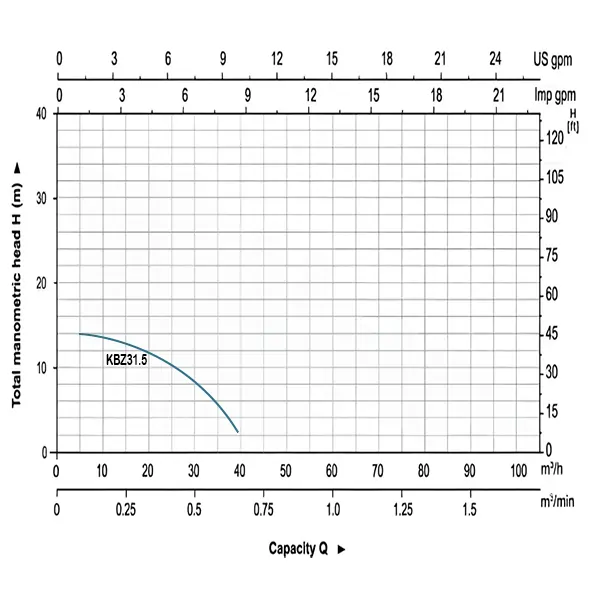

Leo 2HP Submersible Slurry Pump KBZ 31.5 Performance Curve
Leo 2HP Submersible Slurry Pump KBZ 31.5 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Sewage and wastewater management
Leo 2HP Submersible Slurry Pump KBZ 31.5 Benefits
- Durable cast iron construction for longevity
- High flow rate for efficient water movement
- IP68 rating for protection against water ingress
- Versatile applications in various environments
Leo 2HP Submersible Slurry Pump KBZ 31.5 Price List
| No. | Name | Price |
| 1 | Leo 2HP Submersible Slurry Pump KBZ 31.5 Price | Contact us |
