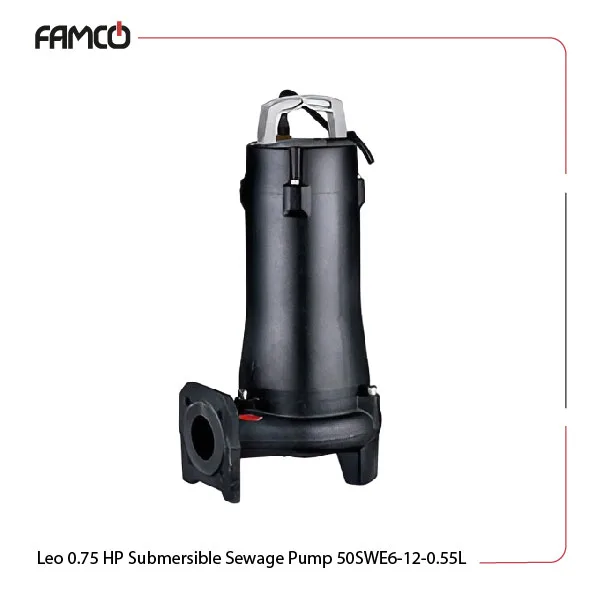

Leo 0.75 HP Submersible Sewage Pump 50SWE6-12-0.55L Specifications
This product is designed for efficient liquid handling with a temperature range of 0-40℃ and a pH value between 4 and 10. Since Leo sewage pumps have a sturdy build and this model is no exception. They can be immersed up to 5 meters deep for various applications. Operating at a frequency of 50Hz, this Leo submersible pump features a two-pole motor with an insulation class of F. The protection class is IPX8, ensuring durability in wet conditions. With a power output of 0.75 HP (0.55 kW), this sewage pump has a flow rate of 19 m3/h and a maximum head of 15 meters. It can handle solids up to 20 mm in diameter. The motor and impeller are made from HT200, while the mechanical seals are constructed from Sic/Carbon for enhanced reliability.
| Specification | Value |
| Liquid temperature | 0-40℃ |
| Liquid PH value | 4 – 10 |
| Max. Immersion depth | 5 m |
| Frequency | 50Hz |
| Pole number | 2 |
| Insulation class | F |
| Protection Class | IPX8 |
| Power (HP) | 0.75 |
| Power (kW) | 0.55 |
| Flow rate (m3/h) | 19 |
| Max. head (m) | 15 |
| Max. solids diameter (mm) | 20 |
Leo 0.75 HP Submersible Sewage Pump 50SWE6-12-0.55L Materials
- Motor body: HT200
- Impeller: HT200
- Upper mechanical seal: Sic/Carbon
- Lower mechanical seal: Sic

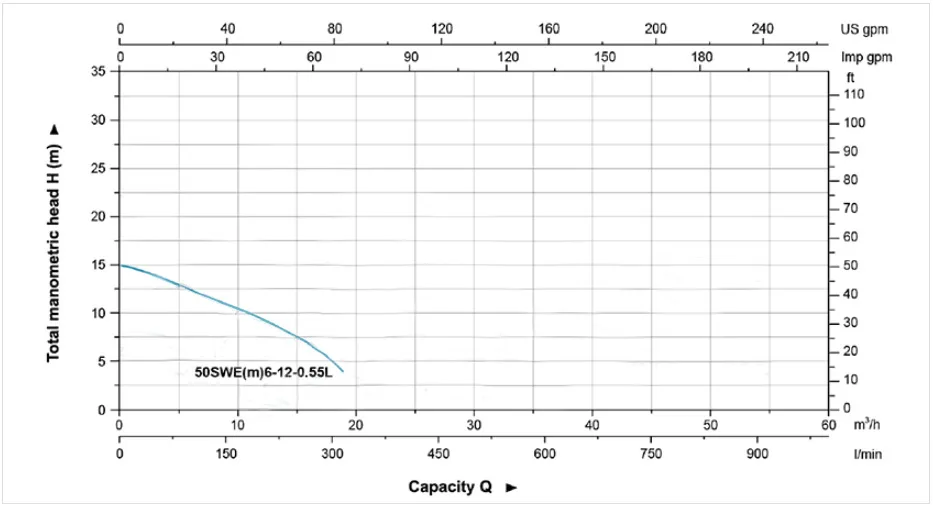

Leo 0.75 HP Submersible Sewage Pump 50SWE6-12-0.55L Performance Curve
Leo 0.75 HP Submersible Sewage Pump 50SWE6-12-0.55L Applications
- Industrial liquid transfer
- Agricultural irrigation systems
- Floodwater drainage
- Wastewater management
Leo 0.75 HP Submersible Sewage Pump 50SWE6-12-0.55L Benefits
- High efficiency with a flow rate of 19 m3/h
- Durable construction with HT200 materials
- Can handle solids up to 20 mm in diameter
- Reliable performance in wet conditions with IPX8 protection
Leo 0.75 HP Submersible Sewage Pump 50SWE6-12-0.55L Price List
| No. | Name | Price |
| 1 | Leo 0.75 HP Submersible Sewage Pump 50SWE6-12-0.55L Price | Contact us |
