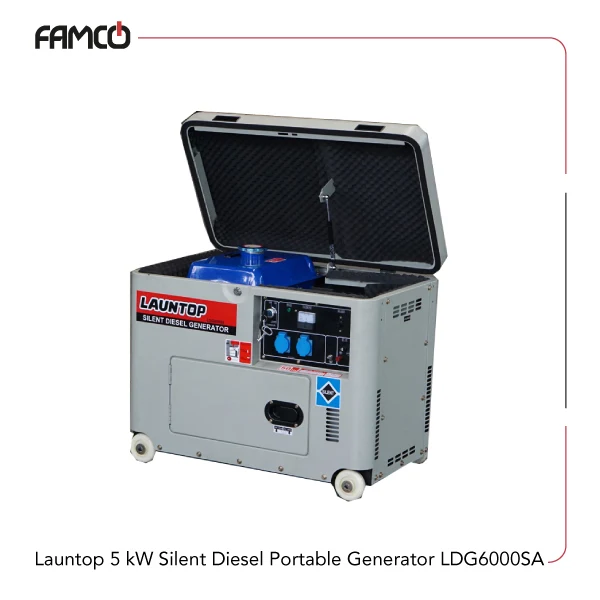

Launtop 5 kW Silent Diesel Portable Generator LDG6000SA

5 kW (6.7 HP)

Single-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Launtop 5 kW Silent Diesel Portable Generator LDG6000SA

Launtop 5 kW silent diesel portable generator LDG6000SA brings confident energy wherever it’s needed. Designed to deliver a steady flow of power across 110 to 240 volts, it offers both 50 and 60 Hz options to match various requirements. With a rated output of up to 5.0 kW, it stands ready to keep tools, lights, or appliances running smoothly. Its 12V DC output adds convenient versatility for smaller needs, while the pure power factor of 1.0 ensures every bit of energy works efficiently.

Related Products

Launtop 5 kW Silent Diesel Portable Generator LDG6000SA Specifications

Launtop 5 kW silent diesel portable generator LDG6000SA is a versatile power source designed for all kinds of situations. It’s powered by a 418 cc LA186FAG engine and features an electric start, so getting it up and running is quick and easy. The generator can supply up to 5.5 kW of AC power at both 50 and 60 Hz, with a steady output of 4.5 kW at 50 Hz and 5.0 kW at 60 Hz. It supports voltages from 110 to 240V, making it suitable for a wide range of tools and devices. For DC output, this Launtop diesel portable generator delivers 12V at 8.3A, with a power factor of 1.0 to make the most of the energy it produces. The 16-liter fuel tank allows for extended use, consuming around 7.8 liters of fuel per hour at 50 Hz and 6.2 liters at 60 Hz. Noise levels stay around 70 dBA from 7 meters away. It measures 900 mm in length, 520 mm in width, and 700 mm in height. The engine operates at 3000 rpm for 50 Hz and 3600 rpm for 60 Hz, supported by a 1.65-liter oil capacity to keep it running smoothly. Overall, the LDG6000S is a practical choice for powering equipment on worksites, lighting up outdoor gatherings, or serving as a steady backup power option when needed.

Launtop 5 kW Silent Diesel Portable Generator LDG6000SA

Specification Value
Model LDG6000S
Frequency (Hz) 50/60
Max. AC output (kW) 5.5 (50 Hz)/ 5.5 (60 Hz)
Rated AC output (kW) 4.5 (50 Hz)/ 5.0 (60 Hz)
Voltage (V) 110-240
D.C. output (V-A) 12/8.3
Power Factor 1.0
Engine Model LA186FAG
Engine Starting System Electric
Noise level (dBA/7m) 70
Fuel Tank Capacity (L) 16
Dimensions (LxWxH) (mm) 900*520*700
Net Weight (kg) 150
Displacement (cc) 418
Engine Speed (rpm) 3000 (50 Hz)/3600 (60 Hz)
Lube oil capacity (L) 1.65
Operational capacity (L) 7.8 (50 Hz) / 6.2 (60 Hz)

Launtop 5 kW Silent Diesel Portable Generator LDG6000SA Applications

  • Construction sites for powering tools and equipment
  • Outdoor events and festivals
  • Emergency backup power for homes and businesses
  • Camping and outdoor recreational activities



Launtop 5 kW Silent Diesel Portable Generator LDG6000SA Benefits

  • Easy electric start for quick operation
  • High power output suitable for multiple devices
  • Long operational capacity with a 16-liter fuel tank
  • Relatively quiet operation at 70 dBA



Launtop 5 kW Silent Diesel Portable Generator LDG6000SA Price List

No. Name Price
1 Launtop 5 kW Silent Diesel Portable Generator LDG6000SA Price Contact us
