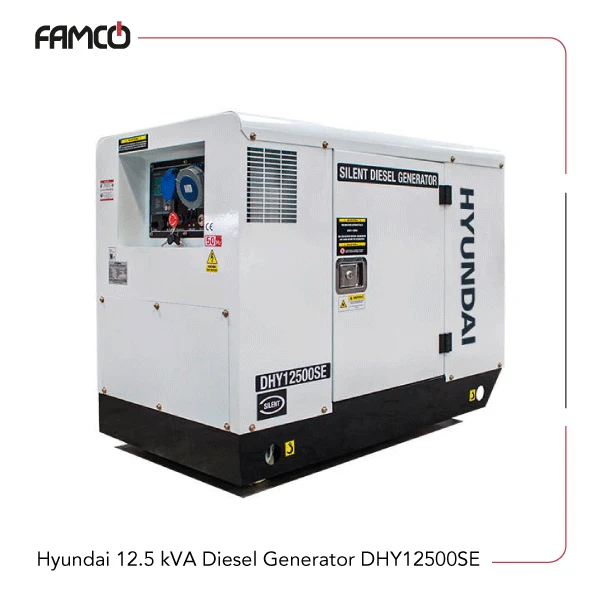

Hyundai 12.5 kVA Diesel Generator DHY12500SE Specifications
Hyundai 12.5 kVA diesel generator DHY12500SE is a diesel generator built to provide steady energy supply. It uses a Hyundai HY290F engine with 954 cc displacement and 2 cylinders, delivering 20 horsepower. The generator runs at a rated speed of 3000 RPM and produces a single-phase output of 230V. Its rated power is 10 kW, with a maximum standby power of 11 kW, suitable for industrial use and backup power needs. The fuel tank holds 50 liters, allowing up to 12 hours of operation at full load. A mechanical fuel regulation system and forced air-cooling system keep the engine working efficiently. This Hyundai diesel generator comes with a brushed alternator with AVR voltage regulation, providing steady power. The control panel is model HJ-103A and includes breakers, with compatibility for ATS/MTS systems. The unit weighs 270 kg net and 290 kg gross and comes with a wheel kit for easier movement. The battery has a capacity of 45 Ah, and the generator measures 1175 x 695 x 1050 mm.
| Specification | Value |
| Model | DHY12500SE |
| Rated/Prime power (kVA) | 12.5 |
| Rated/Prime power (kW) | 10 |
| Max/Standby power (kVA) | 13.75 |
| Max/Standby power (kW) | 11 |
| Phase | Single |
| Voltage | 230 |
| Connection Method(s) | Sockets – 1 x 32A, 1 x 63A |
| Rated Speed (RPM) | 3000 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 47.83/43.48 |
| Power Factor (Cosφ) | 1 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 50 |
| Runtime (Hours) @ 100% Load | 12 |
| Noise Level @ 1m 75% load (dB) | 81.5 |
| Noise Level @ 7m 75% load (dB) | 70 |
| Hyundai Diesel Engine Model | HY290F |
| Power Output (hp) | 20 |
| Engine Displacement (CC) | 954 |
| No. of Cylinders | 2 |
| Recommended Oil Type | 15w40 / 10w40 |
| Oil Capacity (Litres) | 3 |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Mechanical |
| Cooling system | Forced Air-Cooled |
| Breakers | Yes |
| Alternator: Type | Brushed |
| Voltage Regulation | AVR |
| Net Weight (kg) | 270 |
| Gross Weight (kg) | 290 |
| Wheel Kit | Yes |
| Dimensions L x W x H (mm) | 1175 x 695 x 1050 |
| Battery (Ah) | 45 |
| ATS / MTS Compatible | Yes |
| Control Panel | HJ-103A |
Hyundai 12.5 kVA Diesel Generator DHY12500SE Applications
- Industrial backup power supply
- Construction site power source
- Large event power support
- Emergency power for facilities
Hyundai 12.5 kVA Diesel Generator DHY12500SE Benefits
- Reliable Hyundai engine ensures durability
- Easy mobility with wheel kit included
- Stable power output with AVR regulation
- Long runtime of up to 12 hours at full load
