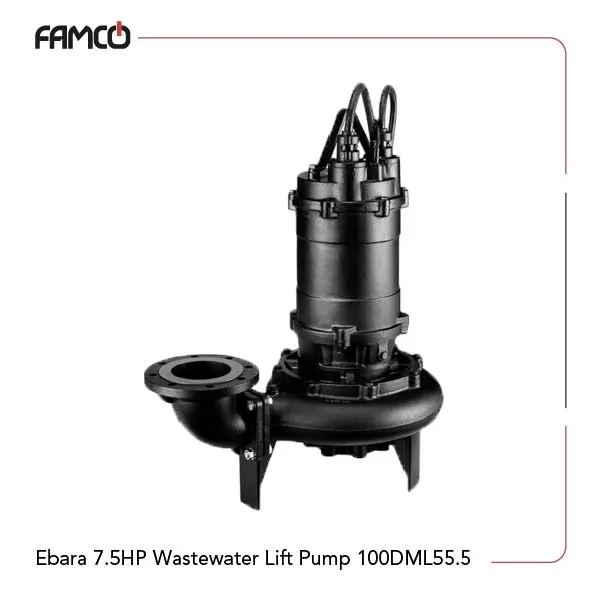

Ebara 7.5HP Wastewater Lift Pump 100DML55.5 Specifications
Ebara 7.5HP wastewater lift pump 100DML55.5 is designed to handle dirty liquids with solids up to 76 mm in size. This series of Ebara pumps operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump runs on a three-phase power supply of 380- 415V with four poles, spinning at approximately 1450 RPM. This Ebara sewage pump features an insulation class F for safety and durability, and an IP68 protection degree. The motor delivers 5.5 kW (7.5 HP) of power while pumping up to 144 cubic meters per hour with a maximum head of 22 meters. The impellers are made of cast iron to add strength and longevity. The mechanical seals are composed of SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side, which provides much-needed sealing against leaks and contamination. This pump is ideal for sewage and wastewater applications, especially where solids are present, and it is built to withstand demanding conditions with high efficiency and durability.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 76 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. flow rate (m3/h) | 144 |
| Max. head (m) | 8.5-22.0 |
Ebara 7.5HP Wastewater Lift Pump 100DML55.5 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR
Ebara 7.5HP Wastewater Lift Pump 100DML55.5 Technical Data
| l/min | 0 | 500 | 1000 | 1300 | 1600 | 1900 | 2200 | 2400 |
| M3/h | 0 | 30 | 60 | 78 | 96 | 114 | 132 | 144 |
| Head (m) | 22.0 | 17.9 | 14.9 | 13.4 | 11.9 | 10.6 | 9.3 | 8.5 |

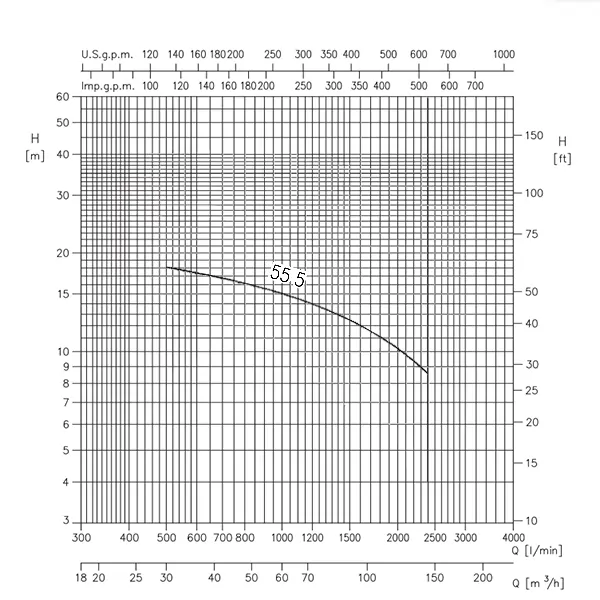

Ebara 7.5HP Wastewater Lift Pump 100DML55.5 Performance Curve
Ebara 7.5HP Wastewater Lift Pump 100DML55.5 Applications
- Sewage and wastewater management
- Industrial waste pumping
- Drainage systems in construction sites
- Flood control and water transfer
Ebara 7.5HP Wastewater Lift Pump 100DML55.5 Benefits
- Handles solids up to 76 mm, suitable for complex waste
- High durability with cast iron impellers and sealed components
- Fully protected against dust and water ingress (IP68)
- Efficient performance with a flow rate of 144 m3/h and high head capacity
Ebara 7.5HP Wastewater Lift Pump 100DML55.5 Price List
| No. | Name | Price |
| 1 | Ebara 7.5HP Wastewater Lift Pump 100DML55.5 Price | Contact us |
