Ebara 5HP Wastewater Lift Pump 100DML53.7 Specifications
This sewage pump is designed to handle wastewater with a maximum temperature of 40°C. This line of Ebara pumps can pass solids up to 76mm in size and is suitable for submersion up to 7 meters deep. This Ebara sewage pump operates on a three-phase power supply of 380-415V with four poles, running at approximately 1450 RPM. It features an insulation class F and an IP68 protection degree, making it highly resistant to dust and water. The pump’s power output is 3.7 kW (5 HP), capable of moving up to 144 cubic meters of liquid per hour and generating a maximum head of 17.9 meters. The impellers are made of durable cast iron, which makes this Ebara pump more wear-resistant. The mechanical seals are composed of SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side to prevent leaks in harsh environments.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 76 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | ≈1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 3.7 |
| Power (HP) | 5 |
| Max. flow rate (m3/h) | 144 |
| Max. head (m) | 4.0-17.9 |
Ebara 5HP Wastewater Lift Pump 100DML53.7 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR
Ebara 5HP Wastewater Lift Pump 100DML53.7 Technical Data
| l/min | 0 | 500 | 1000 | 1300 | 1600 | 1900 | 2200 | 2400 |
| M3/h | 0 | 30 | 60 | 78 | 96 | 114 | 132 | 144 |
| Head (m) | 17.9 | 13.5 | 10.7 | 9.3 | 7.9 | 6.5 | 5.0 | 4.0 |

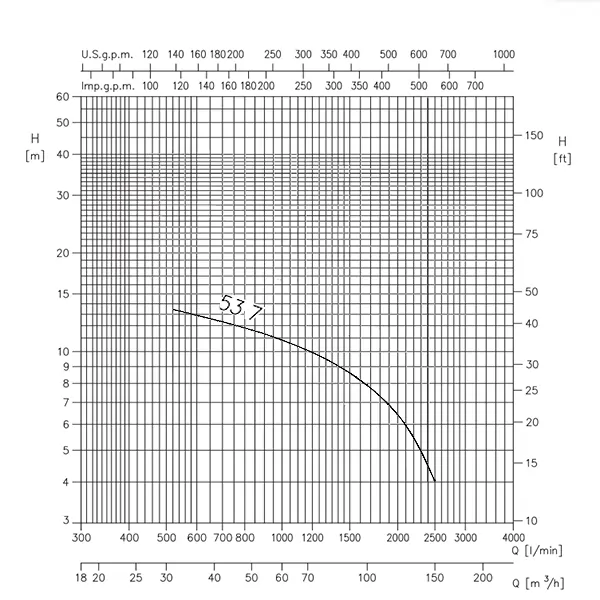

Ebara 5HP Wastewater Lift Pump 100DML53.7 Performance Curve
Ebara 5HP Wastewater Lift Pump 100DML53.7 Applications
- Municipal sewage treatment
- Industrial wastewater pumping
- Building drainage systems
- Flood control and drainage
Ebara 5HP Wastewater Lift Pump 100DML53.7 Benefits
- High durability with cast iron impellers
- Reliable sealing with advanced mechanical seals
- Suitable for solids up to 76mm
- Resistant to dust and water with IP68 protection
Ebara 5HP Wastewater Lift Pump 100DML53.7 Price List
| No. | Name | Price |
| 1 | Ebara 5HP Wastewater Lift Pump 100DML53.7 Price | Contact us |
