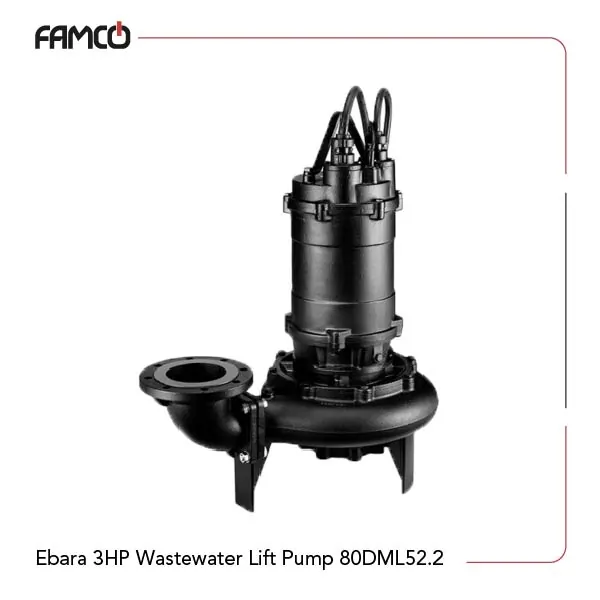

Ebara 3HP Wastewater Lift Pump 80DML52.2 Specifications
Ebara 3HP wastewater lift pump 80DML52.2 is designed to handle wastewater with a maximum temperature of 40°C. This Ebara pump can process solids up to 76mm in size and is suitable for applications requiring an immersion depth of up to 7 meters. The pump operates on a three-phase power supply of 380-415V and features a 4-pole motor running at approximately 1450 RPM. This Ebara sewage pump has an insulation class F and an IP68 protection degree, making it highly resistant to dust and water ingress. The pump’s power output is 2.2 kW (3 HP), capable of delivering a maximum flow rate of 96 cubic meters per hour and a head ranging from 4 to 13.1 meters. The impellers are made of durable cast iron, and the mechanical seals are composed of SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side, ensuring reliable sealing and longevity in tough environments.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 76 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | ≈1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Max. flow rate (m3/h) | 96 |
| Max. head (m) | 4-13.1 |
Ebara 3HP Wastewater Lift Pump 80DML52.2 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR
Ebara 3HP Wastewater Lift Pump 80DML52.2 Technical Data
| l/min | 0 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 |
| M3/h | 0 | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 |
| Head (m) | 13.1 | 11.2 | 9.6 | 8.2 | 7.1 | 6.2 | 5.5 | 4.9 | 4 |

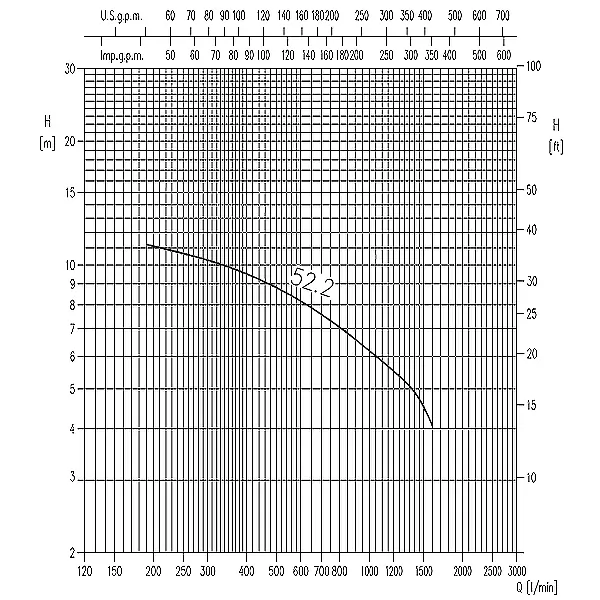

Ebara 3HP Wastewater Lift Pump 80DML52.2 Performance Curve
Ebara 3HP Wastewater Lift Pump 80DML52.2 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Flood control and drainage systems
- Building sewage systems
Ebara 3HP Wastewater Lift Pump 80DML52.2 Benefits
- High durability with cast iron impellers
- Reliable sealing for long-term use
- Suitable for solids up to 76mm
- Waterproof and dustproof IP68 protection
Ebara 3HP Wastewater Lift Pump 80DML52.2 Price List
| No. | Name | Price |
| 1 | Ebara 3HP Wastewater Lift Pump 80DML52.2 Price | Contact us |
