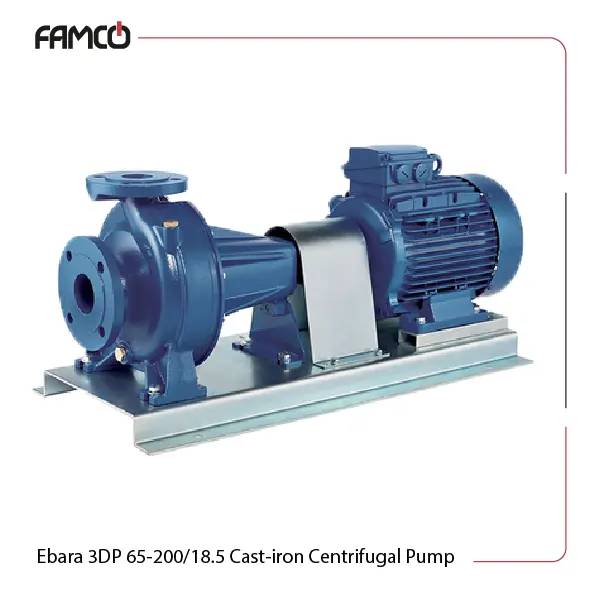

Ebara 3DP 65-200/18.5 Cast-iron Centrifugal Pump

Overview of Ebara 3DP 65-200/18.5 Cast-iron Centrifugal Pump

The Ebara 3DP 65-200/18.5 is a cast-iron centrifugal pump designed for industrial and commercial applications. It’s part of Ebara’s larger 3D series, known for its standardized design and robust construction. The 3DP 65-200/18.5 utilizes cast iron for its body, making it durable and able to handle challenging environments.

This pump features a back pull-out design, a convenient feature that allows for easy maintenance without disassembling the piping system. The motor, coupling, bracket, and impeller can all be removed through the back of the pump for servicing or replacement. Additionally, the 3DP 65-200/18.5 offers versatility with its ability to accommodate various mechanical seals based on the specific application’s needs. This allows the pump to handle a wider range of fluids and temperatures.

Overall, the Ebara 3DP 65-200/18.5 is a reliable and adaptable centrifugal pump constructed with industrial use in mind. Its cast-iron build, back pull-out design, and customizable seal options make it a suitable choice for various pumping tasks.

You can check the specifications of Ebara 3DP 65-200/15 Cast-iron Centrifugal Pump on this page.

How does Ebara 3DP 65-200/18.5 Cast-iron Centrifugal Pump work?

The Ebara 3DP 65-200/18.5 cast-iron centrifugal pump operates through a simple yet effective principle. Imagine a spinning bucket of water – the faster you spin it, the harder the water tries to escape outwards. This is essentially what happens inside the pump.

1. Motorized Impeller: Electricity energizes the motor, causing a connected shaft and impeller to spin rapidly inside the pump housing.
2. Centrifugal Force: As the impeller spins, it pushes on the liquid entering the pump. This creates centrifugal force, flinging the liquid outwards towards the pump’s edges.
3. Pressure Boost and Discharge: The pump casing is designed to channel this high-velocity liquid through a gradually narrowing chamber. This squeezing action converts the liquid’s speed into increased pressure. The pressurized liquid then exits the pump through the outlet for its designated purpose.

Exclusive features and benefits of Ebara 3DP 65-200/18.5 Cast-iron Centrifugal Pump

The Ebara 3DP 65-200/18.5 Cast-iron Centrifugal Pump, part of the 3D series, boasts a host of unique features and advantages:

• Robust Build: Constructed with cast iron EN-GJL-250-EN 1561, the pump casing promises durability and a long lifespan.
• Energy Efficiency: The pump’s design prioritizes high efficiency, leading to potential energy savings.
• Stainless Steel Impeller: The impeller, crafted from AISI 304 and AISI 316 steel, resists corrosion and delivers peak performance.
• Back Pull-out Design: This feature allows for the removal of the motor, coupling, bracket, and impeller without disturbing the pump body or piping, simplifying maintenance and repair tasks.
• Adaptable Mechanical Seals: The pump can accommodate various types of mechanical seals, enabling the use of special materials. This flexibility allows the pump to operate under diverse conditions, such as different liquid types or temperatures.
• Broad Application Scope: The pump is versatile and can be used in heating and air conditioning systems, water supply for civil, agricultural, and industrial plants, pressurization, firefighting systems, industrial liquid handling systems, farm irrigation, sports facilities, and washing systems.
• High-Efficiency Motors: The pump comes with high-efficiency IE2 motors starting from 0.75kW and IE3 motors starting from 7.5kW up to 22kW.
• Insulation and Protection: The pump features insulation class F (B for high temperatures) and protection degree IP 55.

Ebara 3DP 65-200/18.5 Cast-iron Centrifugal Pump installation and usage

Installing the Ebara 3DP 65-200/18.5 Cast-iron Centrifugal Pump involves several key steps to ensure proper setup and operation. Here’s a step-by-step guide:

1. Preparation and Site Inspection: Begin by ensuring the installation site is suitable, with adequate space around the pump for maintenance access. Verify that the foundation is stable and level to support the pump’s weight. Inspect the pump and its components for any damage during transit. Position the pump close to the fluid source, ensuring proper alignment with suction and discharge pipes according to the manufacturer’s specifications.
2. Installation Process: Start by connecting the suction and discharge pipes to the pump using appropriate fittings and sealing materials to prevent leaks. Align the pump and motor shafts using alignment tools to ensure they are parallel and within tolerances recommended by Ebara. Securely mount the pump to the foundation using anchor bolts, ensuring it is level and rigid. Check and adjust belt tension (if applicable) as per Ebara’s guidelines. Finally, connect the electrical supply to the motor following local electrical codes and Ebara’s wiring diagram. Conduct a thorough check of all connections, tighten any loose fittings, and prime the pump according to the manufacturer’s instructions before starting the pump for operation.

Usage:

• Water supply and distribution
• Irrigation
• Industrial processes (cooling, heating, circulation)
• Water treatment (filtration, reverse osmosis)
• HVAC (heating, ventilation, air conditioning)
• Municipal water systems

Ebara 3DP 65-200/15 Cast-iron Centrifugal Pump components

The Ebara 3DP 65-200/15 Cast-iron Centrifugal Pump typically includes components such as:

• Cast iron pump casing
• Stainless steel impeller
• Mechanical seal
• Shaft with motor coupling

Important tips for buying Ebara 3DP 65-200/15 Cast-iron Centrifugal Pump

• Performance Requirements: Ensure the pump meets your specific flow rate and head requirements for the intended application.
• Material Compatibility: Verify that the pump’s construction materials (like cast iron casing and stainless steel impeller) are suitable for the liquids being pumped.
• Efficiency: Check the pump’s efficiency ratings to ensure cost-effective operation over its lifetime.
• Service and Support: Choose a supplier or vendor that offers good customer support, maintenance services, and readily available spare parts.
• Installation and Operation: Consider the ease of installation and operation, including any additional accessories or controls needed.
• Warranty: Review the manufacturer’s warranty terms to understand coverage and support options in case of issues.
• Price: You can check Ebara 3DP 65-200/15 Cast-iron Centrifugal Pump price on Famcocorp website

You can buy Ebara 3DP 65-200/15 Cast-iron Centrifugal Pump online from Famcocorp.



Ebara 3DP 65-200/15 Cast-iron Centrifugal Pump Price List

No.	Name	Price
1	Ebara 3DP 65-200/15 Cast-iron Centrifugal Pump Price	Contact us
