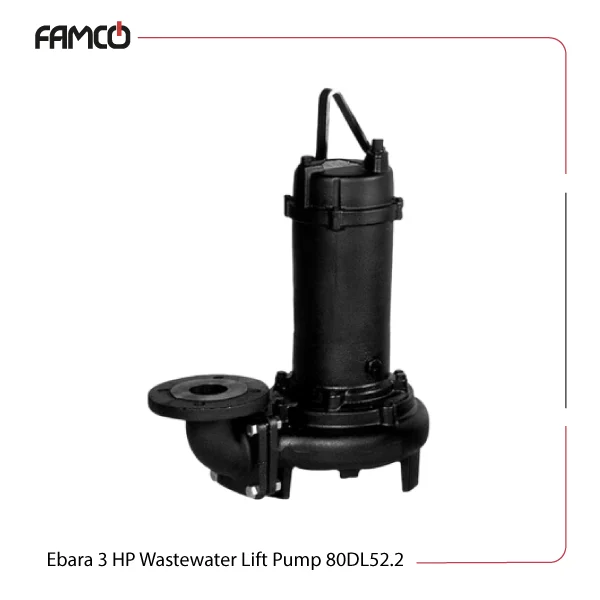

Ebara 3 HP Wastewater Lift Pump 80DL52.2 Specifications
This sewage pump is designed to handle dirty liquids with solids up to 50mm in size. This collection of Ebara pumps operates at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump runs on a three-phase power supply of 380-415V with a frequency of 50Hz. It features a 4-pole motor spinning at approximately 1450 rpm, with an insulation class of F for durability. The pump’s IP68 protection rating is the ultimate resolution for harsh environments (such as found in UAE). These Ebara wastewater pumps deliver a maximum flow rate of 72 cubic meters per hour and can generate a head between 4 and 17.1 meters. The impellers are made of cast iron to induce additional strength in performance. Mechanical seals on both the impeller and motor sides are composed of SiC/SiC/NBR and carbon/ceramic/NBR, respectively.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 50 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415, 400-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Max. flow rate (m3/h) | 72 |
| Max. head (m) | 4-17.1 |
Ebara 3 HP Wastewater Lift Pump 80DL52.2 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR

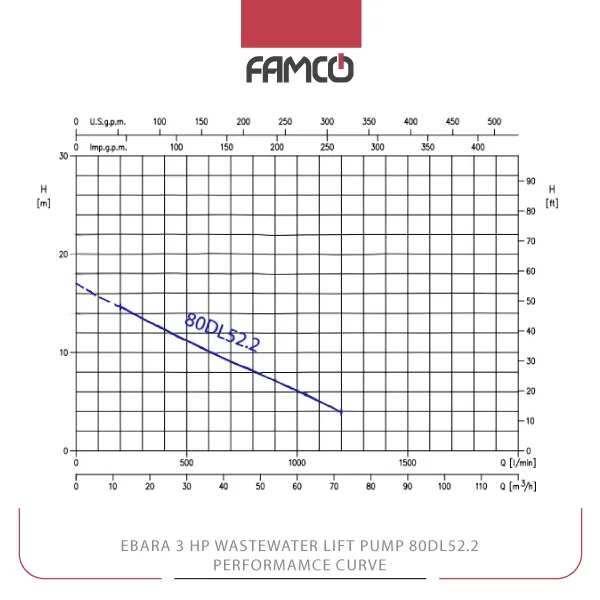

Ebara 3 HP Wastewater Lift Pump 80DL52.2 Performance Data
| l/min | 0 | 70 | 150 | 200 | 400 | 450 | 600 | 800 | 950 | 1000 |
| M3/h | 0 | 4 | 9 | 12 | 24 | 27 | 36 | 48 | 57 | 60 |
| Head (m) | 17.1 | – | – | 14.7 | 12.4 | 11.8 | 10.2 | 8.2 | 6.7 | 6.2 |
Ebara 3 HP Wastewater Lift Pump 80DL52.2 Applications
- Sewage treatment plants
- Industrial wastewater management
- Drainage systems in construction sites
- Municipal sewage systems
Ebara 3 HP Wastewater Lift Pump 80DL52.2 Benefits
- Handles solids up to 50mm, reducing clogging
- Suitable for submerged operation up to 7 meters
- Durable cast iron impellers for long service life
- High protection rating IP68 for harsh environments
Ebara 3 HP Wastewater Lift Pump 80DL52.2 Price List
| No. | Name | Price |
| 1 | Ebara 3 HP Wastewater Lift Pump 80DL52.2 Price | Contact us |
