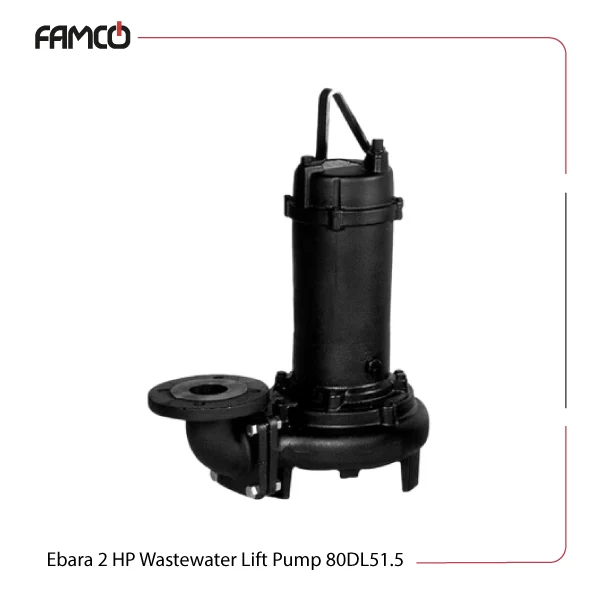

Ebara 2 HP Wastewater Lift Pump 80DL51.5 Specifications
The 80DL51.5 is a 2-horsepower sewage pump that is proven to be a reliable and durable solution for wastewater management. It is designed to handle sewage with solids up to 50 mm for various industrial and municipal applications. The pump operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep, ensuring installation flexibility. A power of 1.5 kW (2 HP) and a flow rate of 57 m3/h help this Ebara sewage pump provide strong performance for pumping sewage and wastewater. Its cast-iron impellers are built to withstand corrosion and wear, thereby extending the device’s lifespan. The pump features a high IP68 protection level, making it resistant to dust and water ingress. The mechanical seals are made of high-quality materials like SiC, ceramic, and NBR, indicating leak-proof operations. Suitable for various applications, this three-phase pump is a dependable choice for sewage and wastewater transfer.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 50 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415, 400-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max. flow rate (m3/h) | 57 |
| Max. head (m) | 3.3-14.0 |
Ebara 2 HP Wastewater Lift Pump 80DL51.5 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR

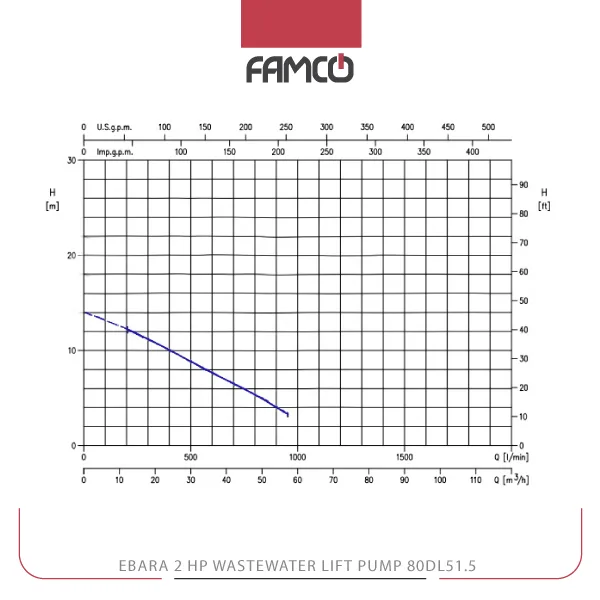

Ebara 2 HP Wastewater Lift Pump 80DL51.5 Performance Data
| l/min | 0 | 70 | 150 | 200 | 400 | 450 |
| M3/h | 0 | 4 | 9 | 12 | 24 | 27 |
| Head (m) | 16.4 | 15.5 | 14.3 | 13.6 | 10.7 | 9.9 |
Ebara 2 HP Wastewater Lift Pump 80DL51.5 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Drainage of sewage in construction sites
- Flood control and drainage systems
Ebara 2 HP Wastewater Lift Pump 80DL51.5 Benefits
- Handles solids up to 50 mm for versatile use
- High durability with cast iron impellers
- Resistant to harsh environments with IP68 rating
- Reliable sealing with high-quality mechanical seals
Ebara 2 HP Wastewater Lift Pump 80DL51.5 Price List
| No. | Name | Price |
| 1 | Ebara 2 HP Wastewater Lift Pump 80DL51.5 Price | Contact us |
