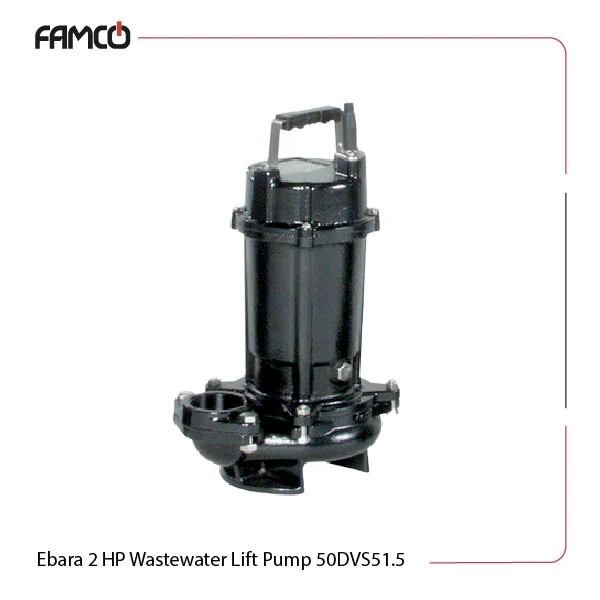

Ebara 2 HP Wastewater Lift Pump 50DVS51.5 Specifications
Whether you need to move water or manage waste, this pump is a versatile solution for your needs. These Ebara sewage pumps have a head range of 10.7 to 22 meters for effective water movement. The water pump’s flow rate is impressive, reaching 18 m3/h or 300 l/min, which is ideal for high-demand situations. Designed for a frequency of 50 Hz, this Ebara sumbersible pump weighs 37 kg, making it manageable yet sturdy. It can handle a maximum temperature of 40 °C and solids up to 21 mm in size, with fibers up to 100 mm in length. As for the materials, the impeller is made of durable cast iron. The mechanical seals on both the impeller and motor sides are designed for reliability, using materials like SiC and NBR. With a rotation speed of 2850 rpm, it operates efficiently. The insulation class is rated F, and it has a protection degree of IP68, making it suitable for wet environments. It operates on a three-phase voltage of 380-415 V.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 10.7-22 |
| Flow rate (m3/h) | 18 |
| Flow rate (l/min) | 300 |
| Frequency (Hz) | 50 |
| Weight (kg) | 37 |
| Max. temperature (°C) | 40 |
| Max. solids size (mm) | 21 |
| Max. fibers length (mm) | 100 |
| NO. of poles | 2 |
| Rotation speed (rpm) | 2850 |
| Insulation class | F |
| Protection degree | IP68 |
| Three-phase voltage (V) | 380-415 |
Ebara 2 HP Wastewater Lift Pump 50DVS51.5 Materials
- Impeller: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: Carbon/Ceramic/NBR
Ebara 2 HP Wastewater Lift Pump 50DVS51.5 Technical Data
| l/min | 0 | 100 | 150 | 200 | 300 |
| M3/h | 0 | 6 | 9 | 12 | 18 |
| Head (m) | 22.0 | 18.8 | 16.6 | 14.3 | 10.7 |

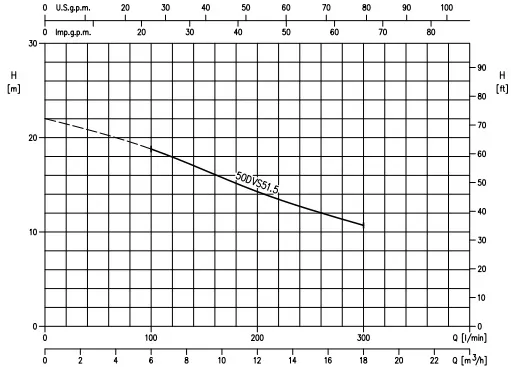

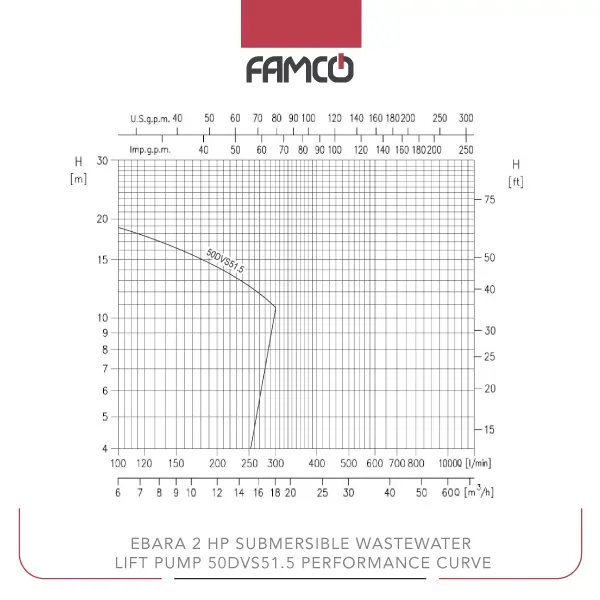

Ebara 2 HP Wastewater Lift Pump 50DVS51.5 Performance Curve
Ebara 2 HP Wastewater Lift Pump 50DVS51.5 Applications
- Irrigation systems in agriculture
- Water transfer in industrial settings
- Wastewater management
- Cooling systems in manufacturing
Ebara 2 HP Wastewater Lift Pump 50DVS51.5 Benefits
- High efficiency with a strong flow rate
- Durable construction for long-lasting use
- Reliable performance in challenging conditions
- Versatile applications across various industries
Ebara 2 HP Wastewater Lift Pump 50DVS51.5 Price List
| No. | Name | Price |
| 1 | Ebara 2 HP Wastewater Lift Pump 50DVS51.5 Price | Contact us |
