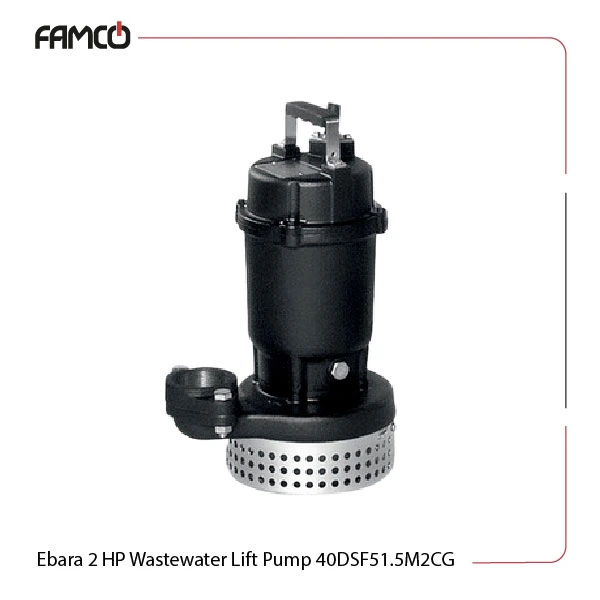

Ebara 2 HP Wastewater Lift Pump 40DSF51.5M2CG Specifications
This product features a drainage impeller type, with a power rating is 1.5 kW and a 50 Hz frequency. This product is ideal for anyone looking for a dependable solution for water movement with an immersion depth of 20 meters. The shaft seal is oil lubricated with a single spring mechanical seal and a lip seal for enhanced durability and protection. The impeller and casing are both made from cast iron GS400 and EN-GJL-250 respectively, to ensure strength and longevity. The shaft of this sewage pump is crafted from stainless steel AISI 42B/431, providing excellent corrosion resistance. The motor frame is also made from cast iron that adds to the overall sturdiness of this submersible pump that has to endure tough conditions. The mechanical seals on both the impeller and motor sides utilize SiC and NBR materials, respectively, enhancing reliable operation.
This product operates as a dry motor in single- or three-phase modes and is cooled by surrounding liquid. Its IP 68 protection degree allows it to operate in challenging environments. The voltage requirements are 230V for single-phase and 400-690V for three-phase. The overall power delivers a power of 1.5 kW or 2 HP. The height range is adjustable from 0.8 to 16.9 meters, making it versatile for various applications.
| Specification | Value | |
| Motor Type | Single-Phase | Dry Motor |
| Three-Phase | Cooled by Surrounding Liquid | |
| Max. liquid temperature (°C) | < 40 | |
| No. Of Poles | 2 | |
| Max. solids size (mm) | 6 | |
| Max. immersion depth (m) | 20 | |
| Rotation Speed (rpm) | 2850 | |
| Insulation class | H | |
| Protection degree | IP 68 | |
| Frequency | 50 | |
| Voltage | Single-Phase | 230 |
| Three-Phase | 400-690 | |
| Power (KW) | 1.5 | |
| Power (HP) | 2 | |
| Head (m) | 0.8-16.9 | |
Ebara 2 HP Wastewater Lift Pump 40DSF51.5M2CG Materials
- Impeller Type: Drainage
- Shaft Seal Type: Oil Lubricated, Single Spring Single Mechanical Seal + Lip Seal
- Impeller: cast iron GS400
- Casing: cast iron EN-GJL-250
- Shaft: Stainless Steel AISI 42B/431
- Motor Frame: cast iron EN-GJL-250
- Mechanical Seal of Impeller Side: SiC
- Mechanical Seal of Motor Side: NBR
Ebara 2 HP Wastewater Lift Pump 40DSF51.5M2CG Technical Data
| Q (m3/h) | 0 | 83 | 100 | 150 | 200 | 250 | 300 | 400 | 433 |
| Q (l/min) | 0 | 5 | 6 | 9 | 12 | 15 | 18 | 24 | 26 |
| H (m) | 16.9 | 16.4 | 16.2 | 15.1 | 13.6 | 11.7 | 9.3 | 3.2 | 0.8 |

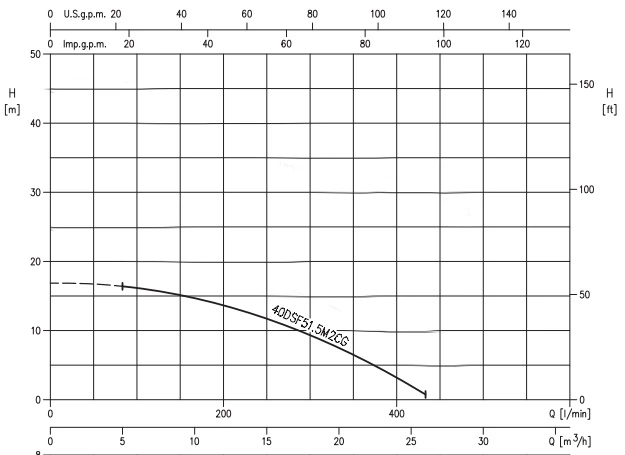

Ebara 2 HP Wastewater Lift Pump 40DSF51.5M2CG Performance Curve
Ebara 2 HP Wastewater Lift Pump 40DSF51.5M2CG Applications
- Basement drainage
- Construction site water management
- Irrigation systems
- Flood control
Ebara 2 HP Wastewater Lift Pump 40DSF51.5M2CG Benefits
- Durable cast iron construction
- High efficiency with adjustable height
- Reliable operation in harsh conditions
- Versatile for various applications
Ebara 2 HP Wastewater Lift Pump 40DSF51.5M2CG Price List
| No. | Name | Price |
| 1 | Ebara 2 HP Wastewater Lift Pump 40DSF51.5M2CG Price | Contact us |
