Ebara Drainage Pumps

Ebara Drainage Pumps Overview

Ebara drainage pumps represent advanced engineering for water management systems. Designed for moving water efficiently, these pumps are widely used in residential, commercial, and industrial settings. Across the full line, users benefit from capacities that reach flow rates up to 84 m³/h and delivery heads up to 43 m, giving the series the flexibility to handle clean water, grey water, and construction-site drainage. Based on the casing and impeller material, this pump is classified into two categories:

• Ebara Stainless-steel 304 drainage pump
• Ebara Cast iron drainage pump

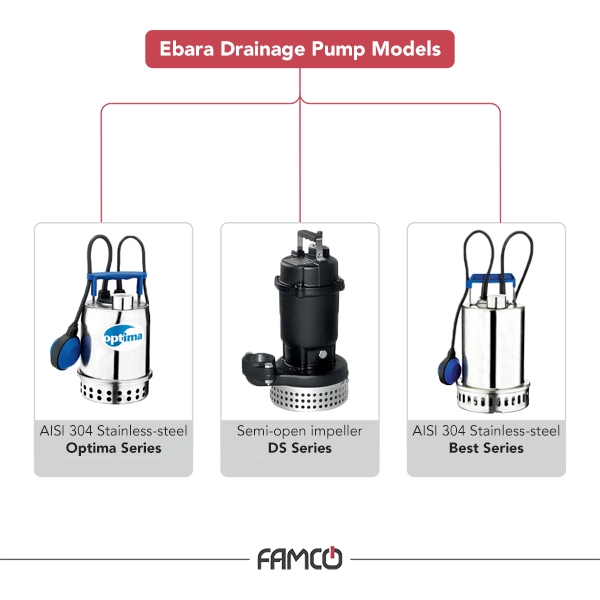

Ebara Drainage Pumps Models

Ebara offers a range of drainage pump models suited for varying requirements:

• Ebara Best Series

Ideal for residential and light commercial applications, handling moderate water flow rate from 1.2 to 21.6 m³/h efficiently. The water can reach a maximum head of up to 18.4 m. It features Stainless steel AISI 304 body and impeller.

• Ebara Best 2 drainage pumps (0.75 HP)
• Ebara Best 3 drainage pumps (1 HP)
• Ebara Best 4 drainage pumps (1.5 HP)
• Ebara Best 5 drainage pumps (2 HP)

Flow rate	from 1.2 to 21.6 m³/h
Total head	from 2.9 to 18.4 m
Max. temperature of the liquid	+35°C
Poles	2
Max. solids passage	10 mm
Insulation class	F
Protection degree	IP68
Voltage	Single-phase 1~230V ±10% Three-phase 3~400 ±10%
Max. immersion	7 m with 10 m cable

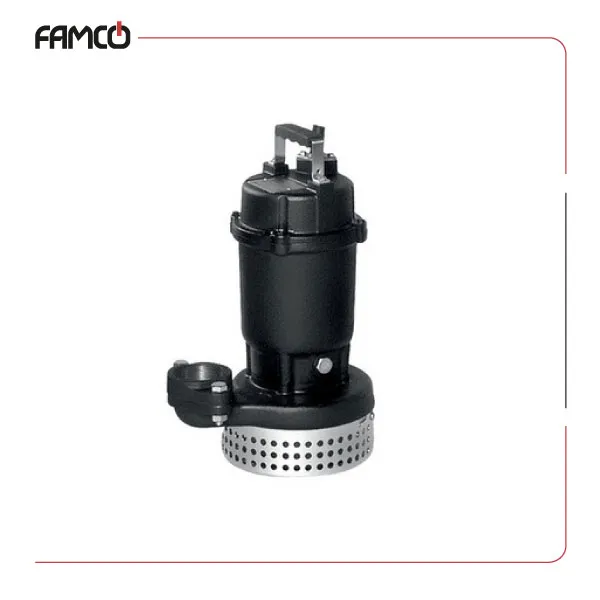

• Ebara DS Series

Designed for heavier-duty scenarios, providing higher flow rates and coping with solids in the water with cast iron body and impeller. The flow rate is up to 84 m³/h and the total head is up to 43 m.

• Ebara 8 HP Submersible Drainage Pump 40DSF56T2AG
• Ebara 2 HP Submersible Drainage Pump 40DSF51.5M2CG
• Ebara 2.5 HP Submersible Drainage Pump 40DSF51.9M2AG
• Ebara 5 HP Submersible Drainage Pump 80DS53.7
• Ebara 10 HP Submersible Drainage Pump 100DS57.5
• Ebara 7.5 HP Submersible Drainage Pump 100DS55.5
• Ebara 3 HP Submersible Drainage Pump 80DS52.2
• Ebara 2 HP Submersible Drainage Pump 65DS51.5
• Ebara 5 HP Submersible Drainage Pump 50DS53.7
• Ebara 3 HP Submersible Drainage Pump 50DS52.2
• Ebara 2 HP Submersible Drainage Pump 50DS51.5

Flow rate	up to 84 m³/h
Total head	up to 43 m
Max. temperature of the liquid	+40°C
Poles	2
Max. solids passage	5 mm (50DS) 6 mm (65DS) (40DSF 1.5, 1.9 kW) 7 mm (80DS) (40DSF 6 kW) 8 mm (100DS)
Insulation class	F for DS H for DSF
Protection degree	IP68
Voltage	Three-phase 3~380-415±10% (DS) Single-phase 1~230±10% (DSF) Three-phase 3~400/690±10% (DSF)
Max. immersion	up to 1.5kW: 3 m with 6 m cable over 1.5kW: 7 m with 10 m cable
Max. length of fibres	50 mm



• Ebara Optima MS Series

Advanced models for industrial or large-scale water transfer, covering flow rate of up to 9 m³/h and head of up to 7.6 m for flexibility in operations. The impeller in this series is made from PPE + PS reinforced with glass fibers.

• Ebara 0.3 HP Submersible Drainage Pump OPTIMA

Flow rate	from 1.2 to 9 m³/h
Total head	from 1.5 to 7.6 m
Max. temperature of the liquid	+50°C
Poles	2
Max. solids passage	10 mm
Insulation class	F
Protection degree	IP68
Voltage	Single phase 1 ~ 230V ± 10%
Max. immersion	5 m with 10 m cable 2 m with 5 m cable

This wide range allows selecting the right pump for specific needs, optimizing water movement across different environments.

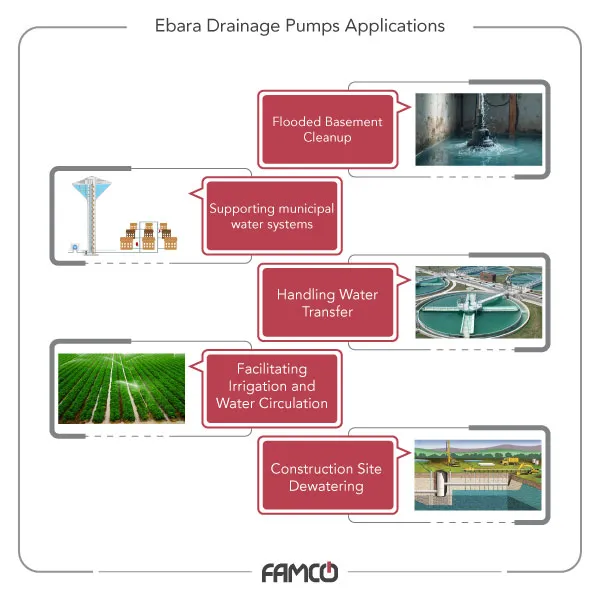

Ebara Drainage Pumps Applications

Ebara drainage pumps serve multiple applications, including:

• Removing excess water from basements, construction sites, and flooded areas
• Supporting municipal water systems and stormwater management
• Handling water transfer in industrial plants and factories

• Facilitating irrigation and water circulation in agricultural operations

Their versatility allows professionals and homeowners to address water handling challenges effectively.

Ebara Drainage Pumps Benefits

Using Ebara drainage pumps provides several operational advantages:

• Achieving efficient water movement in tight or demanding spaces
• Minimizing energy consumption while maintaining effective flow rates
• Operating quietly, reducing noise pollution in sensitive environments
• Adapting to different water conditions, including clean, dirty, or slightly abrasive water
  These benefits make Ebara pumps a practical choice for projects requiring consistent water management solutions.

For sourcing Ebara pumps in Dubai, Famco Sanat stands out as a trusted supplier. Offering expert guidance on model selection, installation support, and after-sales service, Famco Sanat helps clients achieve smooth operation and proper pump integration into their water systems.
