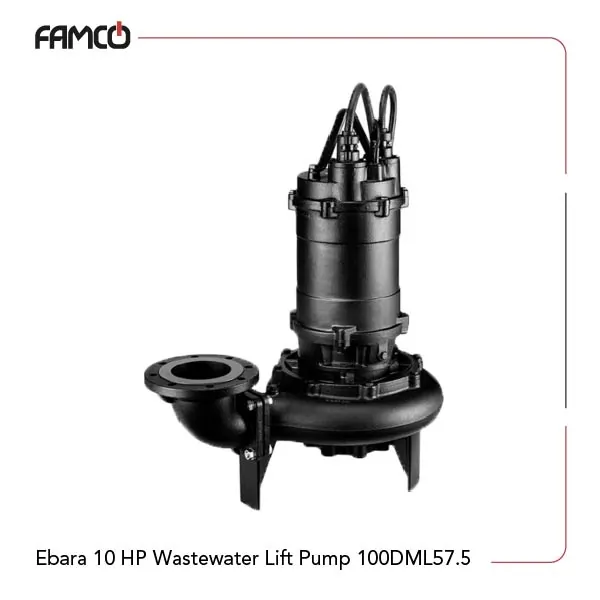

Ebara 10 HP Wastewater Lift Pump 100DML57.5 Specifications
Ebara 10 HP wastewater lift pump 100DML57.5 is designed to handle dirty liquids with solids up to 76 mm in size. This line of Ebara pumps operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump runs on a three-phase power supply of 380-415V, with four poles, and spins at approximately 1450 rpm. This Ebara sewage pump features an insulation class F for durability and an IP68 protection degree, making it suitable for harsh environments. The pump’s power output is 7.5 kW (10 HP), capable of moving up to 144 cubic meters of liquid per hour, with a maximum head ranging from 12.1 to 25.3 meters. The impellers are made of cast iron, ensuring strength and longevity. Mechanical seals are composed of SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side, providing reliable sealing for continuous operation in sewage applications.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 76 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. flow rate (m3/h) | 144 |
| Max. head (m) | 12.1-25.3 |
Ebara 10 HP Wastewater Lift Pump 100DML57.5 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR
Ebara 10 HP Wastewater Lift Pump 100DML57.5 Technical Data
| l/min | 0 | 500 | 1000 | 1300 | 1600 | 1900 | 2200 | 2400 |
| M3/h | 0 | 30 | 60 | 78 | 96 | 114 | 132 | 144 |
| Head (m) | 25.3 | 20.6 | 18.0 | 16.7 | 15.5 | 14.2 | 13.0 | 12.1 |

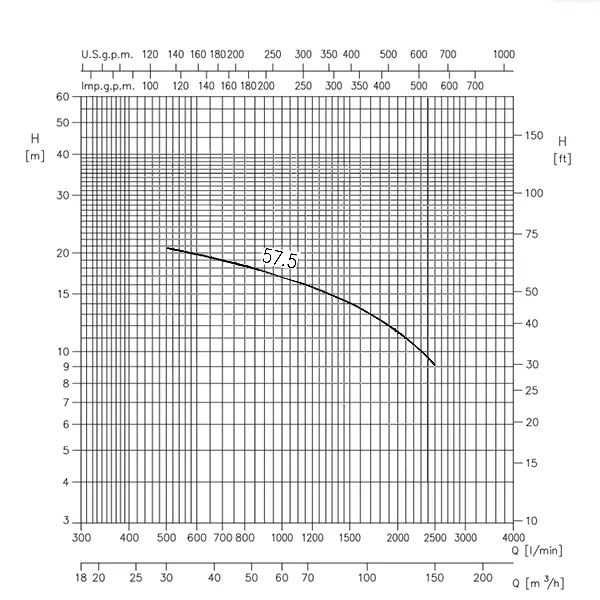

Ebara 10 HP Wastewater Lift Pump 100DML57.5 Performance Curve
Ebara 10 HP Wastewater Lift Pump 100DML57.5 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Drainage systems in construction sites
- Flood control and water removal
Ebara 10 HP Wastewater Lift Pump 100DML57.5 Benefits
- Handles solids up to 76 mm for versatile sewage pumping
- High flow rate of 144 m3/h for efficient operation
- Durable cast iron impellers and reliable seals
- Suitable for submerged use up to 7 meters deep
Ebara 10 HP Wastewater Lift Pump 100DML57.5 Price List
| No. | Name | Price |
| 1 | Ebara 10 HP Wastewater Lift Pump 100DML57.5 Price | Contact us |
