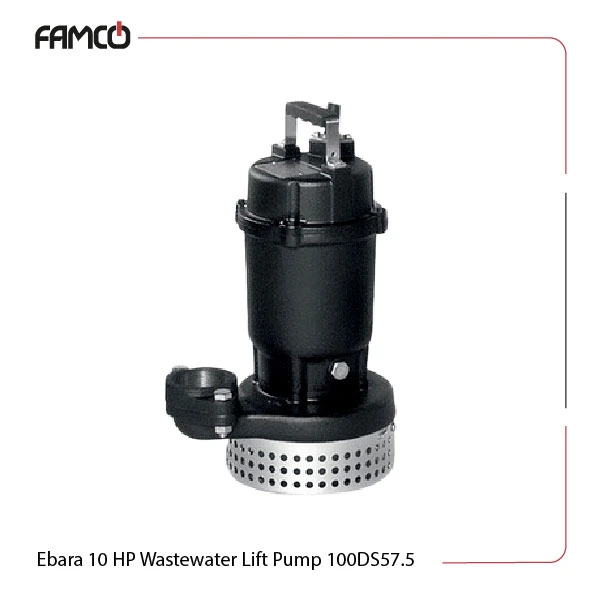

Ebara 10 HP Wastewater Lift Pump 100DS57.5 Specifications
The product’s power range stands between 1.5 to 7.5 Kw which is impressive. These Ebara pumps operate effectively at a rotation speed of around 2850 rpm in both residential and industrial uses. The IP 68 protection degree ensures it can withstand harsh conditions that sewage pumps typically face. This submersible pump features a semi-open impeller type, designed for efficient fluid movement. It has an oil-lubricated, single spring double mechanical seal, which ensures durability and reliability. Reaching a 10 meter head is noticeable coming from a wastewater pump. Constructed from robust cast iron, this submersible pump has its impeller and casing provide strength and longevity.
The shaft is made from Aisi 403, enhancing resistance to wear. The mechanical seal on the impeller side uses SiC/SiC/NBR materials, while the motor side features a carbon/ceramic/NBR combination, lubricated with turbine oil VG32. Its dimensions are compact, with a weight of 104 kg that guarantees ease of installation and operation.
| Specification | Value | |
| Motor Type | Three Phase air filled dry submersible | |
| No. Of Poles | 2 | |
| Rotation Speed (rpm) | ~2850 | |
| Insulation Class | F | |
| Protection Degree | IP 68 | |
| Power Rating | 1.5-7.5 | |
| Frequency | 50 | |
| Voltage | 380-415 | |
| Power (KW) | 7.5 | |
| Power (HP) | 10 | |
| H (m) | 13.2-39.2 | |
| Flange Type | Round | |
| Weight (kg) | 104 | |
| *L.W.L (Low Water Level) | Operation is limited to 10 minutes at L.W.L, Operation is limited to 30 minutes with water level below top of motor | |
Ebara 10 HP Wastewater Lift Pump 100DS57.5 Materials
- Impeller Type: Semi-Open (with Strainer)
- Shaft Seal Type: Oil Lubricated, Single Spring Double Mechanical Seal
- Impeller: cast iron
- Casing: cast iron
- Motor Frame: cast iron
- Shaft: Aisi 403
- Mechanical Seal of Impeller Side: SiC/SiC/NBR
- Mechanical Seal of Motor Side: Carbon/Ceramic/NBR
- Lubricant: Turbine Oil VG32 (SAE 10W/20W)
Ebara 10 HP Wastewater Lift Pump 100DS57.5 Technical Data
| Q (m3/h) | 0 | 400 | 433 | 450 | 467 | 473 | 483 | 500 | 550 | 580 | 600 | 700 | 800 | 950 | 1000 | 1170 | 1200 | 1250 | 1400 |
| Q (l/min) | 0 | 24 | 26 | 27 | 28 | 28.4 | 29 | 30 | 33 | 34.8 | 36 | 42 | 48 | 57 | 60 | 70.2 | 72 | 75 | 84 |
| H (m) | 39.2 | 37 | 37 | 36.6 | 36.4 | 36.3 | 36.2 | 36 | 35.5 | 35.1 | 34.8 | 33.4 | 31.7 | 28.5 | 27.3 | 22.5 | 21.4 | 19.7 | 13.2 |

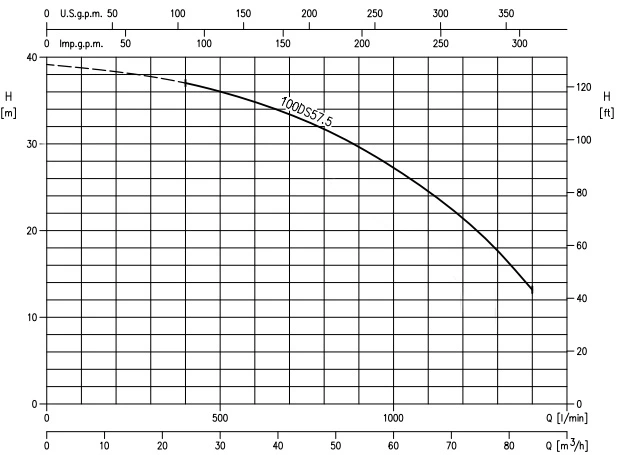

Ebara 10 HP Wastewater Lift Pump 100DS57.5 Performance Curve
Ebara 10 HP Wastewater Lift Pump 100DS57.5 Applications
- Water drainage in construction sites
- Irrigation systems for agriculture
- Wastewater management in municipal settings
- Industrial fluid transfer processes
Ebara 10 HP Wastewater Lift Pump 100DS57.5 Benefits
- Durable cast iron construction for long-lasting use
- Efficient fluid movement with semi-open impeller design
- High protection degree (IP 68) for harsh environments
- Versatile power range suitable for various applications
Ebara 10 HP Wastewater Lift Pump 100DS57.5 Price List
| No. | Name | Price |
| 1 | Ebara 10 HP Wastewater Lift Pump 100DS57.5 Price | Contact us |
