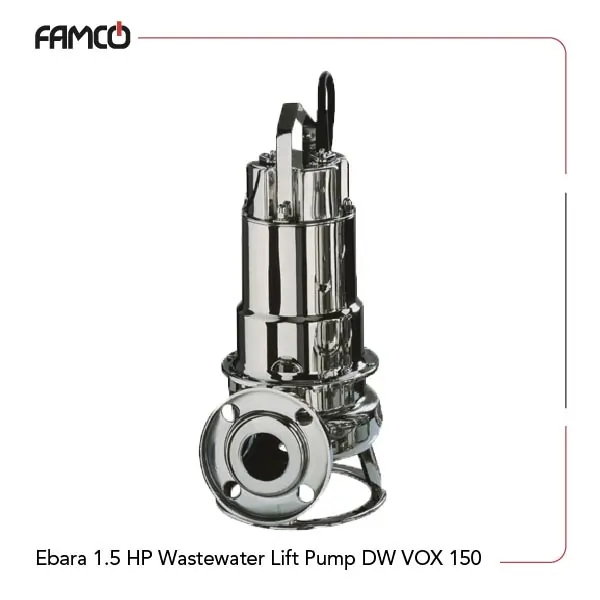

Ebara 1.5 HP Wastewater Lift Pump DW VOX 150 Specifications
Ebara 1.5 HP wastewater lift pump DW VOX 150 is designed for handling dirty and sewage water. This series of Ebara wastewater pumps can operate at a maximum temperature of 40°C and can handle solids up to 50 mm in size. The pump has a maximum immersion depth of 7 meters, ensuring it can be used in deep water applications. A rotation speed of approximately 2800 min-1 guarantees efficient performance. The insulation class is rated F, ensuring durability and safety. It has a protection degree of IP X8, meaning it is well-protected against water ingress. The pump operates at a frequency of 50 Hz and has a power output of 1.1 kW (1.5 HP). It can achieve a maximum flow rate of 36 m3/h and a head range of 2.1 to 11.4 meters. It supports both single-phase (230 ±10%) and three-phase (400 ±10%) voltage options, making it versatile for different electrical setups.
| Specification | Value |
| Type of liquid | Dirty water, sewage water |
| Max temperature (°C) | 40 |
| Max solids size (mm) | 50 spherical |
| Maximum immersion (m) | 7 |
| No. of Poles | 2 |
| Rotation speed (min-1) | ≈ 2800 |
| Insulation Class | F |
| Protection degree | IP X8 |
| Frequency (Hz) | 50 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. flow rate (m3/h) | 36 |
| Head (m) | 2.1-11.4 |
| Single-phase voltage (V) | 230 ±10% |
| Three-phase voltage (V) | 400 ±10% |
Ebara 1.5 HP Wastewater Lift Pump DW VOX 150 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Mechanical Shaft Seal on Pump Side : SiC/SiC/NBR
- Mechanical Shaft Seal on Motor side : Carbon/Ceramic/NBR
Ebara 1.5 HP Wastewater Lift Pump DW VOX 150 Technical Data
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 |
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 |
| Head (m) | 11.4 | 10.2 | 9.0 | 7.6 | 6.1 | 4.1 | 2.1 |

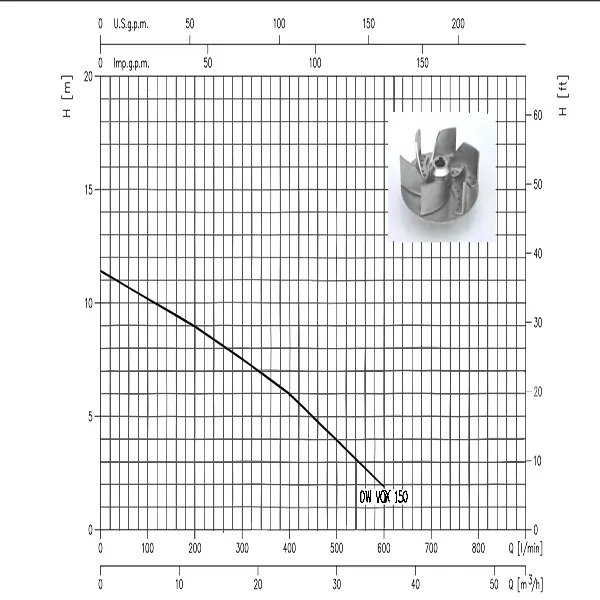

Ebara 1.5 HP Wastewater Lift Pump DW VOX 150 Performance Curve
Ebara 1.5 HP Wastewater Lift Pump DW VOX 150 Applications
- Construction site dewatering
- Wastewater treatment facilities
- Agricultural drainage systems
- Flood control and emergency pumping
Ebara 1.5 HP Wastewater Lift Pump DW VOX 150 Benefits
- Handles dirty and sewage water effectively
- High flow rate for efficient operation
- Durable design with IP X8 protection
- Versatile voltage options for different setups
Ebara 1.5 HP Wastewater Lift Pump DW VOX 150 Price List
| No. | Name | Price |
| 1 | Ebara 1.5 HP Wastewater Lift Pump DW VOX 150 Price | Contact us |
