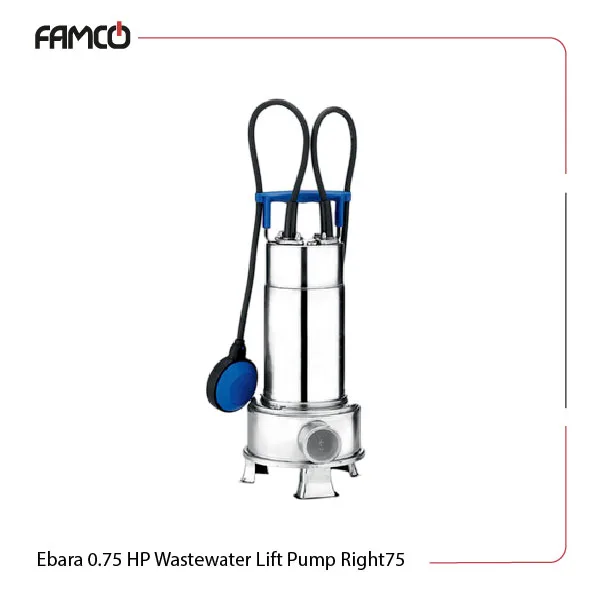

Ebara 0.75 HP Wastewater Lift Pump Right75 Specifications
This 0.75 HP pump is designed for both clean and dirty water applications. This Ebara pump can handle solids up to 35 mm in size and operates efficiently at a maximum liquid temperature of 50°C. This line of Ebara submersible pumps can be immersed at depths ranging from 2 to 7 meters, depending on the cable length chosen (5 or 10 meters). The pump runs at a speed of 2875 rpm and features an insulation class of F. It is also rated IPX8 for protection against water ingress, which is required in a sewage pump. This pumping solution has a 240 l/min flow rate at its best. The mechanical seals on both the pump and motor sides are made from high-quality materials.
| Specification | Value |
| Type of liquid | clean and dirty water |
| Max. solids size (mm) | 35 spherical |
| Max. liquid temperature (℃) | 50 |
| Max. immersion depth (m) | 2-7 (with 5 or 10 m cable length) |
| No. of poles | 2 |
| Speed (rpm) | 2875 |
| Insulation class | F |
| Protection degree | IPX8 |
| Power rating (kW) | 0.55 |
| Power rating (HP) | 0.75 |
| Head (m) | 2-8.8 |
| Max. flow rate (m3/h) | 14.4 |
| Frequency (Hz) | 50 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
Ebara 0.75 HP Wastewater Lift Pump Right75 Materials
- Mechanical seal on pump side: sic/ sic/NBR
- Mechanical seal on motor side: Carbon/ceramic/NBR
- Impeller: aisi 304
Ebara 0.75 HP Wastewater Lift Pump Right75 Technical Data
| l/min | 0 | 40 | 80 | 120 | 160 | 200 | 240 |
| M3/h | 0 | 2.4 | 4.8 | 7.2 | 9.6 | 12 | 14.4 |
| Head (m) | 8.8 | 7.8 | 6.8 | 5.7 | 4.7 | 3.4 | 2 |

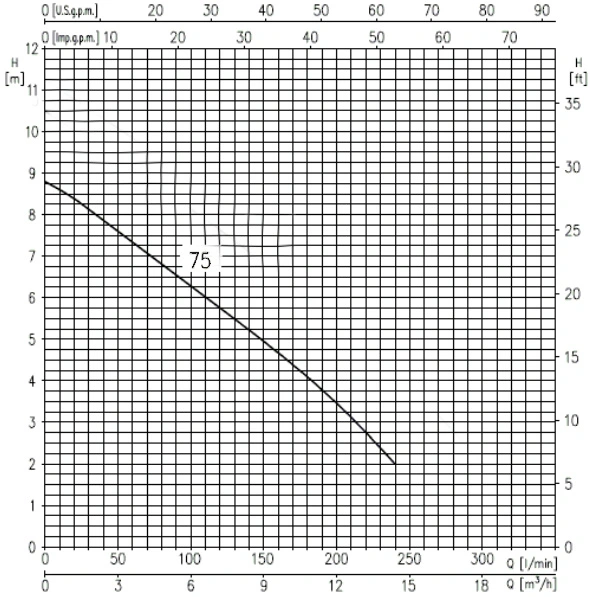

Ebara 0.75 HP Wastewater Lift Pump Right75 Performance Curve
Ebara 0.75 HP Wastewater Lift Pump Right75 Applications
- Drainage of flooded areas
- Irrigation systems for gardens and farms
- Wastewater management in residential and commercial settings
- Construction site dewatering
Ebara 0.75 HP Wastewater Lift Pump Right75 Benefits
- Handles both clean and dirty water efficiently
- Robust construction ensures long-lasting performance
- Versatile applications across various industries
- High flow rate and solid handling capability
Ebara 0.75 HP Wastewater Lift Pump Right75 Price List
| No. | Name | Price |
| 1 | Ebara 0.75 HP Wastewater Lift Pump Right75 Price | Contact us |
