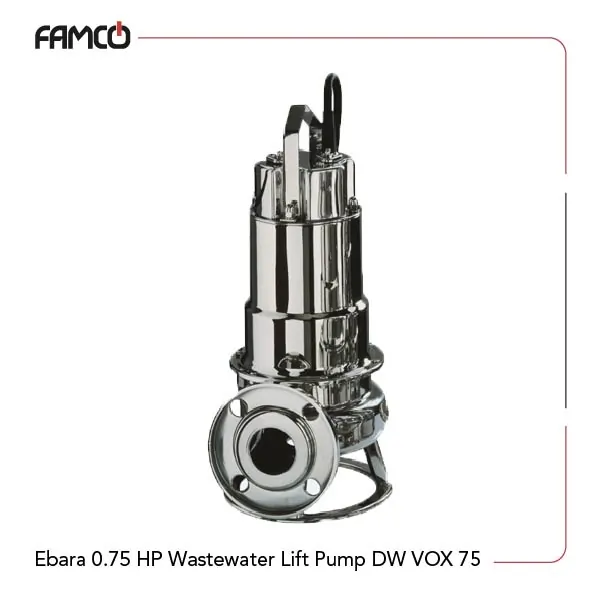

Ebara 0.75 HP Wastewater Lift Pump DW VOX 75 Specifications
Ebara 0.75 HP wastewater lift pump DW VOX 75 is designed for handling dirty and sewage water, making it ideal for various applications. This series of Ebara sewage pumps can operate at a maximum temperature of 40°C and can handle solids up to 50 mm in size. A maximum immersion depth of 7 meters has rendered this wastewater pump suitable for deep installations. The pump features a rotation speed of approximately 2800 min-1 and operates on a frequency of 50 Hz. This Ebara wastewater pump has a power output of 0.55 kW (0.75 HP) and can achieve a maximum flow rate of 24 m³/h. The head range is between 1.6 to 7.3 meters, so it moves water successfully. It is equipped with an insulation class of F and a protection degree of IP X8, ensuring durability and safety in wet environments. The pump can operate on both single-phase (230 ±10%) and three-phase (400 ±10%) voltage systems.
Specification | Value |
Type of liquid | Dirty water, sewage water |
Max temperature (°C) | 40 |
Max solids size (mm) | 50 spherical |
Maximum immersion (m) | 7 |
No. of Poles | 2 |
Rotation speed (min-1) | ≈ 2800 |
Insulation Class | F |
Protection degree | IP X8 |
Frequency (Hz) | 50 |
Power (kW) | 0.55 |
Power (HP) | 0.75 |
Max. flow rate (m3/h) | 24 |
Head (m) | 1.6-7.3 |
Single-phase voltage (V) | 230 ±10% |
Three-phase voltage (V) | 400 ±10% |
Ebara 0.75 HP Wastewater Lift Pump DW VOX 75 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Mechanical Shaft Seal on Pump Side : SiC/SiC/NBR
- Mechanical Shaft Seal on Motor side : Carbon/Ceramic/NBR
Ebara 0.75 HP Wastewater Lift Pump DW VOX 75 Technical Data
l/min | 0 | 100 | 200 | 300 | 400 |
M3/h | 0 | 6 | 12 | 18 | 24 |
Head (m) | 7.3 | 6.3 | 5.0 | 3.5 | 1.6 |

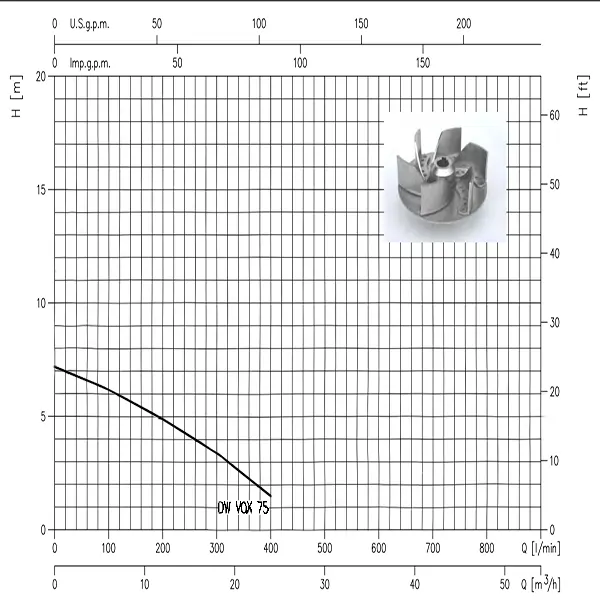

Ebara 0.75 HP Wastewater Lift Pump DW VOX 75 Performance Curve
Ebara 0.75 HP Wastewater Lift Pump DW VOX 75 Applications
- Residential drainage systems
- Construction site dewatering
- Wastewater management in industrial settings
- Flood control and emergency drainage
Ebara 0.75 HP Wastewater Lift Pump DW VOX 75 Benefits
- Handles dirty and sewage water effectively
- High flow rate for quick drainage
- Durable design with IP X8 protection
- Versatile voltage options for various installations
Ebara 0.75 HP Wastewater Lift Pump DW VOX 75 Price List
No. | Name | Price |
1 | Ebara 0.75 HP Wastewater Lift Pump DW VOX 75 Price | Contact us |
