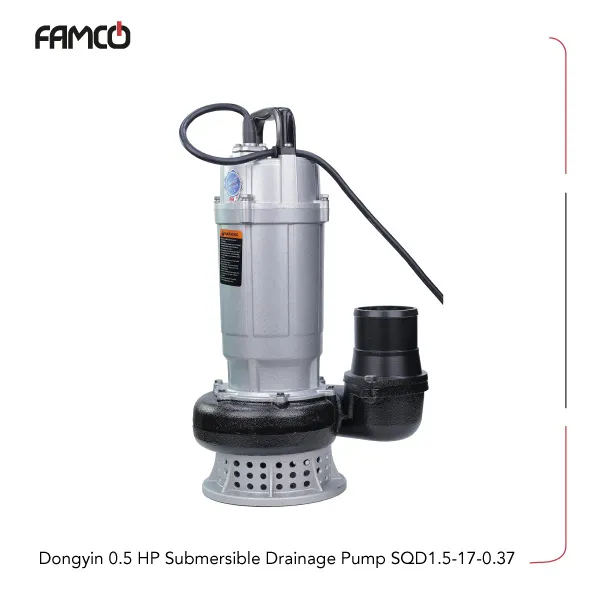

Dongyin 0.5 HP Submersible Drainage Pump SQD1.5-17-0.37

Dongyin 0.5 HP Submersible Drainage Pump SQD1.5-17-0.37 Specifications

This pump features a compact design with a power output of 0.37 kW, equivalent to 0.5 HP, making it suitable for various fluid transfer tasks. It can handle a maximum flow rate of 6 cubic meters per hour and delivers a maximum head of 18 meters, ensuring efficient performance over different applications. The outlet size is 1 inch, and it can pass solids up to 5 mm in diameter, making it capable of handling slightly contaminated liquids. The pump body is constructed from durable aluminum, providing a lightweight yet sturdy structure, while the impeller is made of cast aluminum for enhanced durability. Its mechanical seal is composed of graphite and ceramic, offering reliable sealing and longevity. The shaft embedded inside this 0.5 HP Dongyin pump is made of stainless steel, ensuring resistance to corrosion. It operates at a maximum liquid temperature of 40°C and runs on a single-phase power supply at 50 Hz frequency. Additionally, the pump includes a float switch for automatic operation, making it suitable for applications requiring level control and automation.

Dongyin 0.5 HP Submersible Drainage Electric Pump SQD1.5-17-0.37 Applications

• Water transfer in residential and commercial settings
• Irrigation for agricultural fields
• Drainage and flood control
• Industrial fluid transfer and processing

Dongyin 0.5 HP Submersible Drainage Pump SQD1.5-17-0.37 Benefits

• Lightweight aluminum construction for easy handling
• Durable cast aluminum impeller for long-lasting performance
• Automatic operation with included float switch
• Can handle slightly contaminated liquids with a 5 mm solid passage
