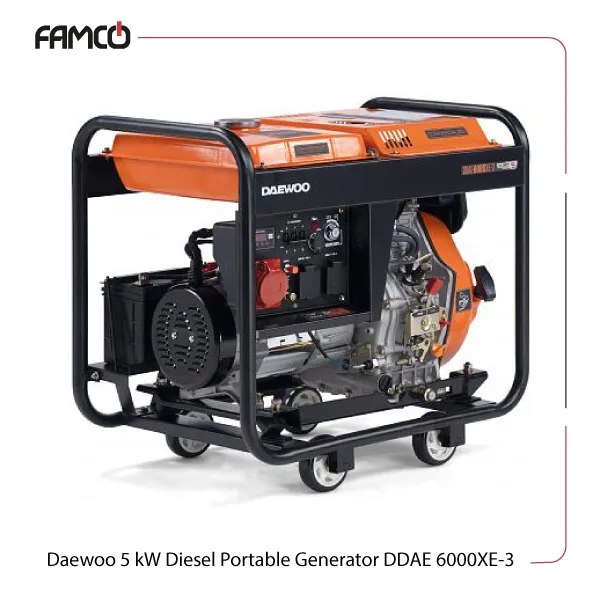

Daewoo 5 kW Diesel Portable Generator DDAE 6000XE-3 Specifications
This generator offers a maximum power output of 5.0 kW and a rated power of 4.5 kW, making it suitable for various power needs. It operates on a voltage of 230/380 V with an AVR voltage regulator to ensure stable power supply. The device features two 16A sockets at 230V and one 16A socket at 380V, along with an ATS connector for easy integration with automatic transfer systems.
It includes a 5-in-1 display for monitoring essential parameters. The generator, made portable and diesel-fueled, can run for up to 16 hours at 50% load, with a sound level of 61 dB(A). Powered by a 418 cc, 11 HP DAEWOO 420 diesel engine, this 4-stroke engine is reliable and efficient.
The fuel tank holds 13.5 liters, and the oil capacity is 1.65 liters. This Daewoo generator comes with a starter battery and a manual-electro starting system. The compact dimensions are 745 mm in length, 510 mm in width, and 670 mm in height, with a total weight of 103 kg, making it portable yet sturdy for various applications.
| Specification | Value |
| Maximum power | 5.0 kW |
| Rated power | 4.5 kW |
| Voltage | 230/380 V |
| Voltage regulator | AVR |
| Power Factor | 0.8 Cosφ |
| Sockets | 2x16A (230V), 1x16A (380V) |
| ATS Connector | YES |

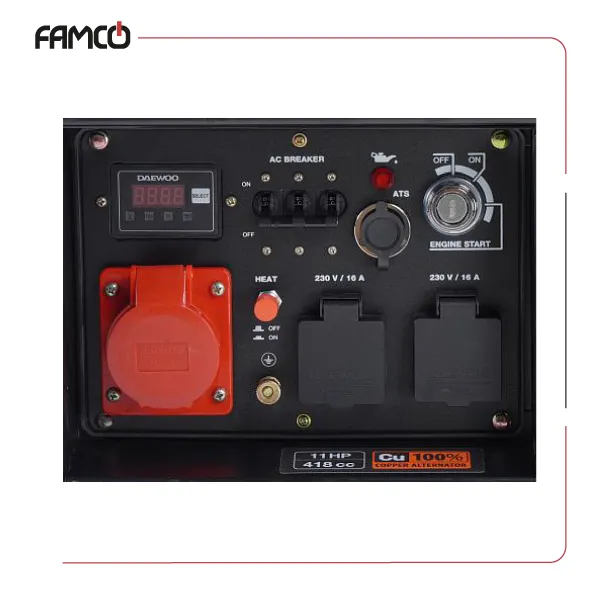

| Display | 5 in 1 |
| Run time 50% load | 16 h |
| Sound power level | 61 dB(A) |
| Displacement | 418 cc |
| Engine power | 11 HP |
| Engine model | 420 diesel |
| Engine type | 4-stroke |
| Engine manufacturer | DAEWOO |
| Fuel type | Diesel |
| Fuel tank volume | 13.5 l |
| Oil volume | 1.65 l |
| Starter battery | yes |
| Starting system | manual-electro |
Daewoo 5 kW Diesel Portable Generator DDAE 6000XE-3 Dimensions and Weight
| Dimensions (L/W/H) | 745 x 510 x 670 mm |
| Weight | 103 kg |
Daewoo 5 kW Diesel Portable Generator DDAE 6000XE-3 Applications
- Backup power for homes and businesses
- Construction site power supply
- Outdoor events and festivals
- Emergency power during outages
Daewoo 5 kW Diesel Portable Generator DDAE 6000XE-3 Benefits
- High power output suitable for multiple devices
- Long runtime of up to 16 hours at half load
- Stable power with AVR regulation
- Easy to operate with manual-electro start
Daewoo 5 kW Diesel Portable Generator DDAE 6000XE-3 Price List
| No. | Name | Price |
| 1 | Daewoo 5 kW Diesel Portable Generator DDAE 6000XE-3 Price | Contact us |
There are no reviews yet.
