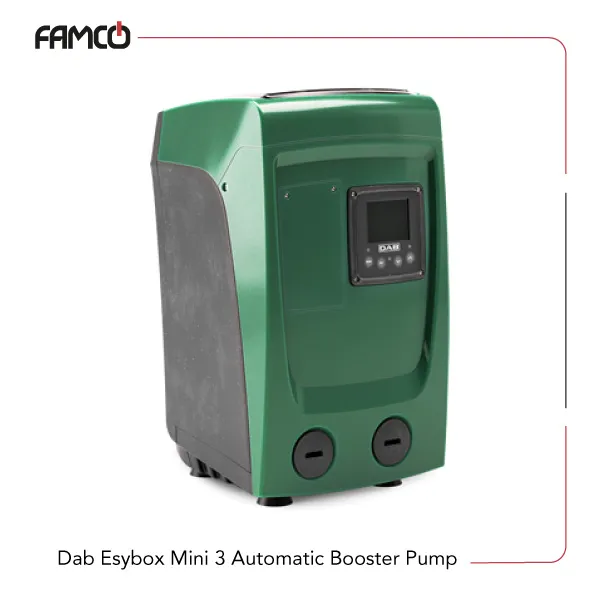

Dab Esybox Mini 3 Automatic Booster Pump

Dab ESYBOX MINI 3 Specifications

Dab Esybox Mini 3 Automatic Booster Pump uses an inverter for domestic purposes. For example, it can supply sufficient water for a 3-floor building with 2 bathrooms and a 50-m2 garden. It is equipped with a remote controller that works with DConnect service integrated into the system. The water must be clean, without corrosive properties, and with no solid particles.

The maximum flow rate and delivery head are 80 l/min and 55 m, respectively. The liquid temperature ranges from 0 to 35 °C for domestic use and from 0 to 40 °C for other purposes. The communication protocols used in Dab Esybox mini 3 are integrated and standard wireless, wi-fi, and Bluetooth connections. It can pair a maximum of two pumps to create a pump set. This booster pump is the quietest of all Dab pumps thanks to its water-cooled engine, sound-proofed housing, VFD, and anti-vibration system.

It can be installed anywhere in any position due to its extremely compact size. This kind of booster system is suitable for pumping water from wells up to 8 meters deep, tanks, rainwater collection tank, and aqueduct. There is an integrated inverter in this booster pump. This Dab Esybox 1.1 HP booster pump has an input current of 4.8 A. With Dab Esybox available in UAE, You can save yearly on your energy bills, considering the VFD setting incorporated in this Dab inverter pump.



To get access to Dab Esybox mini 3 manual and Dab Esybox mini 3 price, you can always contact our experts and get quotations and info right away.

Dab ESYBOX MINI 3 Specifications Table

Specification	Value
Max. flow rate (l/min)	80
Max. flow rate (m³/h)	4.8
Head (m)	4-55
Wright (kg)	14.6
Power (kW)	0.85
Power (HP)	1.1

Dab ESYBOX MINI 3 Booster Pump Performance Data



m³/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
l/min	0	10	20	30	40	50	60	70	80
Head (m)	55	55	55	49	39	31	23	14	4



Note: You can find the performance data when 2 Esybox mini 3 sets are coupled in the catalog.

Dab ESYBOX MINI 3 Parts and Materials



No.	Parts	Material
1	Motor sleeve	Stainless steel AISI 304
2	O-ring	NBR
4	Motor body	PP OMO 30% GF
5	Mechanical seal disk	PA 6.6 30% GF
9	Mechanical seal	Carbon impregnated resin/ceramic NBR
12	Diffuser	Noryl
14	Impeller	Noryl
21	Suction body	PP OMO 30% GF
22	Insert 1″	Brass
23	Shutter spring	Stainless steel AISI 303
25	Self-priming shutter	POM
26	1″ plug	PP OMO 30% GF
36	Non return value	Techno-polymer/rubber/steel
41	1¼” plug	Pa 6.6 30% GF
43	Heat sink	Brass
45	Delivery body	PP OMO 30% GF
46	Insert 1″	Brass
48	Vessel 1L	Techno-polymer/rubber
51	Flowmeter wheel	POM
56	Pressure sensor body	Techno-polymer
69	1″ Plug	PP 6.6 30% GF

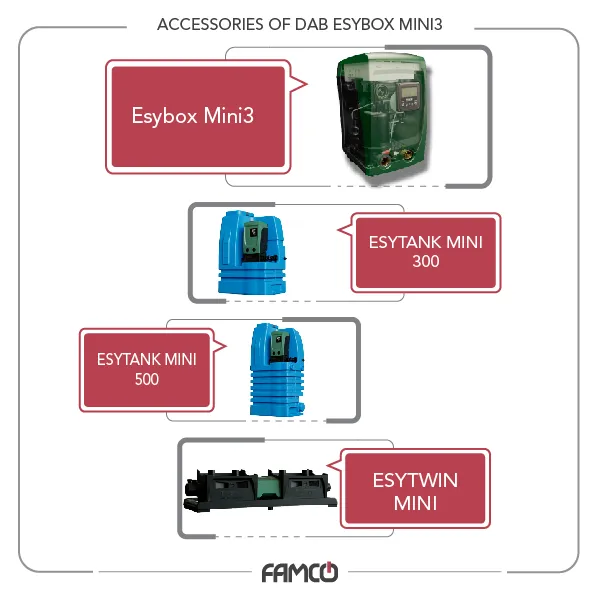

Dab ESYBOX MINI 3 Accessories

• ESYTANK 300 MINI: A 300 liter tank, made uniquely to use along with the ESYBOX MINI 3
• ESYTANK 500 MINI: A 500 liter tank you can couple with the Dab booster pump
• ESYTWIN MINI: A handy connect base with 4 possible configurations
• ESYWALL: A complete kit with brackets, shock absorber spacers, and screws, that fits Dab ESYBOX MINI3

Dab ESYBOX MINI 3 Dimensions and Weight

A	439
B	263
C	46
D	143
E	60.7
F	106.7
G	279.5
H	236
I	40.5
L	152
M	46
N	101.7
P	140
Q	140
R	155.5
S	47.8
T	133
V	54.5
Packing dimensions	300 L/A
	500 L/B
	320 H
Weight	14.6
DNA	1″
DNM	1″

* All the above values are in millimeters.



Dab ESYBOX MINI 3 Features and Benefits

• Quiet operation
• Compact size
• Wireless, wi-fi, and Bluetooth connections
• Anti-vibration system
• Water-cooled engine
• Sound-proofed housing
• VFD

Dab ESYBOX MINI 3 Applications

• Rainwater reuse
• Residential building applications
• Small gardening uses

For further inquiry, you can check Dab ESYBOX MINI 3 automatic booster system user guide or contact us at Famcocorp.

Dab ESYBOX MINI 3 Automatic Booster Pump Price List

No.	Name	Price
1	Dab ESYBOX MINI 3 Automatic Booster Pump with Inverter	Contact us
