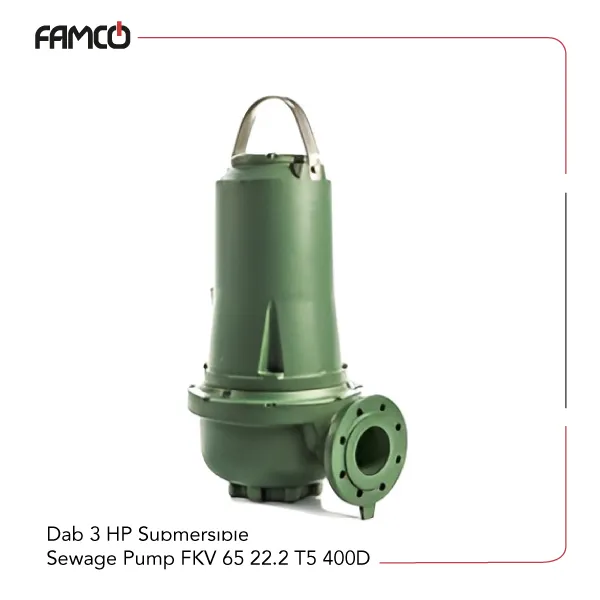

Overview of Dab 3 HP Submersible Sewage Pump FKV 65 22.2 T5 400D

The FKV 65 22.2 T5 400D pump, produced by Dab, is a 3 HP powerful waste management solution, designed for handling liquids with solids. Its vortex impeller allows it to manage debris efficiently, making it ideal for wastewater, sewage, and industrial applications. With a cast iron construction and using high-quality seals, this Dab pump performs in submerged conditions with ease. Suitable for various environments, it can operate at different depths and temperatures, providing flexibility for different setups. Its high flow rate and head capacity make it suitable for demanding tasks, ensuring efficient fluid transfer in commercial and industrial settings.

Dab 3 HP Submersible Sewage Pump FKV 65 22.2 T5 400D Specifications

This Dab-manufactured pump features a vortex impeller designed for efficient handling of solids with a size range of 65 to 100 mm. It operates within a fluid pH range of 6.5 to 12 and can handle fluid temperatures from 0°C up to 40°C. The maximum installation depth is 20 meters, making this Dab submersible pump suitable for various applications. The impeller is made of durable cast iron, ensuring longevity and resistance to wear. The mechanical seals on the pump side are made of SiC/SiC, providing high durability, while the motor side seals are SiC/Carbon for reliable sealing. It can achieve a maximum delivery head of 16.5 meters and a flow rate of up to 720 liters per minute. Powered by a 2.2 kW (3 HP) motor operating at 400 V three-phase voltage, this Dab sewage pump weighs 94 kg, making it robust yet manageable for installation and maintenance.

Specification	Value
Impeller Type	Vortex
Solid Handling	65 – 100 mm
Fluid pH	6.5- 12
Fluid Temperature Range	from 0° to +40°C
Max installation Depth	20 m
Impeller Material	cast iron
Mechanical seal pump side	SiC/SiC
Mechanical seal motor side	SiC/Carbon
Max. delivery head	16.5 m
Max. flow rate	720 l/min
Three-phase voltage	400 V
Power	2.2 kW
Power (HP)	3 HP
Weight	94 kg

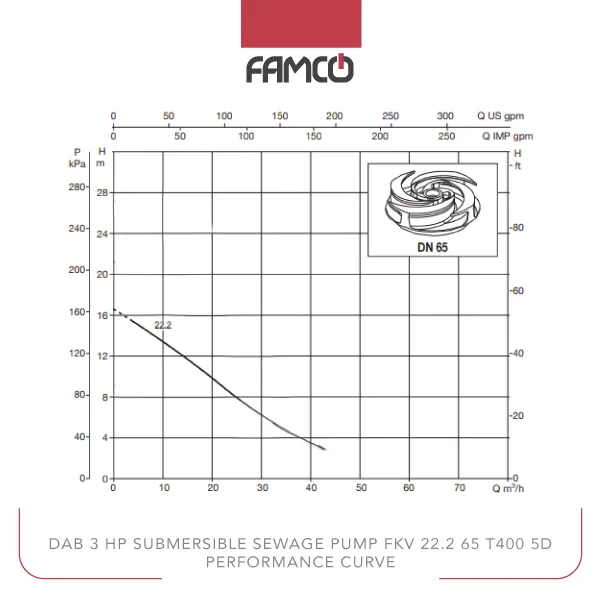

Dab 3 HP Submersible Sewage Pump FKV 65 22.2 T5 400D Performance Data

m3 /h	0	7.2	14.4	21.6	28.8	36	43.2
l/min	0	120	240	360	480	600	720
Head (m)	16.5	14.3	11.8	9.1	6.6	4.3	2.7

Dab 3 HP Submersible Sewage Pump FKV 65 22.2 T5 400D Applications

Wastewater and sewage pumping
Industrial fluid transfer
Flood control and drainage
Construction site dewatering

Dab 3 HP Submersible Sewage Pump FKV 65 22.2 T5 400D Benefits

Handles solids up to 100 mm easily
Durable cast iron construction
High flow rate for efficient operation
Reliable seals for long-term use

Dab 3 HP Submersible Sewage Pump FKV 65 22.2 T5 400D Price List

No.	Name	Price
1	Dab 3 HP Submersible Sewage Pump FKV 65 22.2 T5 400D Price	Contact us

Brand	Dab
Applications	Industrial, Sewage management, Wastewater management
Power (kW)	2.2
Power (HP)	3
Maximum Flow Rate (L/min)	720
Maximum Delivery Head (m)	16.5
