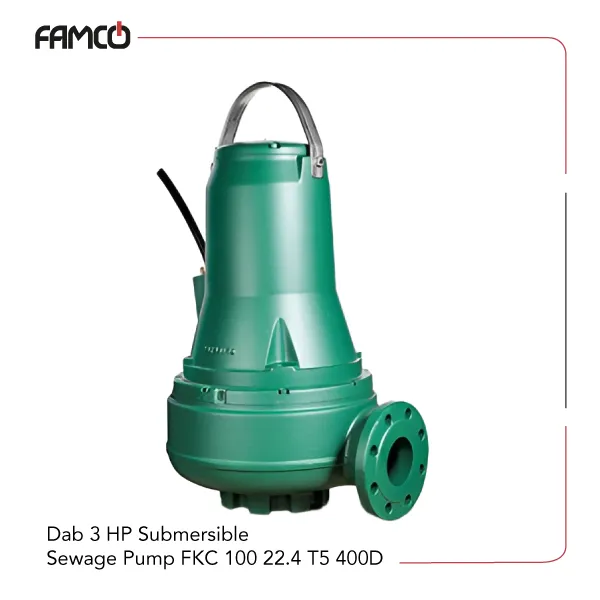

Dab 3 HP Submersible Sewage Pump FKC 100 22.4 T5 400D Specifications
This pump features a single channel impeller made of durable cast iron, designed for efficient fluid movement. It can handle solids up to 100 mm in size, making it suitable for various applications involving semi-solid or slurry materials. The FKC series Dab submersible pump operates within a pH range of 6.5 to 12, allowing it to work with different types of liquids without corrosion issues. It is capable of functioning in fluid temperatures from 0°C to 40°C, ensuring versatility in different environments. The maximum installation depth is 20 meters, which is ideal for submersible or deep well applications. The mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, providing high durability and resistance to wear. With a maximum delivery head of 14.1 meters and a flow rate of up to 2160 liters per minute, this pump offers strong performance for various industrial and municipal uses. It operates on a three-phase power supply of 400 volts, consuming 2.2 kW or 3 horsepower, and weighs approximately 120 kilograms, indicating this Dab sewage pump‘s build suitable for demanding tasks.
| Specification | Value |
| Impeller Type | Single channel |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 14.1 m |
| Max flow rate | 2160 l/min |
| Three-phase voltage | 400 V |
| Power | 2.2 kW |
| Power (HP) | 3 HP |
| Weight | 120 kg |

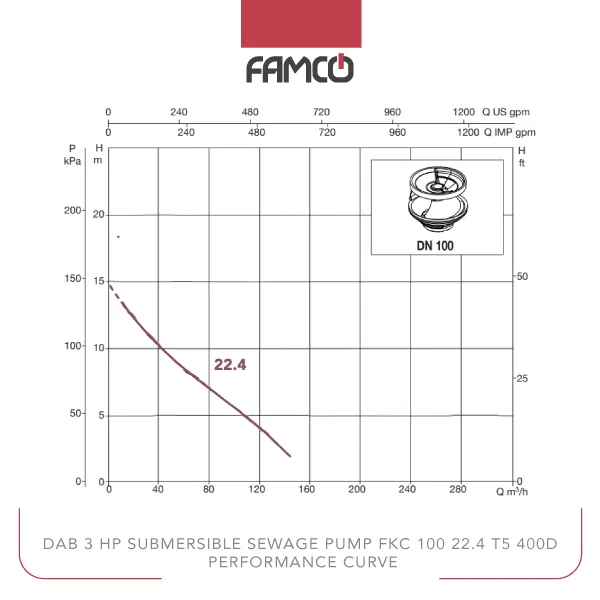

Dab 3 HP Submersible Sewage Pump FKC 100 22.4 T5 400D Performance Data
| m3 /h | 0 | 22 | 43 | 65 | 86 | 108 | 130 |
| l/min | 0 | 360 | 720 | 1080 | 1440 | 1800 | 2160 |
| Head (m) | 14.1 | 11.5 | 9.5 | 7.8 | 6.3 | 4.8 | 3.1 |
Dab 3 HP Submersible Sewage Pump FKC 100 22.4 T5 400D Applications
- Wastewater and sewage pumping
- Slurry and semi-solid fluid transfer
- Industrial fluid handling
- Municipal water management
Dab 3 HP Submersible Sewage Pump FKC 100 22.4 T5 400D Benefits
- Handles solids up to 100 mm easily
- Durable cast iron construction
- High flow rate for efficient operation
- Reliable seals for long-lasting performance
Dab 3 HP Submersible Sewage Pump FKC 100 22.4 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 3 HP Submersible Sewage Pump FKC 100 22.4 T5 400D Price | Contact us |
