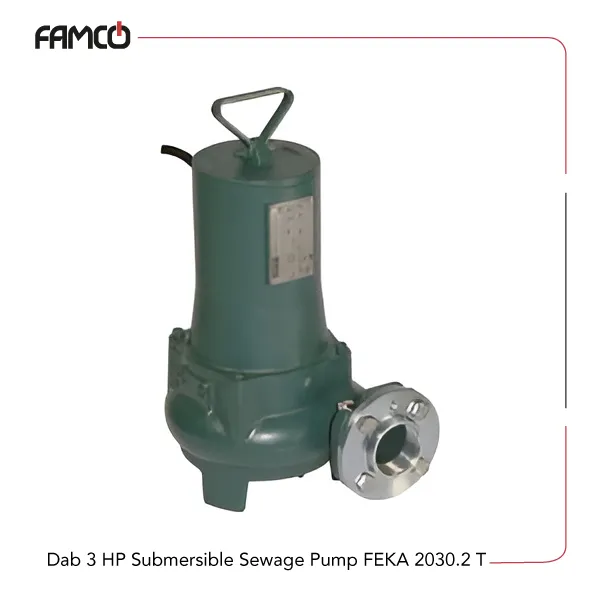

Dab 3 HP Submersible Sewage Pump FEKA 2030.2T Specifications
This wastewater and sewage pump features a vortex impeller made of durable cast iron, designed to handle solids up to 42 mm. It operates efficiently within a pH range of 6 to 11 and can manage fluid temperatures from 0°C to 40°C. The pump can be installed up to 20 meters deep with the appropriate cable length, and it offers flexible installation options, either fixed via a coupling unit or portable in a vertical position. This Dab subemrsible pump runs on a three-phase power supply of 400 V at 50 Hz, providing a maximum delivery head of 21 meters and a flow rate of 600 liters per minute. Weighing 34 kg, this three-phase configured Dab sewage pump is suitable for various industrial, commercial, and private applications, ensuring reliable performance in demanding environments.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 42 mm |
| Fluid | wastewater and sewage from buildings and sites in private, commercial, industrial areas |
| Fluid PH | 6-11 |
| Fluid Temperature Range | 0°C to +40°C |
| Max installation Depth | 20 meters (with proper cable length) |
| Type of installation | fixed by Coupling Unit, portable in vertical position |
| Impeller Material | cast iron |
| Three-phase Voltage | 400 V |
| Frequency | 50 Hz |
| Max delivery head | 21 meters |
| Max flow rate | 600 liters per minute |
| Power | 2.2 kW |
| Power (HP) | 3 HP |
| Weight | 34 kg |

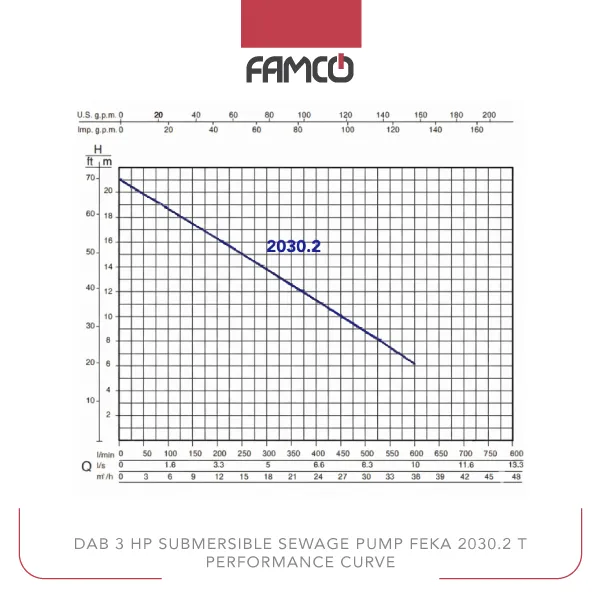

Dab 3 HP Submersible Sewage Pump FEKA 2030.2T Performance Data
| m3 /h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 24 | 30 | 36 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
| Head (m) | 21 | 19.8 | 18.5 | 17.5 | 16 | 15 | 13.8 | 11 | 8.3 | 6 |
Dab 3 HP Submersible Sewage Pump FEKA 2030.2T Applications
- Building sewage systems
- Industrial wastewater management
- Commercial drainage projects
- Private property sewage handling
Dab 3 HP Submersible Sewage Pump FEKA 2030.2T Benefits
- Handles solids up to 42 mm efficiently
- Flexible installation options
- Durable cast iron construction
- High flow rate and maximum head for demanding tasks
Dab 3 HP Submersible Sewage Pump FEKA 2030.2T Price List
| No. | Name | Price |
| 1 | Dab 3 HP Submersible Sewage Pump FEKA 2030.2T Price | Contact us |
