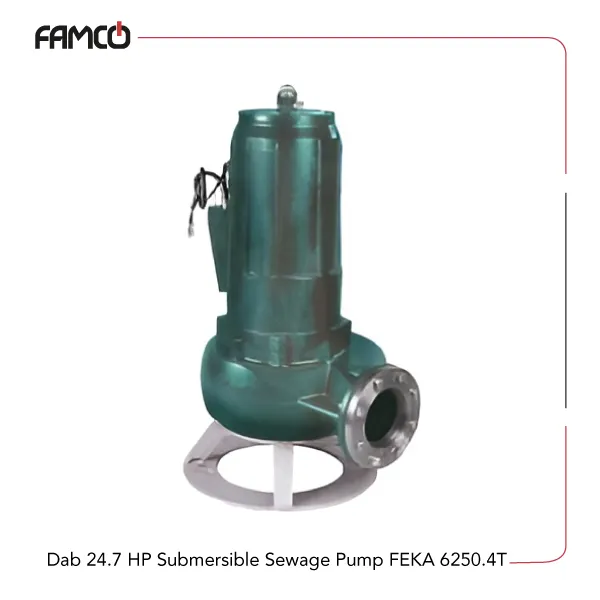

Dab 24.7 HP Submersible Sewage Pump FEKA 6250.4T Specifications
This pump features a single-channel, closed impeller made of durable cast iron, designed for efficient operation in various conditions. It can handle liquids with pH levels from 6 to 11 and operate within a temperature range of 0°C to 40°C. The pump allows for a free solids passage of 95 to 108 mm, making it suitable for handling semi-solid materials or debris. It can be installed either fixed with a coupling device or freely in a vertical position, providing flexibility for different setups. The Dab submersible pump is capable of continuous operation when fully submerged, with a maximum installation depth of 20 meters. It operates on a three-phase power supply of 400 V and delivers a maximum head of 25 meters, with a flow rate reaching up to 7000 liters per minute. The Dab sewage pump‘s power consumption is 18.5 kW (24.7 HP), and it weighs approximately 330 kg, indicating a sturdy and reliable build for demanding applications.
| Specification | Value |
| Type of impeller | single-channel, closed |
| Free solids passage (mm) | 95-108 |
| pH of the liquid | 6 to 11 |
| Liquid temperature range | 0°C to +40°C |
| Maximum installation depth | 20 metres |
| Installation | fixed using a coupling device, or free in the vertical position |
| Continuous duty | yes, with completely submerged pump |
| Impeller material | cast iron |
| Three-phase voltage | 400 V |
| Maximum delivery head (m) | 25 |
| Maximum flow rate (l/min) | 7000 |
| Power (kW) | 18.5 |
| Power (HP) | 24.7 |
| Weight (kg) | 330 |
Dab 24.7 HP Submersible Sewage Pump FEKA 6250.4T Performance Curve
| Q=m3 /h | 0 | 24 | 36 | 48 | 60 | 72 | 90 | 108 | 126 | 150 | 180 | 210 | 240 | 270 | 300 | 360 | 420 |
| Q=l/mi | 0 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2100 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | 6000 | 7000 |
| H (m) | 25 | 24.5 | 24.2 | 24 | 23.5 | 23 | 22.5 | 22 | 21.5 | 20.5 | 19.5 | 18.5 | 17 | 16 | 14 | 11 |
Dab 24.7 HP Submersible Sewage Pump FEKA 6250.4T Applications
- Municipal sewage and drainage systems
- Industrial water transfer
- Flood control and drainage
- Wastewater management
Dab 24.7 HP Submersible Sewage Pump FEKA 6250.4T Benefits
- High flow rate for efficient liquid transfer
- Durable cast iron impeller for longevity
- Flexible installation options
- Suitable for solids-laden liquids
Dab 24.7 HP Submersible Sewage Pump FEKA 6250.4T Price List
| No. | Name | Price |
| 1 | Dab 24.7 HP Submersible Sewage Pump FEKA 6250.4T Price | Contact us |
