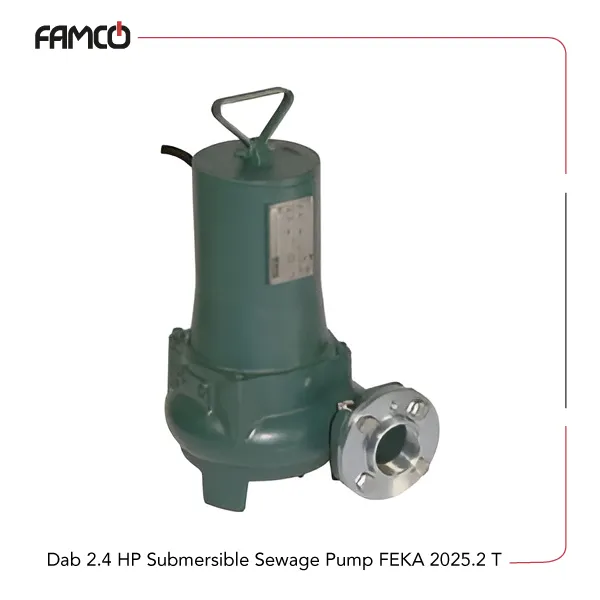

Dab 2.4 HP Submersible Sewage Pump FEKA 2025.2T Specifications
This wastewater and sewage pump features a vortex impeller designed for efficient handling of solids up to 42mm. It operates within a pH range of 6 to 11 and can manage fluid temperatures from 0°C to 40°C, matching a range of different liquids. The pump can be installed up to 20 meters deep with appropriate cable length, and it is suitable for fixed installation using a coupling unit or portable in a vertical position. If you want a Dab submersible pump, check out the FEKA 2025.2T’s features, and it might be the best match to your needs. Made with a durable cast iron impeller, it runs on a three-phase power supply of 400V at 50Hz. The Dab sewage pump delivers a maximum head of 17.5 meters and a flow rate of 600 liters per minute, making it ideal for various industrial, commercial, and private applications. Weighing 33 kg, it combines power and portability for versatile use in wastewater management systems.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 42mm |
| Fluid | wastewater and sewage from buildings and sites in private, commercial, industrial areas |
| Fluid PH | 6-11 |
| Fluid Temperature Range | 0°C to +40°C |
| Max installation Depth | 20 meters (with proper cable length) |
| Type of installation | fixed by Coupling Unit, portable in vertical position |
| Impeller Material | cast iron |
| Three-phase Voltage | 400 V |
| Frequency | 50 Hz |
| Max delivery head | 17.5 meters |
| Max flow rate | 600 liters per minute |
| Power | 1.8 kW |
| Power (HP) | 2.4 HP |
| Weight | 33 kg |

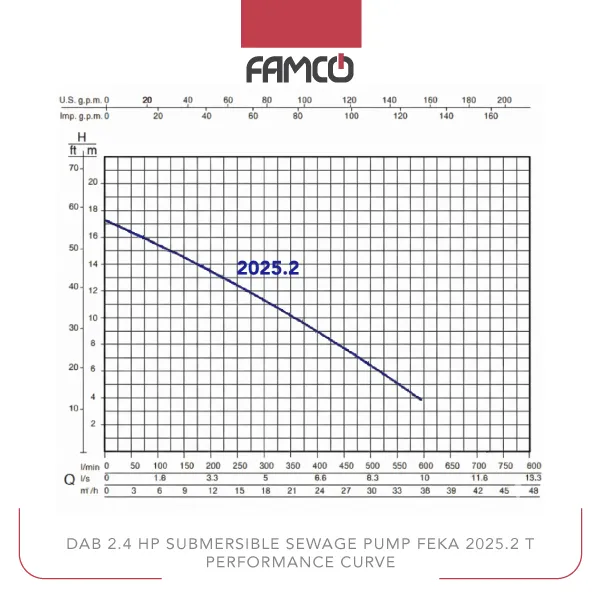

Dab 2.4 HP Submersible Sewage Pump FEKA 2025.2T Performance Data
| m3 /h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 24 | 30 | 36 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
| Head (m) | 17.5 | 16.5 | 15.6 | 14.7 | 13.6 | 12.5 | 11.6 | 9 | 6.5 | 3.8 |
Dab 2.4 HP Submersible Sewage Pump FEKA 2025.2T Applications
- Wastewater treatment in industrial plants
- Sewage pumping in commercial buildings
- Drainage systems for private properties
- Effluent management in construction sites
Dab 2.4 HP Submersible Sewage Pump FEKA 2025.2T Benefits
- High solid handling capacity up to 42mm
- Durable cast iron impeller for long-lasting use
- Flexible installation options, fixed or portable
- Efficient performance with a maximum head of 17.5 meters
Dab 2.4 HP Submersible Sewage Pump FEKA 2025.2T Price List
| No. | Name | Price |
| 1 | Dab 2.4 HP Submersible Sewage Pump FEKA 2025.2T Price | Contact us |
