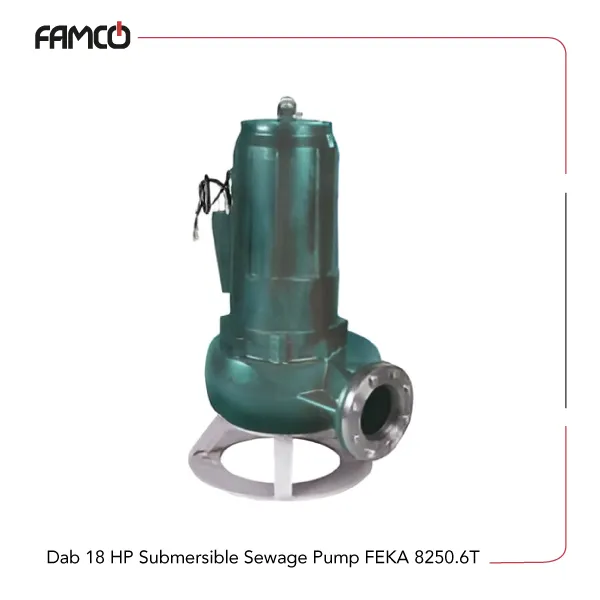

Dab 18 HP Submersible Sewage Pump FEKA 8250.6T

13.5 kW (18 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: DAB Pumps, Dab Sewage Pumps, Dab Submersible Pump

Overview of Dab 18 HP Submersible Sewage Pump FEKA 8250.6T

Dab 18 HP Submersible Sewage Pump FEKA 8250.6T, max flow 10,000 l/min, max delivery head 14.4 m, three-channel closed cast-iron impeller, 80 mm free passage, 18 HP (13.5 kW), weight 465 kg, max immersion 20 m. This industrial sewage pump is engineered for continuous, high-volume wastewater handling in treatment plants, flood control sites, and large-scale transfer applications. Its three-channel cast-iron impeller and closed hydraulics help reduce clogging while withstanding abrasive solids. Built for submerged, continuous duty with vertical installation options, the FEKA 8250.6T performs reliably across typical sewage temperatures and pH ranges. Installers will appreciate its ability to handle high flows without frequent intervention, and maintenance teams will value the straightforward coupling and service access. For municipal and heavy industrial projects that need bulk solids handling and sustained throughput, this model delivers the kind of dependable performance those jobs demand.

Dab 18 HP Submersible Sewage Pump FEKA 8250.6T Specifications

This section focuses on Dab submersible pumps used in sewage and wastewater applications. Dab sewage pumps stand out in large facilities where reliable handling of solids, fluctuating liquid conditions, and long operational cycles matter more than anything. Their engineering supports fixed or free vertical installation, and they maintain performance across challenging pH levels, deep submersion, and demanding flow requirements. With strong cast-iron hydraulic components, these systems are often deployed in treatment plants, municipal pumping stations, emergency drainage operations, and other settings that need stable, high-volume water movement. The ability to pass solids cleanly and sustain continuous duty makes them suitable for both planned and high-pressure situations in the field.

Dab 18 HP Submersible Sewage Pump FEKA 8250.6T

Specification	Value
Impeller Type	three-channel, closed
Free Passage	80 mm
pH of Liquid	6 to 11
Liquid Temperature Range	0°C to +40°C
Max. Immersion Depth	20 m
Installation	fixed using a coupling device, or free in the vertical position, Continuous duty with completely submerged pump
Impeller Material	cast-iron
Max. Delivery Head	14.4 m
Max. Flow Rate	10000 l/min
Three-phase Voltage	400 V
Power	13.5 kW
Power (HP)	18 HP
Weight	465 kg

Dab 18 HP Submersible Sewage Pump FEKA 8250.6T Performance Data

m3 /h	0	24	36	48	60	72	90	108	126	150	180	210	240	270	300	360	420	480	600
l/min	0	400	600	800	1000	1200	1500	1800	2100	2500	3000	3500	4000	4500	5000	6000	7000	8000	10000
Head (m)	14.4	14	13.7	13.5	13.2	13	12.6	12.34	12	11.52	11.1	10.6	10	9.4	8.7	7.3	6.5	5.5	3.3

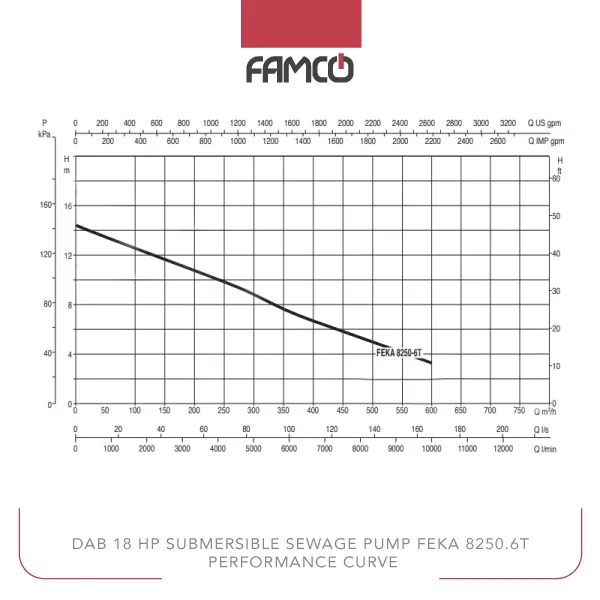

Dab 18 HP Submersible Sewage Pump FEKA 8250.6T Performance Curve

Dab 18 HP Submersible Sewage Pump FEKA 8250.6T Applications

Wastewater and sewage transfer
Flood control and drainage
Industrial water pumping
Large-scale irrigation systems

Dab 18 HP Submersible Sewage Pump FEKA 8250.6T Benefits

High flow capacity for efficient water transfer
Durable cast-iron impeller for long-lasting use
Flexible installation options for various environments
Reliable performance under continuous operation

Dab 18 HP Submersible Sewage Pump FEKA 8250.6T Price List

No.	Name	Price
1	Dab 18 HP Submersible Sewage Pump FEKA 8250.6T Price	Contact us

Brand	Dab
Applications	Industrial areas, Sewage management, Wastewater management
Power (kW)	13.5
Power (HP)	18
Maximum Flow Rate (L/min)	10000
Maximum Delivery Head (m)	14.4
Impeller Material	Cast Iron
