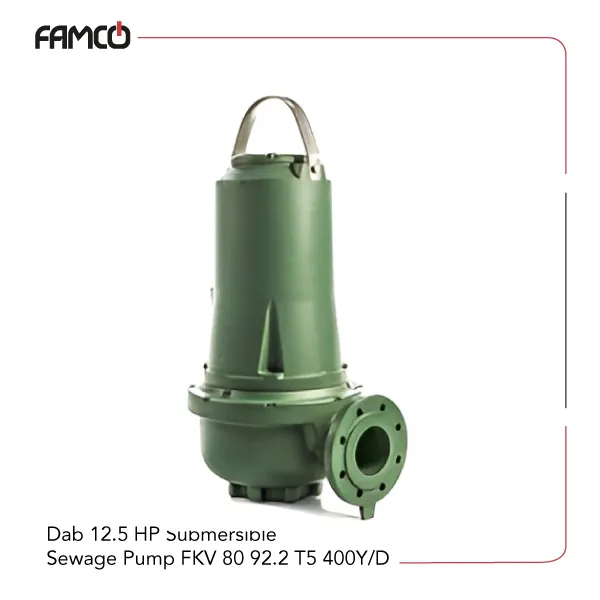

Dab 12.5 HP Submersible Sewage Pump FKV 80 92.2 T5 400Y/D Specifications
This pump features a vortex impeller made of durable cast iron, designed for handling solids between 65 and 100 mm. It operates efficiently within a pH range of 6.5 to 12 and can manage fluid temperatures from 0°C up to 40°C. The maximum installation depth is 20 meters, making a suitable solution out of this Dab sewage pump for various submerged applications. The pump’s mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, ensuring reliable sealing and longevity. It can achieve a maximum delivery head of 36.2 meters and a flow rate of up to 1680 liters per minute. Powered by a 400V three-phase system, the FKV series Dab submersible pump delivers 9.2 kW (or 12.5 HP) of power. The pump weighs approximately 202 kg, indicating a robust build for demanding tasks.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 36.2 m |
| Max flow rate | 1680 l/min |
| Three-phase voltage | 400 V |
| Power | 9.2 kW |
| Power (HP) | 12.5 HP |
| Weight | 202 kg |

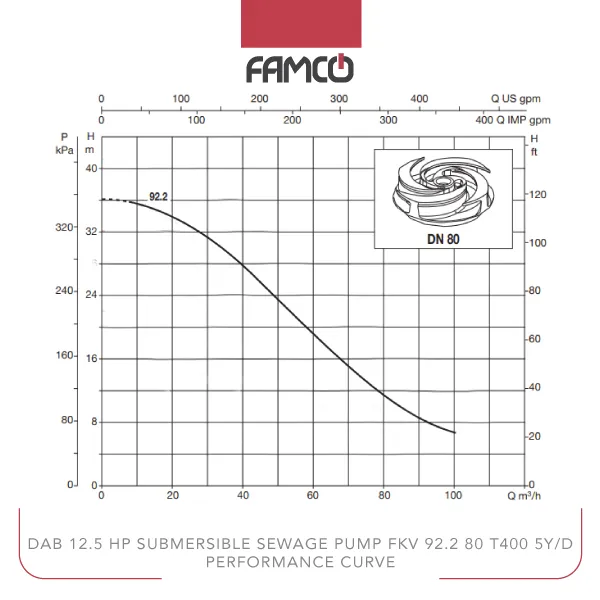

Dab 12.5 HP Submersible Sewage Pump FKV 80 92.2 T5 400Y/D Performance Data
| m3 /h | 0 | 7.2 | 14.4 | 21.6 | 28.8 | 36 | 43.2 | 50.4 | 57.6 | 64.8 | 72 | 79.2 | 86.4 | 93.6 | 100.8 |
| l/min | 0 | 120 | 240 | 360 | 480 | 600 | 720 | 840 | 960 | 1080 | 1200 | 1320 | 1440 | 1560 | 1680 |
| Head (m) | 36.2 | 35.9 | 35.1 | 33.7 | 31.7 | 29.2 | 26.4 | 23.4 | 20.3 | 17.3 | 14.3 | 11.7 | 9.5 | 7.7 | 6.6 |
Dab 12.5 HP Submersible Sewage Pump FKV 80 92.2 T5 400Y/D Applications
- Wastewater and sewage pumping
- Industrial fluid transfer
- Flood control and drainage
- Construction site dewatering
Dab 12.5 HP Submersible Sewage Pump FKV 80 92.2 T5 400Y/D Benefits
- Handles solids up to 100 mm efficiently
- Reliable operation with high durability materials
- Suitable for deep submerged applications
- High flow rate for quick fluid transfer
Dab 12.5 HP Submersible Sewage Pump FKV 80 92.2 T5 400Y/D Price List
| No. | Name | Price |
| 1 | Dab 12.5 HP Submersible Sewage Pump FKV 80 92.2 T5 400Y/D Price | Contact us |
