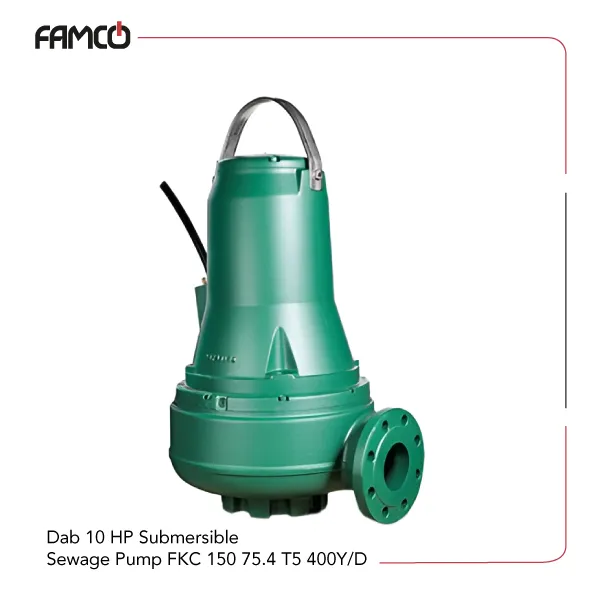

Dab 10 HP Submersible Sewage Pump FKC 150 75.4 T5 400Y/D Specifications
Equipped with a cast iron single-channel impeller, this pump efficiently manages solids up to 100 mm, making it suitable for demanding sewage and wastewater tasks. Designed to operate within a pH range of 6.5 to 12 and fluid temperatures from 0°C to 40°C, it can be installed at depths up to 20 meters. Mechanical seals on the pump side (SiC/SiC) and motor side (SiC/Carbon) provide durability and leak resistance. Running on a 10 HP (7.5 kW), 400 V three-phase motor, this Dab sewage pump delivers a maximum head of 20.9 meters and a flow rate of 5040 liters per minute. The Dab submersible pump weighs 235 kg and is engineered for reliability in industrial and municipal environments.
| Specification | Value |
| Impeller Type | Single channel |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 20.9 m |
| Max flow rate | 5040 l/min |
| Three-phase voltage | 400 V |
| Power | 7.5 kW |
| Power (HP) | 10 HP |
| Weight | 235 kg |

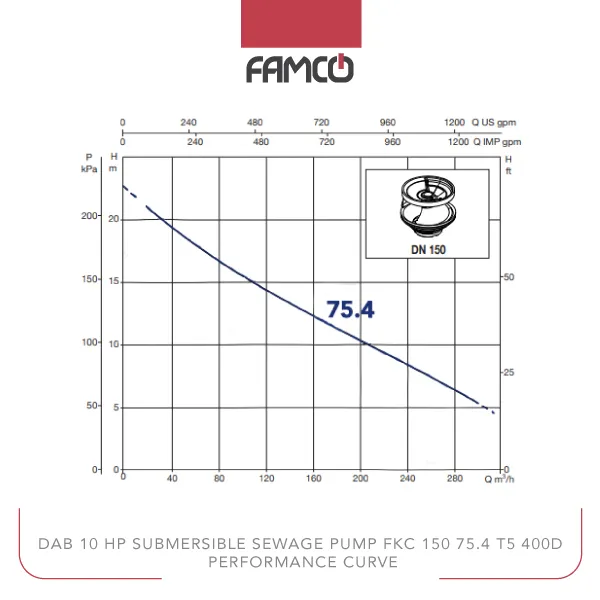

Dab 10 HP Submersible Sewage Pump FKC 150 75.4 T5 400Y/D Performance Data
| m3 /h | 0 | 22 | 43 | 65 | 86 | 108 | 130 | 151 | 173 | 194 | 216 | 238 | 259 | 281 | 302 |
| l/min | 0 | 360 | 720 | 1080 | 1440 | 1800 | 2160 | 2520 | 2880 | 3240 | 3600 | 3960 | 4320 | 4680 | 5040 |
| Head (m) | 20.9 | 19.2 | 17.7 | 16.3 | 15 | 13.8 | 12.6 | 11.6 | 10.5 | 9.5 | 8.6 | 7.6 | 6.6 | 5.5 | 4.4 |
Dab 10 HP Submersible Sewage Pump FKC 150 75.4 T5 400Y/D Applications
- Wastewater and sewage pumping
- Drainage systems in construction sites
- Industrial fluid transfer
- Flood control and water management
Dab 10 HP Submersible Sewage Pump FKC 150 75.4 T5 400Y/D Benefits
- High flow capacity for large volumes
- Durable cast iron construction
- Handles solids up to 100 mm
- Long-lasting mechanical seals
Dab 10 HP Submersible Sewage Pump FKC 150 75.4 T5 400Y/D Price List
| No. | Name | Price |
| 1 | Dab 10 HP Submersible Sewage Pump FKC 150 75.4 T5 400Y/D Price | Contact us |
