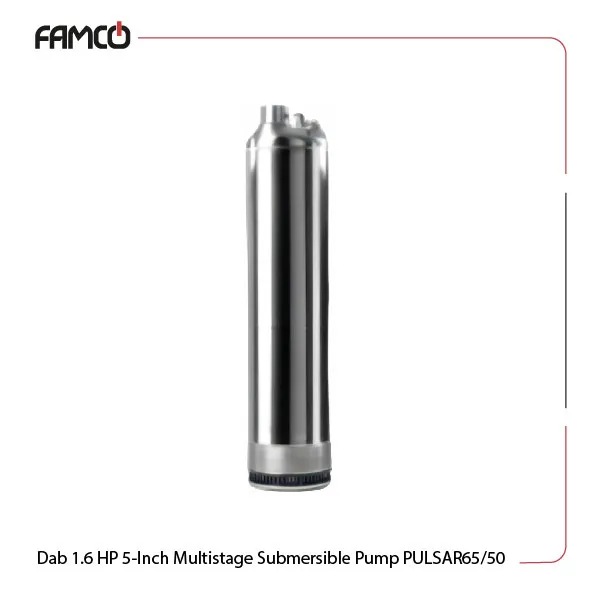

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR65/50 Specifications
This product, making it versatile for various setups. This Dab multistage submersible pump runs at a frequency of 50 Hz and offers a solid protection class of IP68 to make sure it is dust-tight and can withstand submersion in water. The insulation class is rated F for added protection and excellent thermal heat insulation. For added convenience, the single-phase version can be equipped with an optional automatic operation feature using a float switch. The impeller is made from durable technopolymer to increase its longevity. The seal lubrication fluid used is ESSO MARCOL 172 OIL, which ensures smooth operation. The mechanical seals are designed for reliability, with the upper seal made of NBR/CERAMIC/CARBON and the lower seal composed of NBR/SILICON/CARBON. The power output is 1.2 kW (1.6 HP), and it can achieve a height range of 29 to 86 meters. The product weighs 19.5 kg to make it easy to install and maintain.
| Specification | Value | |
| Voltage (V) | single-phase | 220/240 |
| three-phase | 400 | |
| Frequency (Hz) | 50 | |
| Protection class | IP68 | |
| Insulation class | F | |
| Power (kW) | 1.2 | |
| Power (HP) | 1.6 | |
| H (m) | 29-86 | |
Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR65/50 Materials
- Impeller: Technopolymer
- Seal lubrication: FLUID ESSO MARCOL 172 OIL
- Complete upper mechanical seal: NBR/Ceramic/Carbon
- Complete lower mechanical seal: NBR/Silicon/Carbon

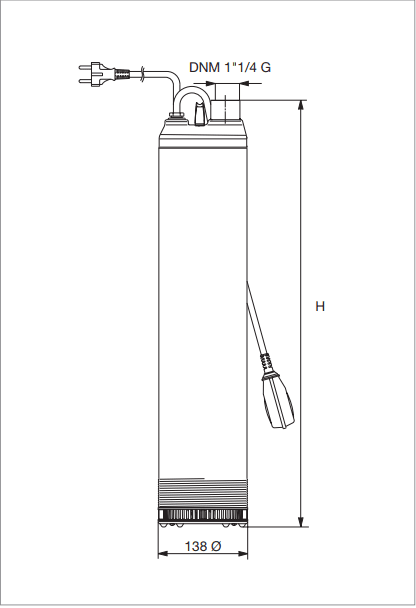

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR65/50 Dimensions and Weight
| Dimensions (mm) | Weight (kg) |
| H | 19.5 |
| 562 |
Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR65/50 Technical Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 |
| l/min | 0 | 20 | 40 | 60 | 80 |
| H (m) | 86 | 78.5 | 70 | 52.8 | 29 |

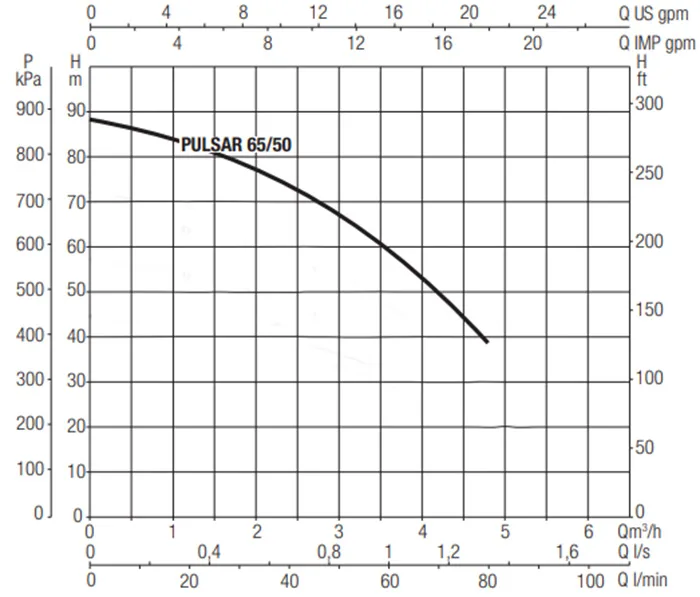

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR65/50 Performance Curve
Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR65/50 Applications
- Residential drainage systems
- Irrigation in agricultural settings
- Wastewater management in industrial facilities
- Flood control and emergency drainage
Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR65/50 Benefits
- Durable construction with IP68 protection
- Versatile voltage options for different setups
- Efficient power output for high performance
- Optional automatic operation for ease of use
Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR65/50 Price List
| No. | Name | Price |
| 1 | Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR65/50 Price | Contact us |
