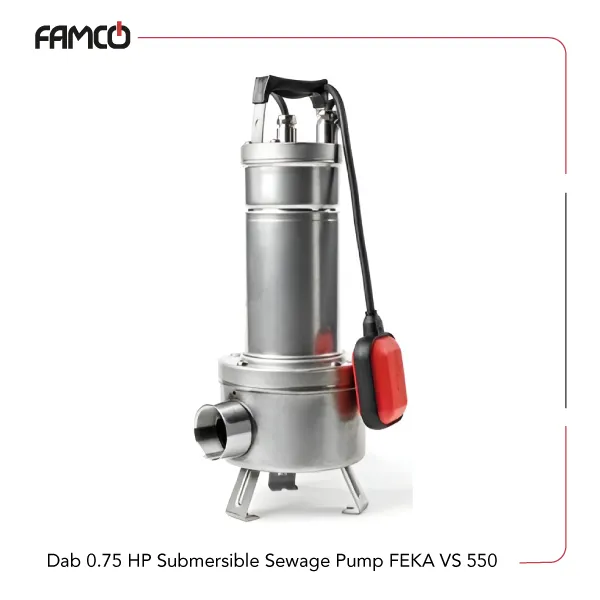

Dab 0.75 HP Submersible Sewage Pump FEKA VS 550 Specifications
This pump is designed for versatile applications, featuring a solids-free passage of 50 mm, making it suitable for handling various liquids with solids. It operates efficiently within a temperature range of 0°C to 35°C for domestic use, and up to 50°C for other applications. The Dab submersible pump‘s maximum ambient temperature is 40°C, ensuring reliable operation in different environments. It can be submerged up to 7 meters deep, ideal for deep well or sump pumping. The motor is protected with an IP 68 class, providing excellent water resistance, and has an insulation class F for safety and durability. It supports both single-phase and three-phase power supplies, with voltages of 220-240V and 380-415V respectively. Installation options include fixed or portable setups in a vertical position, offering flexibility for various settings. The pump body and impeller inside this Dab sewage pump are made from high-quality AISI 304 stainless steel, ensuring corrosion resistance and longevity. Mechanical seals are composed of silicon carbide on both sides on the pump, with carbon and alumina on the motor side, providing a tight seal and reducing leaks. The pump can deliver a maximum head of 7.4 meters and flow rate of 300 liters per minute, with a power consumption of 0.55 kW (0.75 HP). It weighs approximately 16.3 kg, making it manageable for installation and maintenance tasks.
| Specification | Value |
| Solids free passage | 50 mm |
| Liquid temperature range | 0 °C to +35 °C for domestic use, 0 °C to +50 °C for other uses |
| Maximum ambient temperature | +40 °C |
| Maximum immersion depth | 7 metres |
| Motor protection class | IP 68 |
| Insulation class | F |
| Standard voltage | 220-240 V – 50Hz single-phase, 380-415 V – 50Hz three-phase |
| Installation | fixed or portable, vertical position |
| Pump body | AISI 304 Stainless Steel |
| Impeller | AISI 304 Stainless Steel |
| Mechanical seal | Silicon carbide/Silicon carbide on pump side, Carbon/Alumina on motor side |
| Max. delivery head | 7.4 m |
| Max. flow rate | 300 l/min |
| Power | 0.55 kW |
| Power (HP) | 0.75 |
| Weight | 16.3 kg |

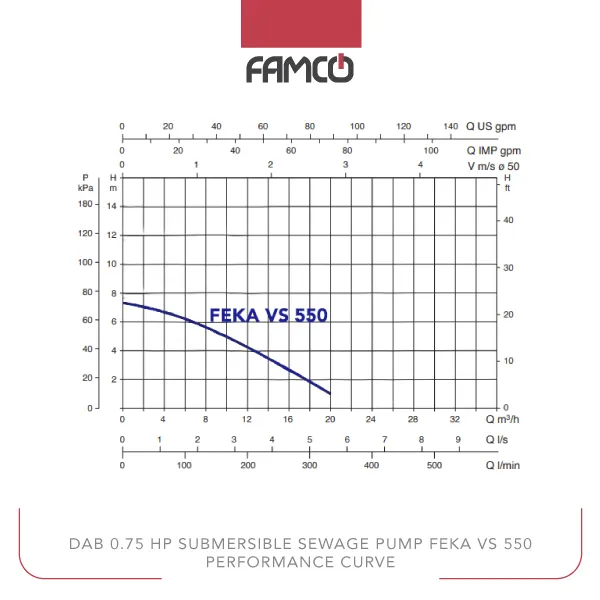

Dab 0.75 HP Submersible Sewage Pump FEKA VS 550 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| head (m) | 7.4 | 6.9 | 6.2 | 5.6 | 4.1 | 3.2 | 1.8 |
Dab 0.75 HP Submersible Sewage Pump FEKA VS 550 Applications
- Water transfer in wells and sumps
- Irrigation systems in agriculture
- Industrial liquid handling
- Water features and fountains
Dab 0.75 HP Submersible Sewage Pump FEKA VS 550 Benefits
- High durability with stainless steel construction
- Versatile installation options
- Efficient performance with high flow rate
- Reliable operation with water-resistant motor
Dab 0.75 HP Submersible Sewage Pump FEKA VS 550 Price List
| No. | Name | Price |
| 1 | Dab 0.75 HP Submersible Sewage Pump FEKA VS 550 Price | Contact us |
