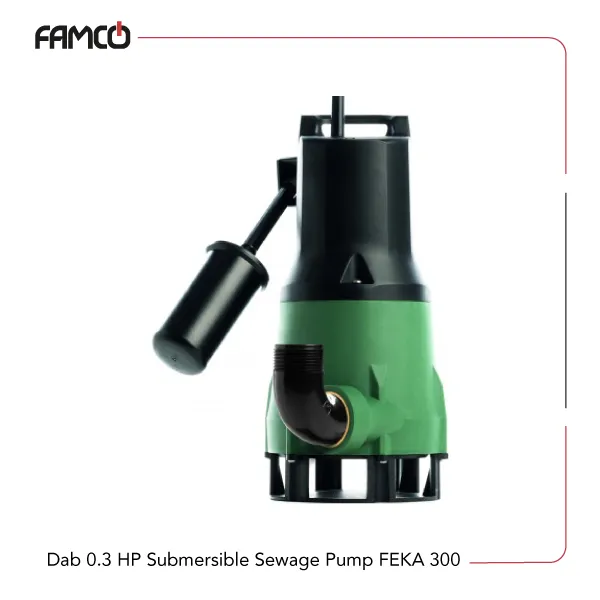

Dab 0.3 HP Submersible Sewage Pump FEKA 300 Specifications
This pump is designed for reliable operation in various environments, supporting a maximum immersion depth of 7 meters. It features a free passage of 25 mm, allowing it to handle solids or debris without clogging. The minimum intake level is 38 mm, ensuring efficient water intake. It supports liquid temperatures from 0°C up to 35°C for domestic applications, and up to 50°C for other uses, making this Dab submersible pump versatile for different water types. The pump boasts an IP 68 protection class, making it highly resistant to dust and water ingress, suitable for outdoor or harsh environments. Its motor insulation is rated F, providing safety and durability. The impeller and pump body are made from technopolymer, which offers strength and corrosion resistance. It operates on a single-phase power supply of 230 V at 50 Hz, with a maximum flow rate of 200 liters per minute and a maximum delivery head of 6.4 meters. The motor inside this Dab sewage pump has a power reaching 0.22 kW, equivalent to 0.3 HP, ensuring efficient performance for various pumping needs.
| Specification | Value |
| Maximum immersion depth | 7 m |
| Free passage | 25 mm |
| Minimum intake level | 38 mm |
| Supported liquid temperature min. | +0°C |
| Supported liquid temperature max. | +35°C for domestic use, +50°C for other uses |
| Class of protection | IP 68 |
| Motor insulation class | F |
| Impeller | technopolymer |
| Pump body | technopolymer |
| Single phase power input | 230 V 50 Hz |
| Max. flow rate | 200 l/min |
| Max. delivery head | 6.4 m |
| Power | 0.22 kW |
| Power (HP) | 0.3 HP |

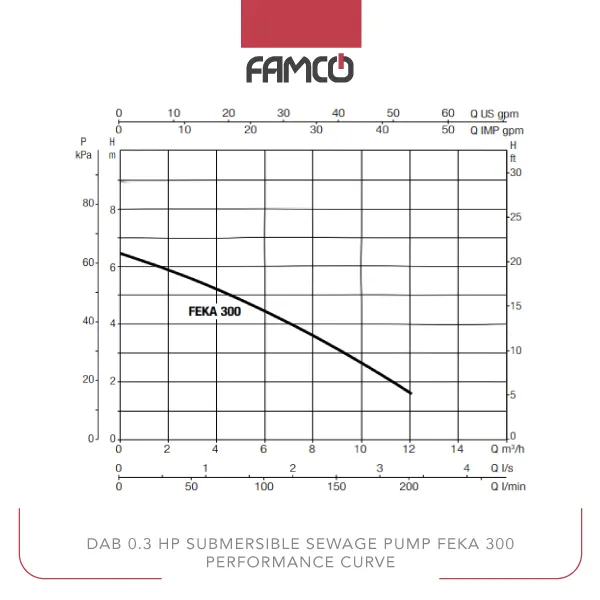

Dab 0.3 HP Submersible Sewage Pump FEKA 300 Performance Data
| m³h | 0 | 3 | 6 | 9 | 12 |
| l/min | 0 | 50 | 100 | 150 | 200 |
| head (m) | 6.4 | 5.5 | 4.4 | 3.1 | 1.6 |
Dab 0.3 HP Submersible Sewage Pump FEKA 300 Applications
- Domestic water pumping and drainage
- Irrigation systems for gardens and farms
- Industrial water transfer and drainage
- Flood and emergency water removal
Dab 0.3 HP Submersible Sewage Pump FEKA 300 Benefits
- High durability with technopolymer parts
- Supports a wide range of water temperatures
- Resistant to dust and water ingress (IP 68)
- Efficient with a flow rate of 200 l/min and 6.4 m head
Dab 0.3 HP Submersible Sewage Pump FEKA 300 Price List
| No. | Name | Price |
| 1 | Dab 0.3 HP Submersible Sewage Pump FEKA 300 Price | Contact us |
