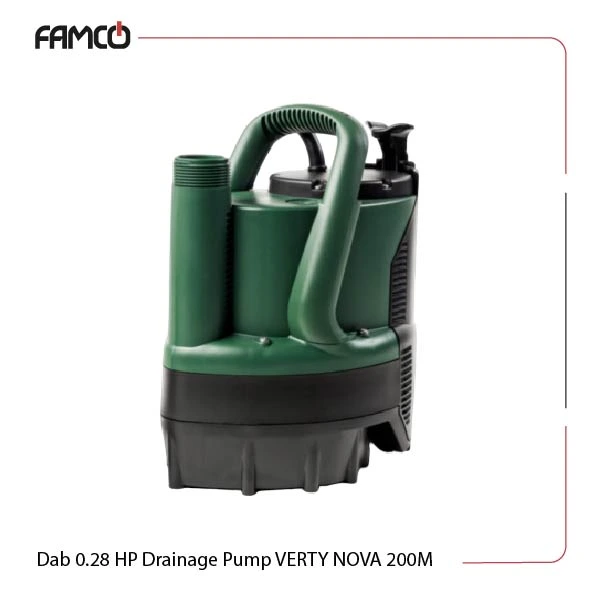

Dab 0.28 HP Drainage Pump VERTY NOVA 200M Specifications
This Dab pump passes dirty water through as long as it does not contain fibers. It supports passing liquids with temperatures ranging from 0 °C to +35 °C. This Dab pump does not fall short of the immersion depth requirements of submersible pumps with a maximum of 7 meters for deeper settings. The motor and rotor shaft are made from durable stainless steel, while the impeller and body are crafted from technopolymer to enhance longevity and resistance to wear as much as possible. This pump operates at a power of 0.2 kW (0.28 HP) and requires a voltage of 230 V with a frequency of 50 Hz. It also achieves a head of 1.8 to 6.9 meters based on measurements, which is significant in a drainage pump. The motor case is constructed from AISI 304 stainless steel to give the product additional protection.
| Specification | Value |
| Liquid temperature range | from 0 °C to +35 °C for domestic use |
| Pumped liquid | dirty water without fibers |
| Pump priming limit | 10-15 mm in manual operation |
| Max. immersion depth | 7 meters |
| Power (kW) | 0.2 |
| Power (HP) | 0.28 |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Head (m) | 1.8-6.9 |
Dab 0.28 HP Drainage Pump VERTY NOVA 200M Materials
- Motor: Stainless steel
- Rotor shaft: Stainless steel
- Impeller: technopolymer
- Body: technopolymer
- Motor case: AISI 304 STAINLESS STEEL X5 CrNi 1810 – UNI 6900/71
- Motor shaft: AISI 416 STAINLESS STEEL UNI EN 10088-1 X12CRS13
Dab 0.28 HP Drainage Pump VERTY NOVA 200M Dimension and Weight
| Dimensions (mm) | Weight (kg) | ||||||
| Model | A | B | C | ØD | H | H1 | |
| NOVA UP 600 M-A | 158 | 225 | 200 | 33 | 318 | 265 | 4.2 |
Dab 0.28 HP Drainage Pump VERTY NOVA 200M Technical Data
| Q= m3 /h | 0 | 1 | 2 | 3 | 4.5 | 5 | 6 | 7 |
| Q=l/min | 0 | 16.6 | 33.3 | 50 | 75 | 83.3 | 100 | 116.6 |
| H (m) | 6.9 | 6.5 | 6 | 5.8 | 4.5 | 4 | 3 | 1.8 |

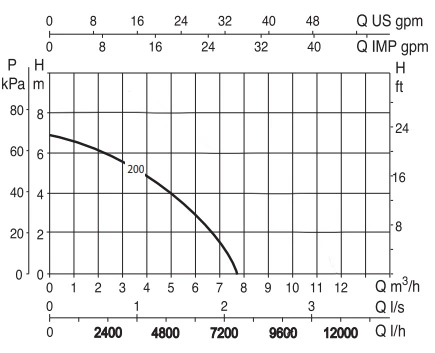

Dab 0.28 HP Drainage Pump VERTY NOVA 200M Performance Curve
Dab 0.28 HP Drainage Pump VERTY NOVA 200M Applications
- Draining water from basements or flooded areas
- Emptying swimming pools or spas
- Irrigation systems for gardens
- Pumping dirty water from construction sites
Dab 0.28 HP Drainage Pump VERTY NOVA 200M Benefits
- Durable construction with stainless steel and technopolymer
- Efficient operation in a wide temperature range
- User-friendly with low priming requirements
- Versatile for various domestic water pumping needs
Dab 0.28 HP Drainage Pump VERTY NOVA 200 M Price List
| No. | Name | Price |
| 1 | Dab 0.28 HP Drainage Pump VERTY NOVA 200M Price | Contact us |
