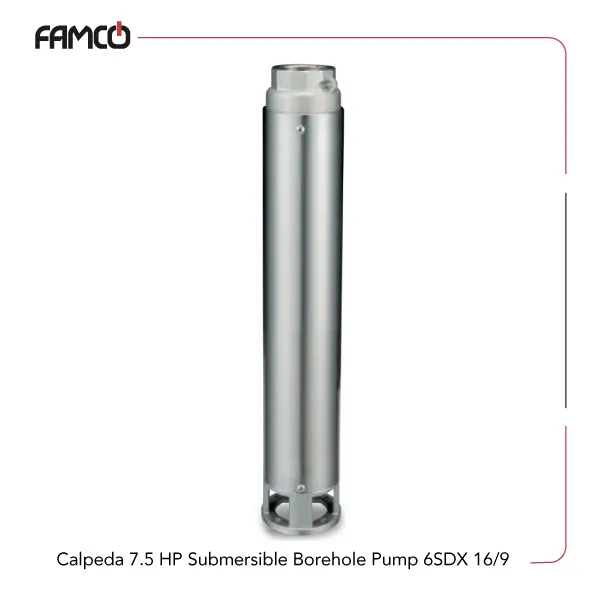

Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/9

Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/9 Specifications

This product is a robust three-phase pump designed for demanding applications. It operates at voltages of 400 V or 690 V, with a power output of 5.5 kW, equivalent to 7.5 HP. The pump can deliver water up to a height of 97 meters and handle a maximum flow rate of 383 liters per minute. This Calpeda submersible pump runs at approximately 2900 revolutions per minute and is suitable for liquids at temperatures up to 30°C. The device can manage water with sand content up to 50 grams per cubic meter, making it ideal for environments with some particulate matter. It features a two-pole motor operating at 50 Hz frequency and can be submerged up to 150 meters deep. Its IP 68 protection rating ensures durability and resistance to dust and water ingress, suitable for harsh conditions and outdoor use.



Specification	Value
Three-phase voltage	400 V; 400/690 V
Power	5.5 kW
Power (HP)	7.5 HP
Max. delivery head	97 m
Max. flow rate	383 l/min
Speed	≈ 2900 rpm
Liquid temperature	30 °C
Maximum amount of sand in water	50 g/m3
Number of poles	2
Frequency	50 Hz
Max. immersion depth	150 m
Protection	IP 68

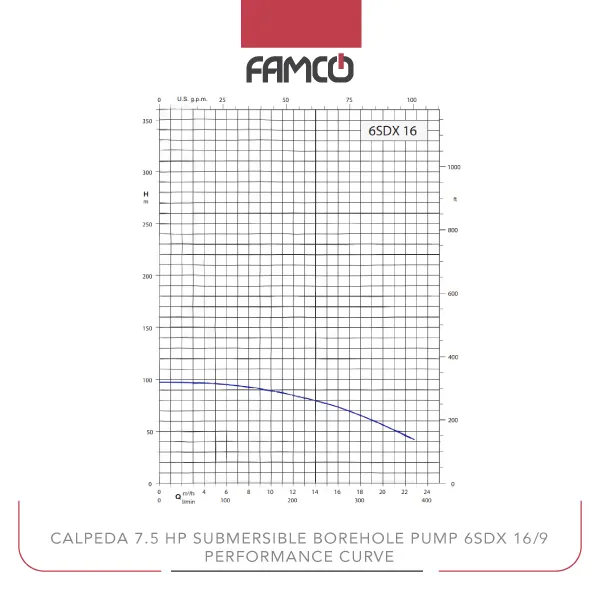

Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/9 Performance Data

m³/h	0	3	6	9	12	15	18	21	23
l/min	0	50	100	150	200	250	300	350	383
head (m)	97	97	95	91	85	77	65	51	42





Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/9 Applications

• Water transfer in industrial settings
• Irrigation systems for agriculture
• Deep well water extraction
• Flood control and drainage



Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/9 Benefits

• High efficiency with powerful motor
• Durable IP 68 protection rating
• Capable of handling sandy water
• Suitable for deep immersion up to 150 meters



Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/9 Price List

No.	Name	Price
1	Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/9 Price	Contact us
