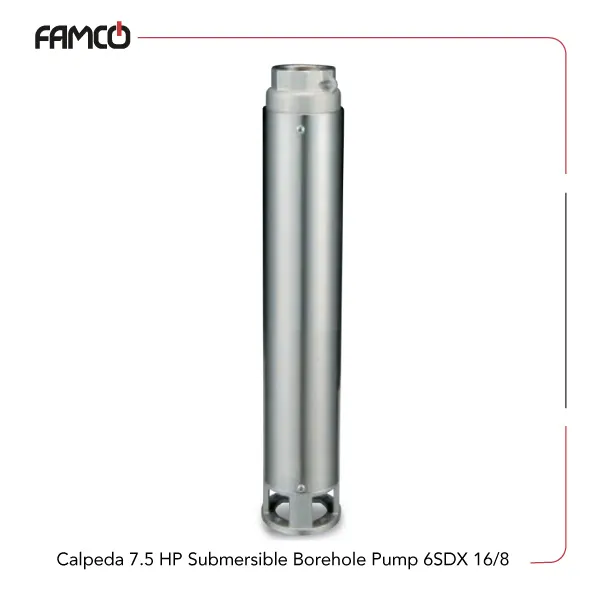

Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/8

5.5 kW (7.5 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Calpeda Pumps, Calpeda Submersible Pumps

Overview of Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/8

The 6SDX 16/8 remains a powerful 6-inch three-phase pumping solution from Calpeda since it provides users with heads of up to 85 meters. Its high power and durable design allow it to operate efficiently in challenging environments. Suitable for deep water applications, it can handle sandy water and withstand harsh conditions. Built from durable materials, this submersible pumping solution has become one of the best choices for both industrial and residential use, especially where water needs to be moved over long distances or depths.

Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/8 Specifications

This three-phase Calpeda pump operates on a supply of 400 V or 690 V, delivering a power output of 5.5 kW or 7.5 HP. It features a maximum delivery head of 85 meters and can handle a flow rate of up to 383 liters per minute, making it suitable for various water transfer tasks. The pump runs at approximately 2900 RPM and is designed to work efficiently with water temperatures up to 30 °C. It can handle water with a sand content of up to 50 grams per cubic meter, ensuring durability in sandy environments. Equipped with 2 poles and operating at a frequency of 50 Hz, this Calpeda submersible pump gives you the advantage of supporting deep immersion up to 150 meters. Its IP 68 protection rating guarantees resistance to dust and water, suitable for demanding outdoor or submerged applications.

Specification	Value
Three-phase voltage (V)	400 V; 400/690 V
Power (kW)	5.5
Power (HP)	7.5
Max. delivery head (m)	85
Max. flow rate (l/min)	383
Speed (rpm)	≈ 2900
Liquid temperature	30 °C
Maximum amount of sand in water (g/m3)	50
Number of poles	2
Frequency (Hz)	50
Max. immersion depth (m)	150
Protection	IP 68

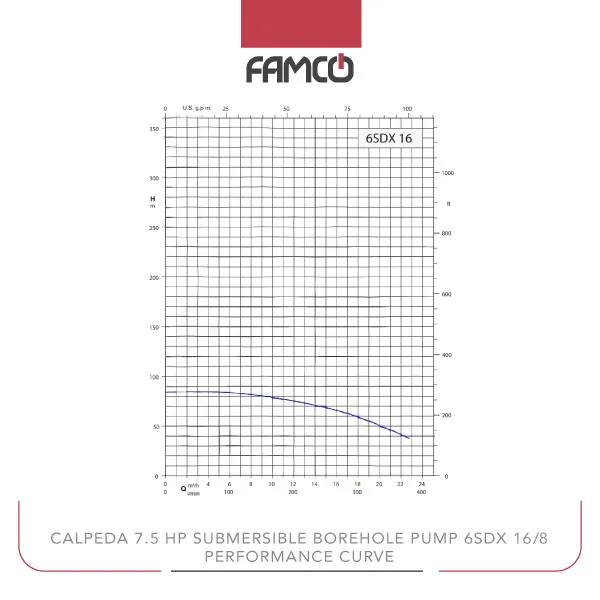

Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/8 Performance Data

m³/h	0	3	6	9	12	15	18	21	23
l/min	0	50	100	150	200	250	300	350	383
head (m)	85	85	84	80	75	68	59	46	37

Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/8 Applications

Irrigation systems in agriculture
Deep well water extraction
Drainage and flood control
Industrial water transfer

Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/8 Benefits

High efficiency with powerful motor
Deep immersion capability up to 150 meters
Durable construction with IP 68 protection
Handles sandy water with ease

Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/8 Price List

No.	Name	Price
1	Calpeda 7.5 HP Submersible Borehole Pump 6SDX 16/8 Price	Contact us

Brand	Calpeda
Applications	Deep well water extraction, Water Supply Connections, Water supply systems
Power (kW)	5.5
Power (HP)	7.5
Maximum Delivery Head (m)	85
Maximum Flow Rate (L/min)	383
Speed (RPM)	2900
