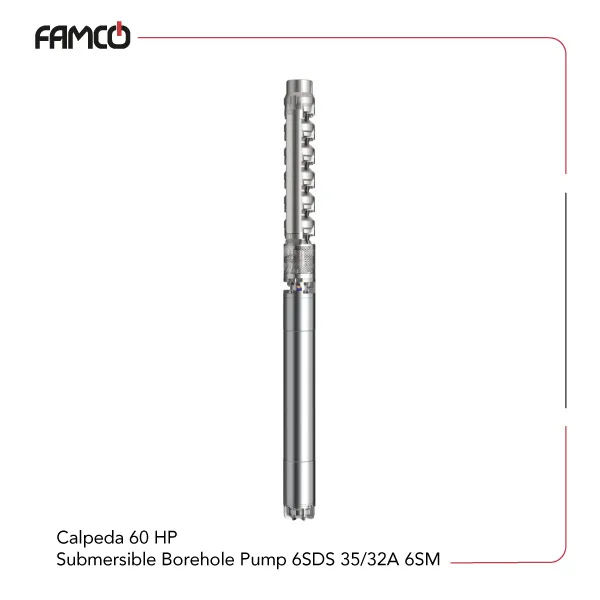

Calpeda 60 HP Submersible Borehole Pump 6SDS 35/32A 6SM Specifications
This heavy-duty three-phase submersible pump features a powerful 45 kW (60 HP) motor with 35 stages, designed for demanding applications. It can operate at a maximum immersion depth of 150 meters and handle a flow rate of up to 767 liters per minute. The pump from Calpeda 6SDS collection can generate a maximum head height of 442 meters, making it suitable for deep well and high-pressure applications. It runs on a 50 Hz frequency with a two-pole motor, compatible with three-phase voltages of 400V or 400/690V. The Calpeda submersible pump model presented here (the 35/32A 6SDS series) is built with a durable cast iron impeller and a stainless steel motor shaft, ensuring longevity and resistance to corrosion. Its protection degree is IP 68, providing excellent waterproofing and dust resistance, ideal for harsh environments. The pump can handle sand content up to 100 grams per cubic meter, making it suitable for water with some particulate matter. Overall, this pump is engineered for reliability, efficiency, and high performance in industrial and municipal water management systems.
| Specification | Value |
| Power (kW) | 45 |
| Power (HP) | 60 |
| Number of stages | 35 |
| Max. immersion depth (m) | 150 |
| Max. flow rate (l/min) | 767 |
| Max. head height (m) | 442 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Sand content max. (g/m3) | 100 |
| Three-phase voltage (V) | 400, 400/690 |
| Protection degree | IP 68 |
| Impeller | Cast iron |
| Motor shaft | Stainless steel |

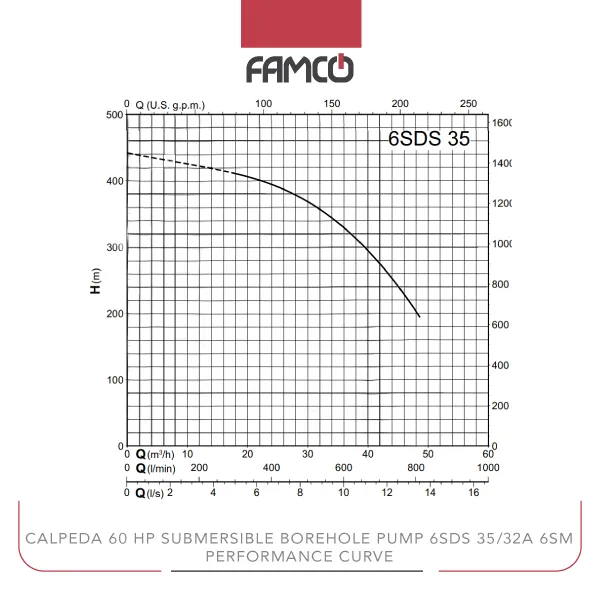

Calpeda 60 HP Submersible Borehole Pump 6SDS 35/32A 6SM Performance Data
| m³/h | 0 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 |
| l/min | 0 | 300 | 333 | 367 | 400 | 433 | 467 | 500 | 533 | 567 | 600 | 633 | 667 | 700 | 733 | 767 |
| head (m) | 442 | 411 | 407 | 401 | 395 | 387 | 379 | 369 | 357 | 344 | 330 | 313 | 295 | 275 | 253 | 229 |
Calpeda 60 HP Submersible Borehole Pump 6SDS 35/32A 6SM Applications
- Deep well water extraction
- Municipal water supply systems
- Industrial water transfer
- Agricultural irrigation
Calpeda 60 HP Submersible Borehole Pump 6SDS 35/32A 6SM Benefits
- High efficiency with 35 stages for deep water pumping
- Durable materials ensure long-lasting performance
- Suitable for water with sand content up to 100 g/m3
- Excellent waterproofing with IP 68 protection
Calpeda 60 HP Submersible Borehole Pump 6SDS 35/32A 6SM Price List
| No. | Name | Price |
| 1 | Calpeda 60 HP Submersible Borehole Pump 6SDS 35/32A 6SM Price | Contact us |
