Calpeda 60 HP Submersible Borehole Pump 6SDS 35/30A 6SM

45 kW (60 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Calpeda Pumps, Calpeda Submersible Pumps

Overview of Calpeda 60 HP Submersible Borehole Pump 6SDS 35/30A 6SM

The 6SDS 35/30A 6SM is used in locations that require huge volumes of liquid transfer tasks. Its 60 HP power output pumps up liquids to heights of 415-meters while the maximum flow rate is measured at 767 l/min. It features a powerful motor and high flow capacity, making it suitable for various industrial settings. Its ability to handle sand in water and operate at high heads ensures versatility and efficiency in demanding environments. The pump’s design emphasizes durability and performance, making it a reliable choice for continuous operation in water supply, irrigation, and industrial processes.

Calpeda 60 HP Submersible Borehole Pump 6SDS 35/30A 6SM Specifications

Made to industrial-grade standards, this Calpeda pump is designed to operate efficiently at a maximum liquid temperature of 25°C. It can handle water with up to 100 grams of sand per cubic meter, making it suitable for various water treatment and industrial applications. The motor features 2 poles and runs at approximately 2900 revolutions per minute, ensuring reliable performance. The Calpeda submersible pump 6SDS series 35/30A model supports a three-phase power supply of 400 V or 400/690 V, with a power output of 45 kilowatts or 60 horsepower. The pump can generate a maximum delivery head of 415 meters, providing high-pressure capabilities, and can achieve a maximum flow rate of 767 liters per minute, suitable for large-scale fluid transfer tasks.

Specification	Value
Liquid temperature	up to 25 °C
Maximum amount of sand in the water	100 g/m3
Number of poles	2
Frequency	50 Hz
Speed	≈ 2900 rpm
Three-phase voltage	400 V; 400/690 V
Power	45 kW
Power (HP)	60 HP
Max. delivery head	415 m
Max. flow rate	767 l/min

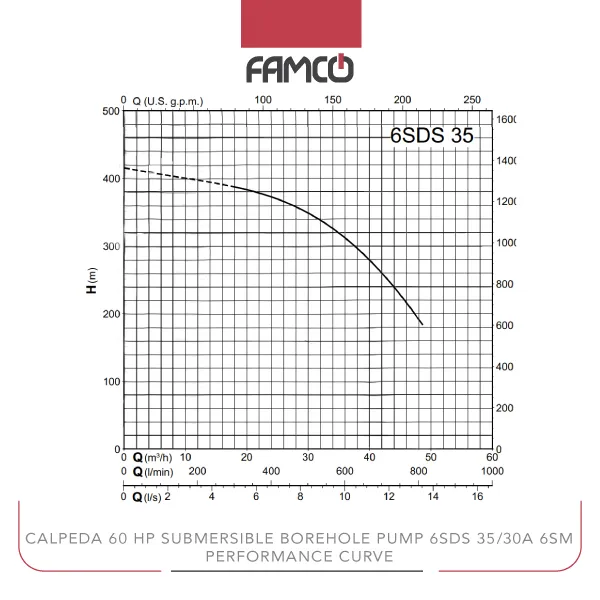

Calpeda 60 HP Submersible Borehole Pump 6SDS 35/30A 6SM Performance Data

m³/h	0	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46
l/min	0	300	333	367	400	433	467	500	533	567	600	633	667	700	733	767
head (m)	415	388	384	379	373	366	358	349	339	326	313	297	280	260	240	217

Calpeda 60 HP Submersible Borehole Pump 6SDS 35/30A 6SM Applications

Water treatment plants
Irrigation systems
Industrial fluid transfer
High-pressure water supply

Calpeda 60 HP Submersible Borehole Pump 6SDS 35/30A 6SM Benefits

Handles water with sand content up to 100 g/m3
High maximum flow rate of 767 l/min
Strong delivery head of 415 meters
Reliable operation with 45 kW power

Calpeda 60 HP Submersible Borehole Pump 6SDS 35/30A 6SM Price List

No.	Name	Price
1	Calpeda 60 HP Submersible Borehole Pump 6SDS 35/30A 96SM Price	Contact us

Brand	Calpeda
Applications	Industrial water transfer, Water Supply Connections, Water supply systems
Power (kW)	45
Power (HP)	60
Maximum Flow Rate (L/min)	767
Maximum Delivery Head (m)	415
