Calpeda 50 HP Submersible Borehole Pump 6SDS 35/24A 6SM Specifications
This industrial pump operates efficiently at a maximum liquid temperature of 25°C and can handle up to 100 grams of sand per cubic meter of water. It features a two-pole motor running at approximately 2900 RPM, suitable for 50 Hz power supply. The Calpeda submersible pump supports three-phase voltages of 400 V and 400/690 V, providing versatile power options. With a power output of 37 kW (50 HP), it delivers a maximum head of 333 meters and a flow rate of 767 liters per minute. The pump is designed for demanding applications, ensuring high performance and durability in various industrial settings. Its robust construction and high flow capacity make it ideal for water transfer, irrigation, and other heavy-duty tasks. The equipment’s ability to handle sand content and operate within specified temperature limits ensures reliability and longevity in challenging environments.
| Specification | Value |
| Liquid temperature | up to 25 °C |
| Maximum amount of sand in the water | 100 g/m3 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Speed (rpm) | ≈ 2900 |
| Three-phase voltage (V) | 400 V; 400/690 V |
| Power (kW) | 37 |
| Power (HP) | 50 |
| Max. delivery head (m) | 333 |
| Max. flow rate (l/min) | 767 |

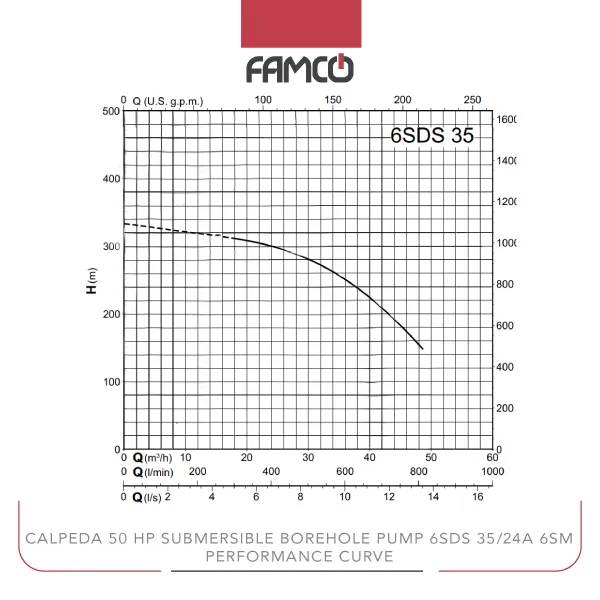

Calpeda 50 HP Submersible Borehole Pump 6SDS 35/24A 6SM Performance Data
| m³/h | 0 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 |
| l/min | 0 | 300 | 333 | 367 | 400 | 433 | 467 | 500 | 533 | 567 | 600 | 633 | 667 | 700 | 733 | 767 |
| head (m) | 333 | 312 | 309 | 305 | 300 | 295 | 289 | 281 | 273 | 263 | 251 | 239 | 224 | 209 | 192 | 174 |
Calpeda 50 HP Submersible Borehole Pump 6SDS 35/24A 6SM Applications
- Water transfer in industrial plants
- Irrigation systems for agriculture
- Municipal water supply projects
- Construction site water management
Calpeda 50 HP Submersible Borehole Pump 6SDS 35/24A 6SM Benefits
- High flow rate for efficient water transfer
- Durable construction for long-term use
- Handles sand content up to 100 g/m3
- Operates reliably at 25°C water temperature
Calpeda 50 HP Submersible Borehole Pump 6SDS 35/24A 6SM Price List
| No. | Name | Price |
| 1 | Calpeda 50 HP Submersible Borehole Pump 6SDS 35/24A 6SM Price | Contact us |
