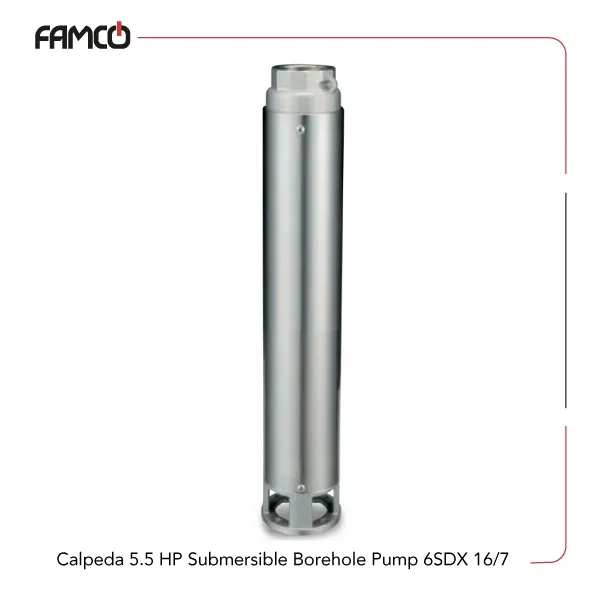

Calpeda 5.5 HP Submersible Borehole Pump 6SDX 16/7 Specifications
This product features a robust three-phase motor operating at 400 V or 400/690 V, with a power output of 4 kW (5.5 HP). It is designed to deliver a maximum head of 75 meters and can handle a flow rate of up to 383 liters per minute. The motor runs at approximately 2900 rpm, suitable for various demanding applications. It is capable of operating in water with a temperature of up to 30 °C and can tolerate water containing up to 50 grams of sand per cubic meter, making it ideal for environments with some debris. The 6SDX 16/7 Calpeda submersible pump you see here from the famous 6-inch 6SDX series has a two-pole motor and operates at a frequency of 50 Hz. It can be submerged to a maximum depth of 150 meters, ensuring versatility in different installation scenarios. Its protection rating of IP 68 guarantees excellent sealing against dust and water ingress, suitable for continuous outdoor or submerged use. Overall, this pump combines power, durability, and efficiency, making it suitable for industrial, agricultural, or water management applications where reliable performance is essential.
| Specification | Value |
| Three-phase voltage | 400 V; 400/690 V |
| Power | 4 kW |
| Power (HP) | 5.5 HP |
| Max. delivery head | 75 m |
| Max. flow rate | 383 l/min |
| Speed | ≈ 2900 rpm |
| Liquid temperature | 30 °C |
| Maximum amount of sand in water | 50 g/m3 |
| Number of poles | 2 |
| Frequency | 50 Hz |
| Max. immersion depth | 150 m |
| Protection | IP 68 |

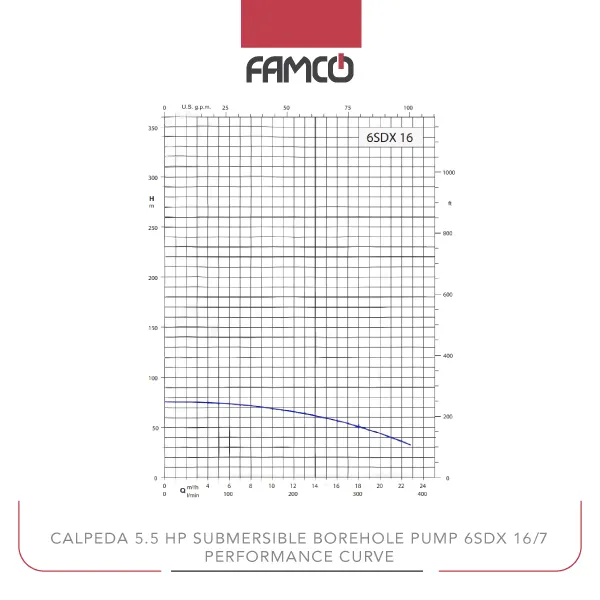

Calpeda 5.5 HP Submersible Borehole Pump 6SDX 16/7 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| head (m) | 75 | 75 | 74 | 70 | 66 | 59 | 51 | 40 | 32 |
Calpeda 5.5 HP Submersible Borehole Pump 6SDX 16/7 Applications
- Irrigation systems in agriculture
- Water supply for industrial facilities
- Drainage and flood control
- Water transfer in construction sites
Calpeda 5.5 HP Submersible Borehole Pump 6SDX 16/7 Benefits
- High durability with IP 68 protection rating
- Powerful motor for demanding tasks
- Capable of operating at significant depths
- Handles water with some sand content
Calpeda 5.5 HP Submersible Borehole Pump 6SDX 16/7 Price List
| No. | Name | Price |
| 1 | Calpeda 5.5 HP Submersible Borehole Pump 6SDX 16/7 Price | Contact us |
