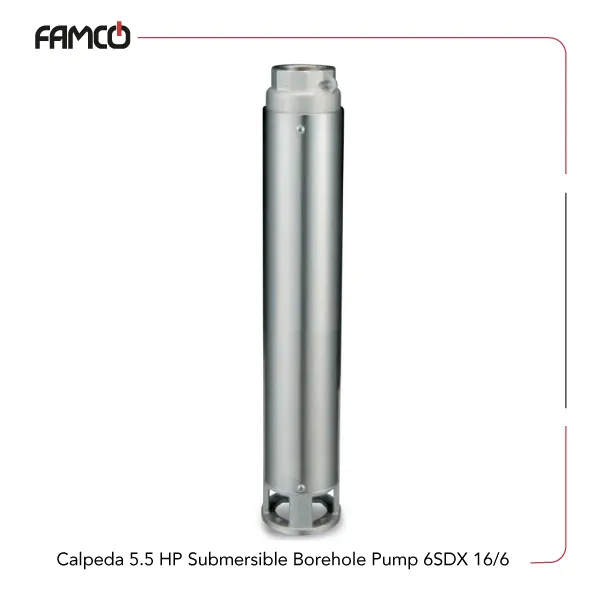

Calpeda 5.5 HP Submersible Borehole Pump 6SDX 16/6 Specifications
This Calpeda-manufactured borehole pump features a three-phase voltage of 400 V, with an option for 400/690 V, making it suitable for various industrial power systems. It operates at a power level of 4 kW, equivalent to 5.5 HP, providing robust performance for demanding tasks. The pump can deliver a maximum head of 64 meters, allowing it to lift water efficiently over significant heights. Its maximum flow rate reaches 383 liters per minute, ensuring quick and effective water movement. The motor runs at approximately 2900 RPM, which balances power and efficiency. Designed to handle water at a temperature of up to 30 °C, this Calpeda submersible pump can also manage water containing up to 50 grams of sand per cubic meter, making it suitable for environments with some particulate matter. The Calpeda pump is equipped with a two-pole motor desogm and operates at a frequency of 50 Hz, aligning with standard power supplies. It can be submerged to a depth of 150 meters, offering flexibility for various installation scenarios. The protection rating of IP 68 guarantees high resistance to dust and water ingress, most useful for operation in harsh conditions.
| Specification | Value |
| Three-phase voltage (V) | 400 V; 400/690 V |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Max. delivery head (m) | 64 |
| Max. flow rate (l/min) | 383 |
| Speed (rpm) | ≈ 2900 |
| Liquid temperature | 30 °C |
| Maximum amount of sand in water (g/m3) | 50 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Max. immersion depth (m) | 150 |
| Protection | IP 68 |

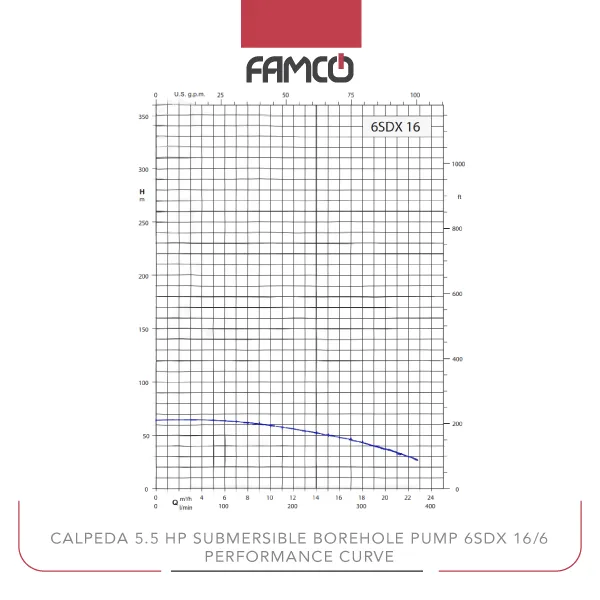

Calpeda 5.5 HP Submersible Borehole Pump 6SDX 16/6 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| head (m) | 64 | 64 | 63 | 60 | 56 | 50 | 43 | 34 | 27 |
Calpeda 5.5 HP Submersible Borehole Pump 6SDX 16/6 Applications
- Water supply systems
- Irrigation in agriculture
- Drainage and flood control
- Water treatment facilities
Calpeda 5.5 HP Submersible Borehole Pump 6SDX 16/6 Benefits
- High durability with IP 68 protection rating
- Capable of handling water with sand content
- Deep immersion capability up to 150 meters
- Efficient performance with high flow rate and head
