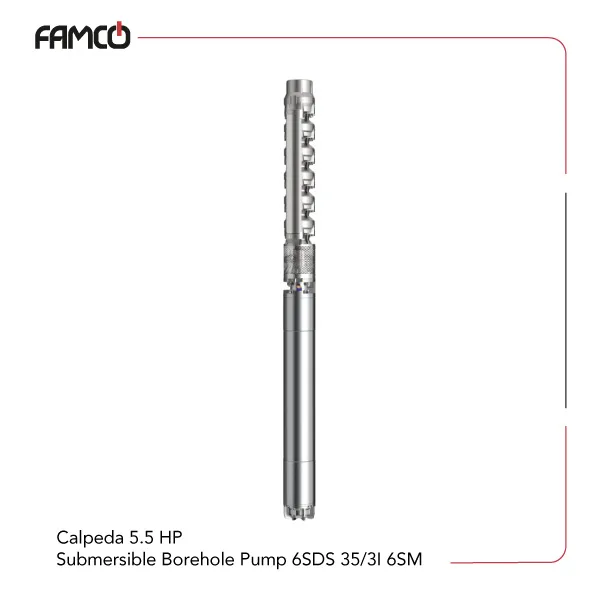

Calpeda 5.5 HP Submersible Borehole Pump 6SDS 35/3I 6SM Specifications
This pump is designed to operate efficiently at a maximum liquid temperature of 25°C. It can handle water with up to 100 grams of sand per cubic meter, making it suitable for various water applications that involve some level of sediment. The motor features 2 poles and runs at a speed of approximately 2900 revolutions per minute, ensuring reliable performance. It supports a three-phase power supply of 400 V or 400/690 V, providing flexibility for different electrical setups. The 6SAS series Calpeda submersible pump consumes 4 kilowatts of power, equivalent to 5.5 horsepower, making it a powerful option for demanding tasks. You can use a 6SM motor flange coupling with this line of Calpeda pumps. The 35/3I model can deliver water up to a maximum head of 40.2 meters and has a maximum flow rate of 767 liters per minute, making it suitable for high-volume water transfer or circulation systems. Its robust construction and specifications make it ideal for industrial, agricultural, or municipal water management applications, where durability and efficiency are essential.
| Specification | Value |
| Liquid temperature | up to 25 °C |
| Maximum amount of sand in water | 100 g/m3 |
| Number of poles | 2 |
| Frequency | 50 Hz |
| Speed | ≈ 2900 rpm |
| Three-phase voltage | 400 V; 400/690 V |
| Power | 4 kW |
| Power (HP) | 5.5 HP |
| Max. delivery head | 40.2 m |
| Max. flow rate | 767 l/min |

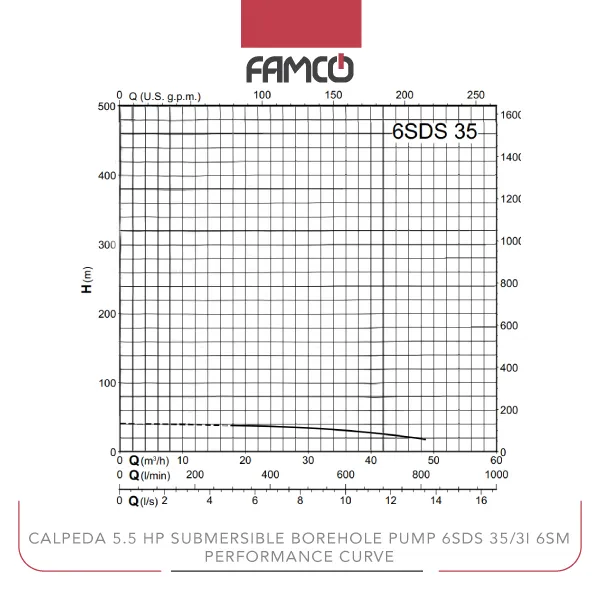

Calpeda 5.5 HP Submersible Borehole Pump 6SDS 35/3I 6SM Performance Data
| m³/h | 0 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 |
| l/min | 0 | 300 | 333 | 367 | 400 | 433 | 467 | 500 | 533 | 567 | 600 | 633 | 667 | 700 | 733 | 767 |
| head (m) | 40.2 | 37.6 | 37.3 | 36.8 | 36.3 | 35.6 | 34.8 | 33.9 | 32.9 | 31.7 | 30.3 | 28.8 | 27.1 | 25.2 | 23.1 | 20.8 |
Calpeda 5.5 HP Submersible Borehole Pump 6SDS 35/3I 6SM Applications
- Irrigation systems in agriculture
- Municipal water supply
- Industrial water circulation
- Wastewater management
Calpeda 5.5 HP Submersible Borehole Pump 6SDS 35/3I 6SM Benefits
- High flow rate for efficient water transfer
- Durable construction for long-term use
- Flexible electrical compatibility
- Capable of handling sediment in water
Calpeda 5.5 HP Submersible Borehole Pump 6SDS 35/3I 6SM Price List
| No. | Name | Price |
| 1 | Calpeda 5.5 HP Submersible Borehole Pump 6SDS 35/3I 6SM Price | Contact us |
