Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/60C Specifications
This pump operates efficiently with a single-phase voltage of 230V. It delivers a power output of 4 kW, equivalent to 5.5 HP, making it suitable for various demanding applications. The pump can generate a maximum head of 384 meters, allowing it to lift water over significant heights. Its maximum flow rate is 70 liters per minute, providing a steady and reliable water supply. The motor runs at a speed of 2900 RPM, ensuring consistent performance. It is designed to handle water temperatures up to 35°C and can tolerate water with a sand content of up to 50 grams per cubic meter, making it suitable for use in environments with some particulate matter. The Calpeda submersible pump features a two-pole motor and operates at a frequency of 50 Hz. Its insulation class is F, which offers good thermal resistance, and it has an IP 68 protection rating, making it highly resistant to dust and water ingress, suitable for outdoor or harsh environments.
| Specification | Value |
| single-phase voltage (V) | 230 |
| power (kW) | 4 |
| power (HP) | 5.5 |
| Max. delivery head (m) | 384 |
| max. flow rate (l/min) | 70 |
| speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in the water | 50 g/m3 |
| number of poles | 2 |
| frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

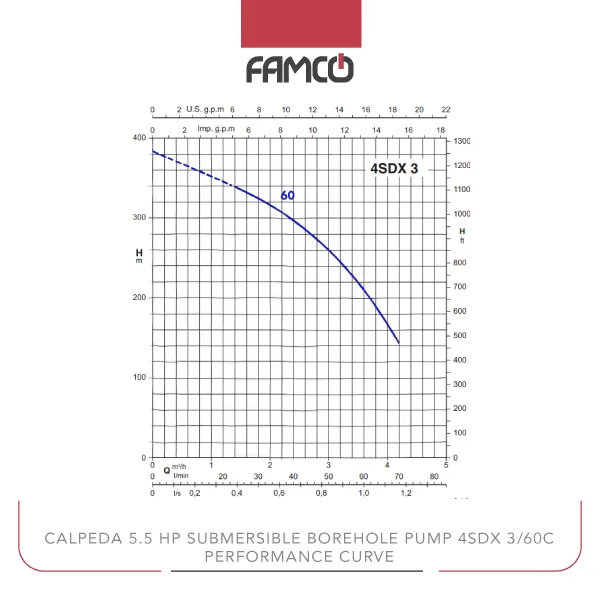

Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/60C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| head (m) | 384 | – | – | – | – | 336 | 325 | 312 | 297 | 280 | 260 | 210 | 143 |
Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/60C Applications
- Irrigation systems for farms and gardens
- Water supply for residential or industrial buildings
- Drainage and flood control projects
- Water transfer in construction sites
Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/60C Benefits
- High maximum head for lifting water over long distances
- Robust IP 68 protection for outdoor use
- Can handle water with sand content up to 50 g/m3
- Energy-efficient with a powerful 4 kW motor
Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/60C Price List
| No. | Name | Price |
| 1 | Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/60C Price | Contact us |
