Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/52C Specifications
Designed for high-head borehole applications, this pump reaches a delivery height of 334 m while maintaining a fixed flow rate of 70 l/min at 2900 rpm. Electrical operation is limited to single-phase 230 V with a 50 Hz supply, paired with a 2-pole motor rated at 4 kW. Insulation class F and IP 68 protection define its suitability for continuous submersion, provided the pumped liquid temperature does not exceed 35 °C and sand content remains within 50 g/m³. Within the Calpeda submersible pump range, the 4SDX 3/52C represents one of the highest head configurations without increasing flow capacity. This Calpeda submersible pump is typically selected where deep water lifting is required and single-phase power is the available electrical setup, making head performance the primary sizing parameter rather than volume.
| Specification | Value |
| Single-phase voltage (V) | 230 |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Max. delivery head (m) | 334 |
| Max. flow rate (l/min) | 70 |
| Speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in water (g/m3) | 50 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

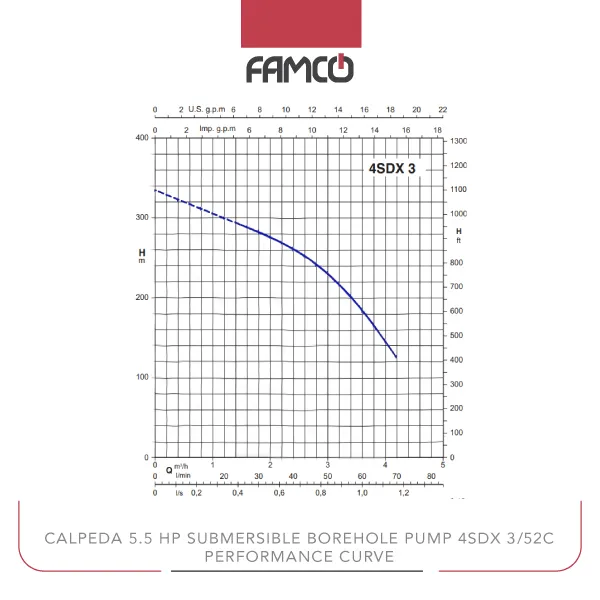

Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/52C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| head (m) | 334 | – | – | – | – | 291 | 282 | 272 | 261 | 247 | 230 | 184 | 124 |
Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/52C Applications
- Irrigation systems in agriculture
- Water transfer in industrial plants
- Fountain and water feature installations
- Drainage and flood control projects
Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/52C Benefits
- High maximum head for lifting water over long distances
- Durable design with IP 68 protection rating
- Flexible power options for different setups
- Can handle water with some sand content
Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/52C Price List
| No. | Name | Price |
| 1 | Calpeda 5.5 HP Submersible Borehole Pump 4SDX 3/52C Price | Contact us |
