Calpeda 40 HP Submersible Borehole Pump 6SDS 35/21A 6SM Specifications
The 6SDS 35/21A submersible pump from Calpeda is designed to operate efficiently with a maximum liquid temperature of 25°C. It can handle water with up to 100 grams of sand per cubic meter, making it suitable for various water conditions. The motor features 2 poles and runs at approximately 2900 RPM, ensuring reliable performance. It supports a three-phase power supply of 400V or 400/690V, with a power output of 30 kW (equivalent to 40 HP). The pump can achieve a maximum delivery head of 292 meters and a flow rate of 767 liters per minute, making the Calpeda submersible pump ideal for high-demand applications.
Its construction and high efficiency make it suitable for industrial and large-scale water transfer tasks, especially where sand and debris are present in the water. The motor’s specifications ensure smooth operation across different voltage levels, providing flexibility in various operational environments. Overall, this pump combines power, durability, and versatility to meet demanding water pumping needs in diverse settings.
| Specification | Value |
| Liquid temperature | up to 25 °C |
| Maximum amount of sand in the water | 100 g/m3 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Speed (rpm) | ≈ 2900 |
| Three-phase voltage (V) | 400 V; 400/690 V |
| Power (kW) | 30 |
| Power (HP) | 40 |
| Max. delivery head (m) | 292 |
| Max. flow rate (l/min) | 767 |

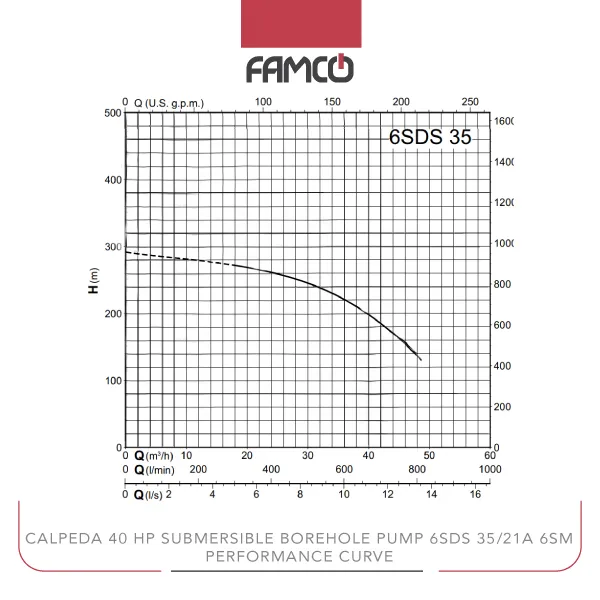

Calpeda 40 HP Submersible Borehole Pump 6SDS 35/21A 6SM Performance Data
| m³/h | 0 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 |
| l/min | 0 | 300 | 333 | 367 | 400 | 433 | 467 | 500 | 533 | 567 | 600 | 633 | 667 | 700 | 733 | 767 |
| head (m) | 292 | 272 | 269 | 266 | 262 | 257 | 252 | 246 | 239 | 231 | 221 | 211 | 199 | 185 | 171 | 154 |
Calpeda 40 HP Submersible Borehole Pump 6SDS 35/21A 6SM Applications
- Industrial water transfer
- Irrigation systems
- Water supply networks
- Construction site water management
Calpeda 40 HP Submersible Borehole Pump 6SDS 35/21A 6SM Benefits
- High flow rate for large volume transfer
- Strong maximum head for high-pressure needs
- Durable construction for tough environments
- Flexible voltage support for various setups
Calpeda 40 HP Submersible Borehole Pump 6SDS 35/21A 6SM Price List
| No. | Name | Price |
| 1 | Calpeda 40 HP Submersible Borehole Pump 6SDS 35/21A 6SM Price | Contact us |
