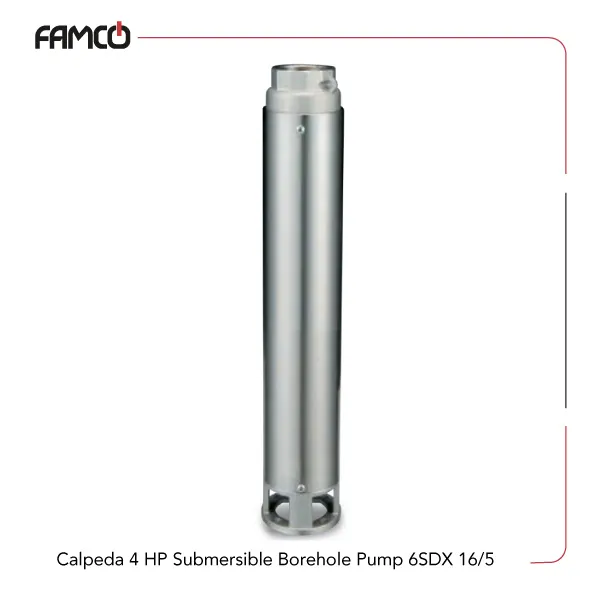

Calpeda 4 HP Submersible Borehole Pump 6SDX 16/5

Calpeda 4 HP Submersible Borehole Pump 6SDX 16/5 Specifications

This product features a three-phase power supply with voltages of 400 V and 690 V, making it suitable for various industrial applications. It operates at a power of 3 kW, equivalent to 4 HP, providing reliable performance for demanding tasks. The pump can deliver a maximum head of 53 meters and handle a flow rate of up to 383 liters per minute, making it efficient for water transfer and circulation. Its motor runs at approximately 2900 rpm, ensuring smooth operation. Designed to work with water temperatures up to 30 °C, it can also handle water with a sand content of up to 50 grams per cubic meter, suitable for environments with some particulate matter. The Calpeda submersible pump features a two-pole motor and operates at a frequency of 50 Hz. It can be submerged to a maximum depth of 150 meters, making it versatile for deep water applications. The IP 68 protection rating guarantees durability and resistance to dust and water ingress, ideal for harsh conditions and outdoor use.

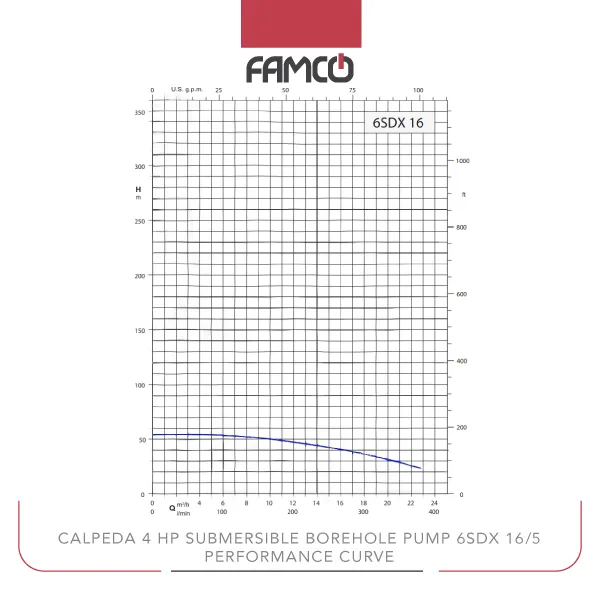

Calpeda 4 HP Submersible Borehole Pump 6SDX 16/5 Performance Data

Calpeda 4 HP Submersible Borehole Pump 6SDX 16/5 Applications

• Deep well water extraction
• Irrigation systems
• Industrial water transfer
• Flood control and drainage

Calpeda 4 HP Submersible Borehole Pump 6SDX 16/5 Benefits

• High durability with IP 68 protection rating
• Efficient performance with high flow and head capacity
• Suitable for deep water applications up to 150 meters
• Handles water with particulate matter up to 50 g/m3

Calpeda 4 HP Submersible Borehole Pump 6SDX 16/5 Price List
