Calpeda 4 HP Submersible Borehole Pump 4SDX 3/39C Specifications
This pump operates on a single-phase voltage of 230V or a three-phase system ranging from 230V to 400V. It delivers a power output of 3 kW, equivalent to 4 HP, making it suitable for various demanding applications. The pump can reach a maximum head of 251 meters, providing strong vertical lift capabilities. With a complete line of Calpeda submersible pumps, this model is exceptional with a maximum flow rate of 70 liters per minute. The motor runs at a speed of 2900 RPM, optimized for performance and durability. It is designed to handle water temperatures up to 35°C and can tolerate a maximum sand content of 50 grams per cubic meter, making it suitable for water with some impurities. The presented Calpeda submersible pump features a two-pole motor, operating at a frequency of 50 Hz. Its insulation class is F, indicating good thermal endurance, and it boasts an IP 68 protection rating, ensuring complete protection against dust and water ingress, suitable for outdoor or harsh environments.
| Specification | Value |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230-400 |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Max. delivery head (m) | 251 |
| Max. flow rate (l/min) | 70 |
| Speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in water (g/m3) | 50 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

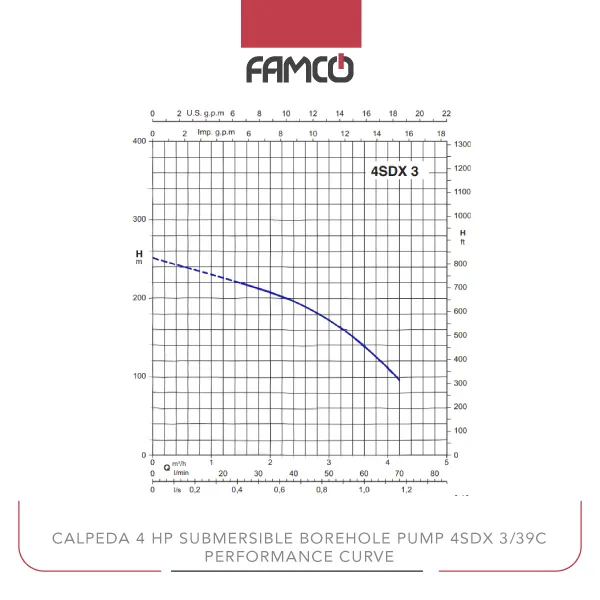

Calpeda 4 HP Submersible Borehole Pump 4SDX 3/39C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| head (m) | 251 | – | – | – | – | 250 | 242 | 234 | 224 | 213 | 199 | 162 | 110 |
Calpeda 4 HP Submersible Borehole Pump 4SDX 3/39C Applications
- Irrigation systems for farms and gardens
- Water supply for residential or commercial buildings
- Drainage and flood control projects
- Industrial water transfer and circulation
Calpeda 4 HP Submersible Borehole Pump 4SDX 3/39C Benefits
- High maximum head for efficient vertical lifting
- Flexible voltage options for various setups
- Durable IP 68 protection for outdoor use
- Can handle water with some sand content
Calpeda 4 HP Submersible Borehole Pump 4SDX 3/39C Price List
| No. | Name | Price |
| 1 | Calpeda 4 HP Submersible Borehole Pump 4SDX 3/39C Price | Contact us |
