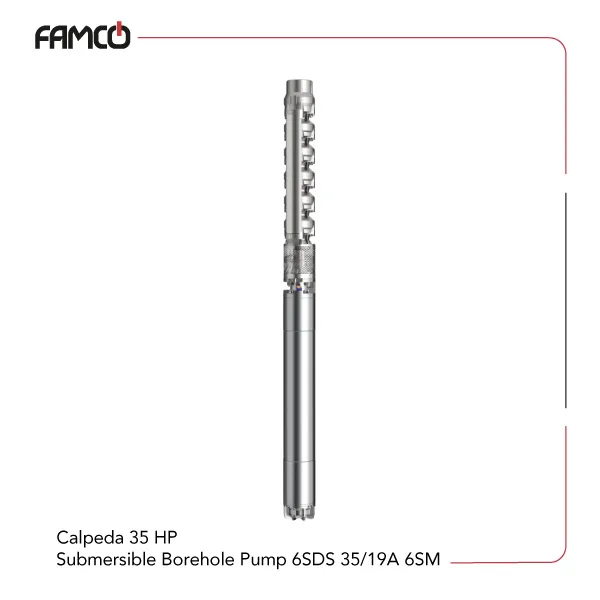

Calpeda 35 HP Submersible Borehole Pump 6SDS 35/19A 6SM Specifications
This pump is designed to operate efficiently at a maximum liquid temperature of 25°C. It can handle water with up to 100 grams of sand per cubic meter, making it suitable for various water systems with some particulate matter. The 2-pole motor at the hear of this Calpeda pump guarantees a high rotational speed of approximately 2900 RPM, which contributes to its powerful performance. It supports a 50 Hz frequency and is compatible with three-phase power supplies of 400 V or 400/690 V, providing flexibility for different electrical setups. The Calpeda submersible pump‘s motor delivers a substantial power output of 26 kW, equivalent to 35 horsepower, ensuring operation. It can generate a maximum delivery head of 264 meters, allowing it to lift water across significant heights. The maximum flow rate is 767 liters per minute, making it suitable for applications requiring high-volume water transfer. Overall, this pump combines durability, efficiency, and high performance, ideal for industrial and large-scale water management tasks.
| Specification | Value |
| Liquid temperature | up to 25 °C |
| Maximum amount of sand in the water | 100 g/m3 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Speed (rpm) | ≈ 2900 |
| Three-phase voltage (V) | 400 V; 400/690 V |
| Power (kW) | 26 |
| Power (HP) | 35 |
| Max. delivery head (m) | 264 |
| Max. flow rate (l/min) | 767 |
Calpeda 35 HP Submersible Borehole Pump 6SDS 35/19A 6SM Performance Data
| m³/h | 0 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 |
| l/min | 0 | 300 | 333 | 367 | 400 | 433 | 467 | 500 | 533 | 567 | 600 | 633 | 667 | 700 | 733 | 767 |
| head (m) | 264 | 247 | 245 | 242 | 239 | 235 | 229 | 223 | 216 | 208 | 199 | 189 | 178 | 166 | 153 | 139 |
Calpeda 35 HP Submersible Borehole Pump 6SDS 35/19A 6SM Applications
- Water treatment plants
- Irrigation systems
- Building water supply
- Industrial water transfer
Calpeda 35 HP Submersible Borehole Pump 6SDS 35/19A 6SM Benefits
- High flow rate for large-volume water transfer
- Robust motor with high power output
- Can handle water with some sand content
- Flexible voltage compatibility for various setups
Calpeda 35 HP Submersible Borehole Pump 6SDS 35/19A 6SM Price List
| No. | Name | Price |
| 1 | Calpeda 35 HP Submersible Borehole Pump 6SDS 35/19A 6SM Price | Contact us |
