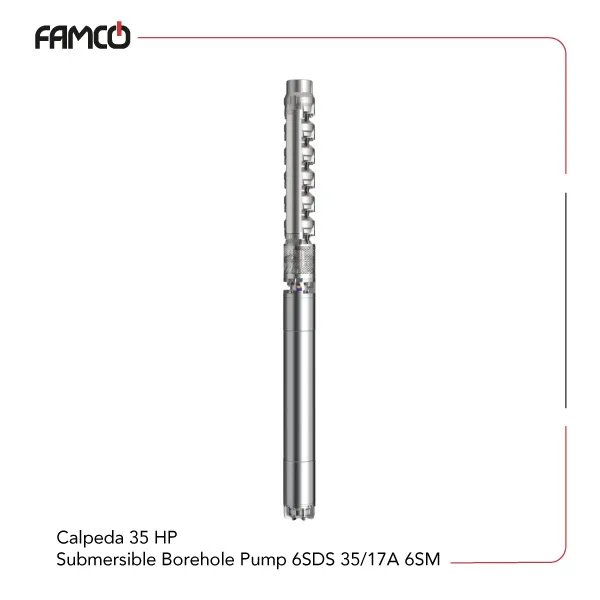

Calpeda 35 HP Submersible Borehole Pump 6SDS 35/17A 6SM Specifications
This high-performance submersible pump features a robust 25 kW (35 HP) motor with 35 stages, designed for demanding applications. It can operate at a maximum immersion depth of 150 meters and handle a flow rate of up to 767 liters per minute. The pump’s maximum head height reaches 237 meters, making it suitable for deep well pumping and other deep water extraction tasks. It runs on a 2-pole motor at 50 Hz frequency, compatible with three-phase power supplies of 400V or 690V. The 6SDS Calpeda submersible pumps are famously built with a durable cast iron impeller and a stainless steel motor shaft, ensuring longevity and resistance to corrosion. It can tolerate sand content up to 100 grams per cubic meter, making it ideal for environments with some particulate matter. The pump’s protection degree is IP 68, providing excellent sealing against dust and water ingress, suitable for continuous submersion and harsh conditions. Overall, this pump combines power, durability, and efficiency, making it suitable for industrial, municipal, or large-scale water management projects.
| Specification | Value |
| Power (kW) | 25 |
| Power (HP) | 35 |
| Number of stages | 35 |
| Max. immersion depth (m) | 150 |
| Max. flow rate (l/min) | 767 |
| Max. head height (m) | 237 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Sand content max. (g/m3) | 100 |
| Three-phase voltage (V) | 400, 400/690 |
| Protection degree | IP 68 |
| Impeller | Cast iron |
| Motor shaft | Stainless steel |

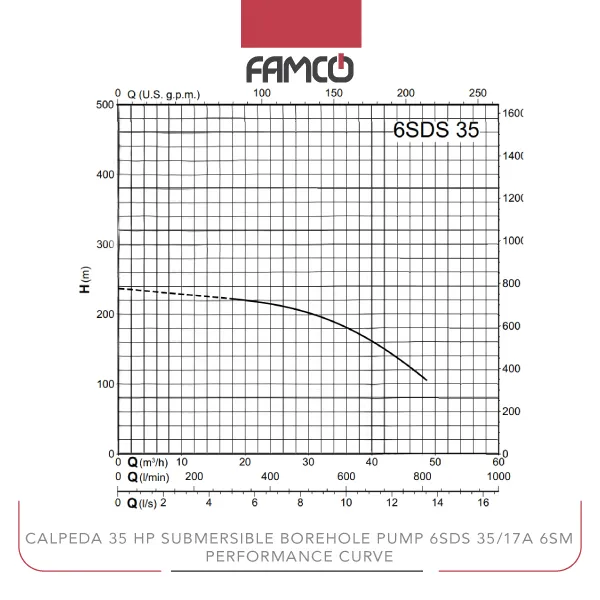

Calpeda 35 HP Submersible Borehole Pump 6SDS 35/17A 6SM Performance Data
| m³/h | 0 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 |
| l/min | 0 | 300 | 333 | 367 | 400 | 433 | 467 | 500 | 533 | 567 | 600 | 633 | 667 | 700 | 733 | 767 |
| head (m) | 237 | 223 | 221 | 218 | 215 | 212 | 208 | 203 | 197 | 190 | 182 | 172 | 162 | 151 | 138 | 125 |
Calpeda 35 HP Submersible Borehole Pump 6SDS 35/17A 6SM Applications
- Deep well water extraction
- Industrial water transfer
- Municipal water supply systems
- Large-scale irrigation projects
Calpeda 35 HP Submersible Borehole Pump 6SDS 35/17A 6SM Benefits
- High power and multiple stages for deep water pumping
- Durable cast iron impeller and stainless steel shaft
- Excellent sealing with IP 68 protection degree
- Capable of handling particulate matter up to 100 g/m3
Calpeda 35 HP Submersible Borehole Pump 6SDS 35/17A 6SM Price List
| No. | Name | Price |
| 1 | Calpeda 35 HP Submersible Borehole Pump 6SDS 35/17A 6SM Price | Contact us |
